62901 - Toro Gas Blower Vacuum (SN: 089000001 - 089999999) (1998) Engine Assembly Parts Diagram

Gas Blower Vacuum

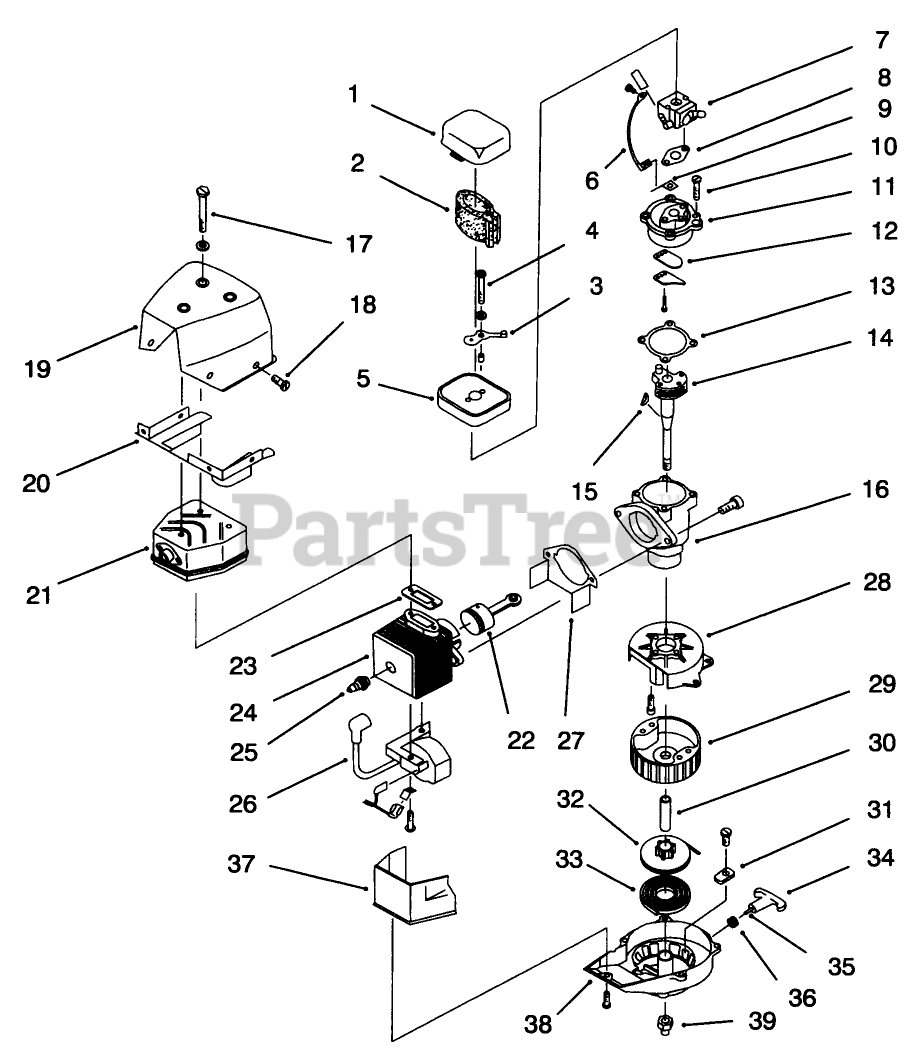

Engine Assembly Parts Diagram

  • Title

1

Toro 683378

AIR CLEANER COVER ASM

$

$

Not available

2

Toro 612111

DISCONTINUED

$

$

Not available

3

Toro 683380

CHOKE LEVER ASM

$

$

Not available

4

Toro 180351

DISCONTINUED

$

$

Not available

5

Toro 181512

BASE - AIR CLEANER

$

$

Not available

6

Toro 180360

LEAD - WIRE

$

$

Not available

7

Toro 180527

DISCONTINUED
(Superseded to 181621)

$

$

Not available

8

Toro 610675

CARB.GASKET

$7.49

$

In Stock, only 1 left!

0

9

Toro 611063

DISCONTINUED

$

$

Not available

10

Toro 683384

DISCONTINUE

$

$

Not available

11

Toro 684757

DISCONTINUED

$

$

Not available

12

Toro 147611

Reed Asm.

$

$

Currently unavailable

13

Toro 612115

DISCONTINUED

$

$

Not available

14

Toro 181510

ASSEMBLY - CRANK SHAFT

$

$

Not available

15

Toro 610676

FLYWHEEL KEY (10-PK)

$

$

Not available

16

Toro 181511

SERVICE ASM - CRANKCASE

$

$

Not available

17

Toro 147575

MUFFLER MTG BOLT ASM

$

$

Not available

18

Toro 181517

DISCONTINUED

$

$

Not available

19

Toro 181522

DISCONTINUED

$

$

Not available

20

Toro 181518

DISCONTINUED

$

$

Not available

21

Toro 181521

DISCONTINUED

$

$

Not available

22

Toro 684449

See Supercession: 753-04367
(Superseded to 753-04367)

$

$

Not available

23

Toro 610672

See Supercession: 180980
(Superseded to 180980)

$8.49

$

In Stock, only 1 left!

0

24

Toro 180063

See Supercession: 181622
(Superseded to 181622)

$

$

Not available

25

Toro 610311

SPARK PLUG

$5.49

$

In Stock, only 4 left!

0

26

Toro 683390

Module Asm.
(Superseded to 181937)

$

$

Not available

27

Toro 181519

GASKET - CYLINDER

$

$

Not available

28

Toro 153520

DISCONTINUED

$

$

Not available

29

Toro 180929

FLYWHEEL

$

$

Not available

30

Toro 181525

DISCONTINUED

$

$

Not available

31

Toro 682546

See Supercession: 153644
(Superseded to 153644)

$

$

Not available

32

Toro 683856

DISCONTINUED

$

$

Not available

33

Toro 613102

RECOIL SPRING

$

$

Not available

34

Toro 610300

See Supercession: 181079
(Superseded to 181079)

$

$

Not available

35

Toro 613103

DISCONTINUED

$

$

Not available

36

Toro 611061

DISCONTINUED

$

$

Not available

37

Toro 181585

DISCONTINUED

$

$

Not available

38

Toro 683600

See Supercession: 181931
(Superseded to 181931)

$

$

Not available

39

Toro 181524

DISCONTINUED

$

$

Not available

Toro 180530

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 181520

KIT - ENGINE GASKET

Note: Not illustrated

$

$

Not available

Toro 153308

See Supercession: 180602
(Superseded to 180602)

Note: Not illustrated

$

$

Not available

Toro 180090

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 181069

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 180091

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 682048

THROTTLE ADJ ASM

Note: Not illustrated

$

$

Not available

Toro 180092

ASM - THROTTLE ADJUSTMENT

Note: Not illustrated

$

$

Not available

Toro 180986

CAP SET - CARB LIMITER

Note: Not illustrated

$

$

Not available

Toro 181562

DISCONTINUED

Note: Not illustrated

$

$

Not available

Toro 610309

SEAL

Note: Not illustrated

$

$

Not available
