629101x85B - Murray 29" Snow Thrower (2006) Control Panel Parts Diagram

29" Snow Thrower

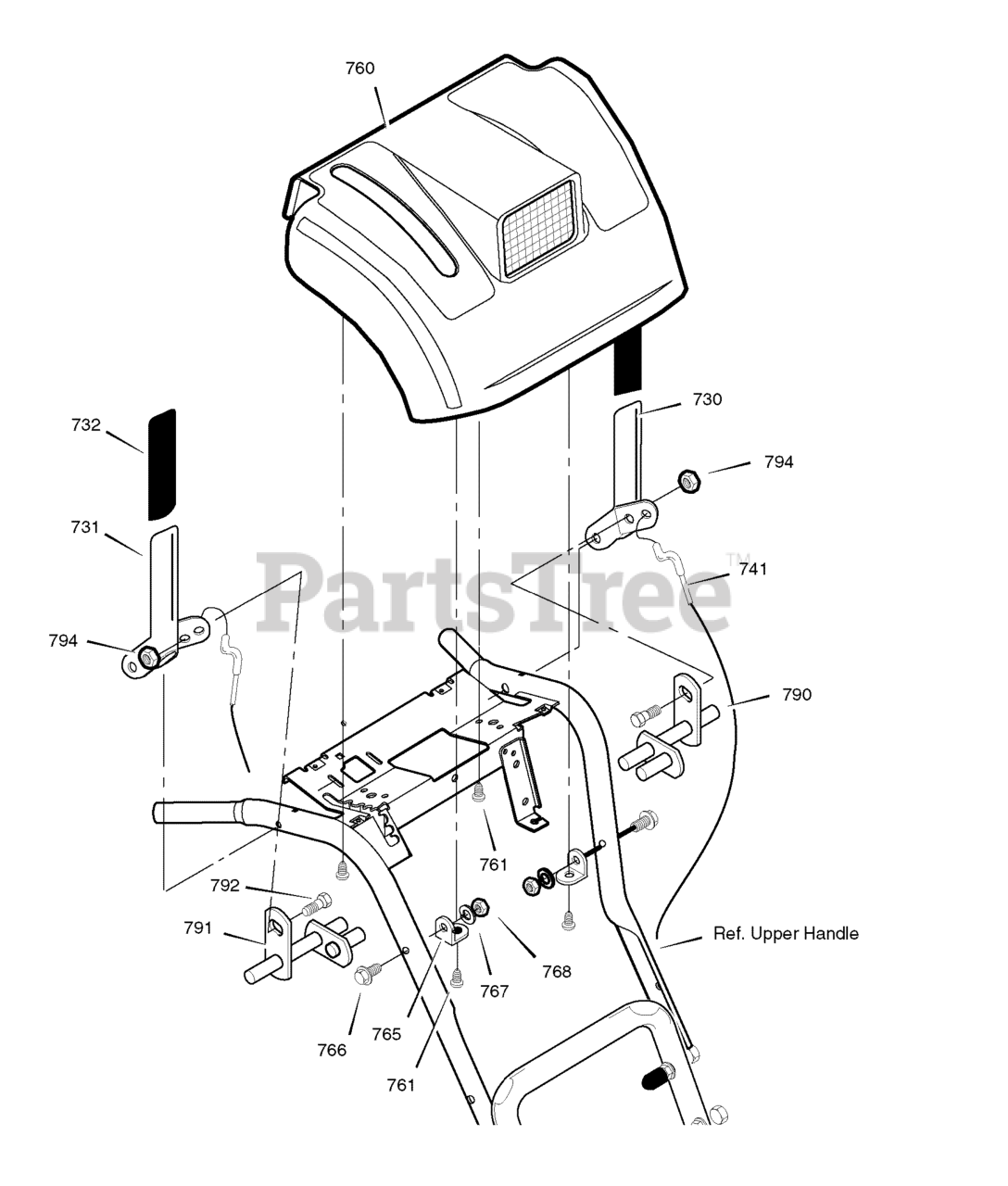

Control Panel Parts Diagram

  • Title

730

Murray 1501358E701MA

CLUTCH HANDLE LH

$168.99

$

Usually ships in 2-12 days

0

731

Murray 1501357E701MA

CLUTCH HANDLE RH

$161.99

$

In Stock, only 1 left!

0

732

Murray 337380MA

GRIP, CLUTCH LEVER

$8.99

$

In Stock, only 2 left!

0

741

Murray 1501452MA

CABLE,FR-DR P5 5-13B

$17.99

$

Usually ships in 2-12 days

0

760

Murray 1501653MA

PANEL, CONTROL

$239.99

$

Usually ships in 2-12 days

0

761

Murray 316042MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

765

Murray 578866E717MA

BRACKET, PANEL

$10.99

$

Usually ships in 2-12 days

0

766

Murray 302900MA

SCREW, 5/16-18 X 1.75
(Superseded to 5025011X14)

$3.99

$

In Stock, Qty 17

0

767

Murray 71060MA

WASHER
(Superseded to 5025170SM)

$4.49

$

In Stock, only 1 left!

0

768

Murray 15X144MA

NUT, 5/16-18
(Superseded to 7091511SM)

$3.49

$

In Stock, Qty 6

0

790

Murray 578924E701MA

ROD ASSEMBLY RH

$75.99

$

In Stock, only 1 left!

0

791

Murray 578926MA

ROD ASSEMBLY LH
(Superseded to 578927MA)

$80.99

$

Usually ships in 2-12 days

0

792

Murray 905531MA

BOLT, 1/4-20 X 0.50

$3.49

$

Usually ships in 2-12 days

0

794

Murray 908913MA

NUT, 1/4-20

$3.99

$

Usually ships in 2-12 days

0
