629104x89D - Yard King 29" Snow Thrower (2002) Remote Control Parts Diagram

29" Snow Thrower

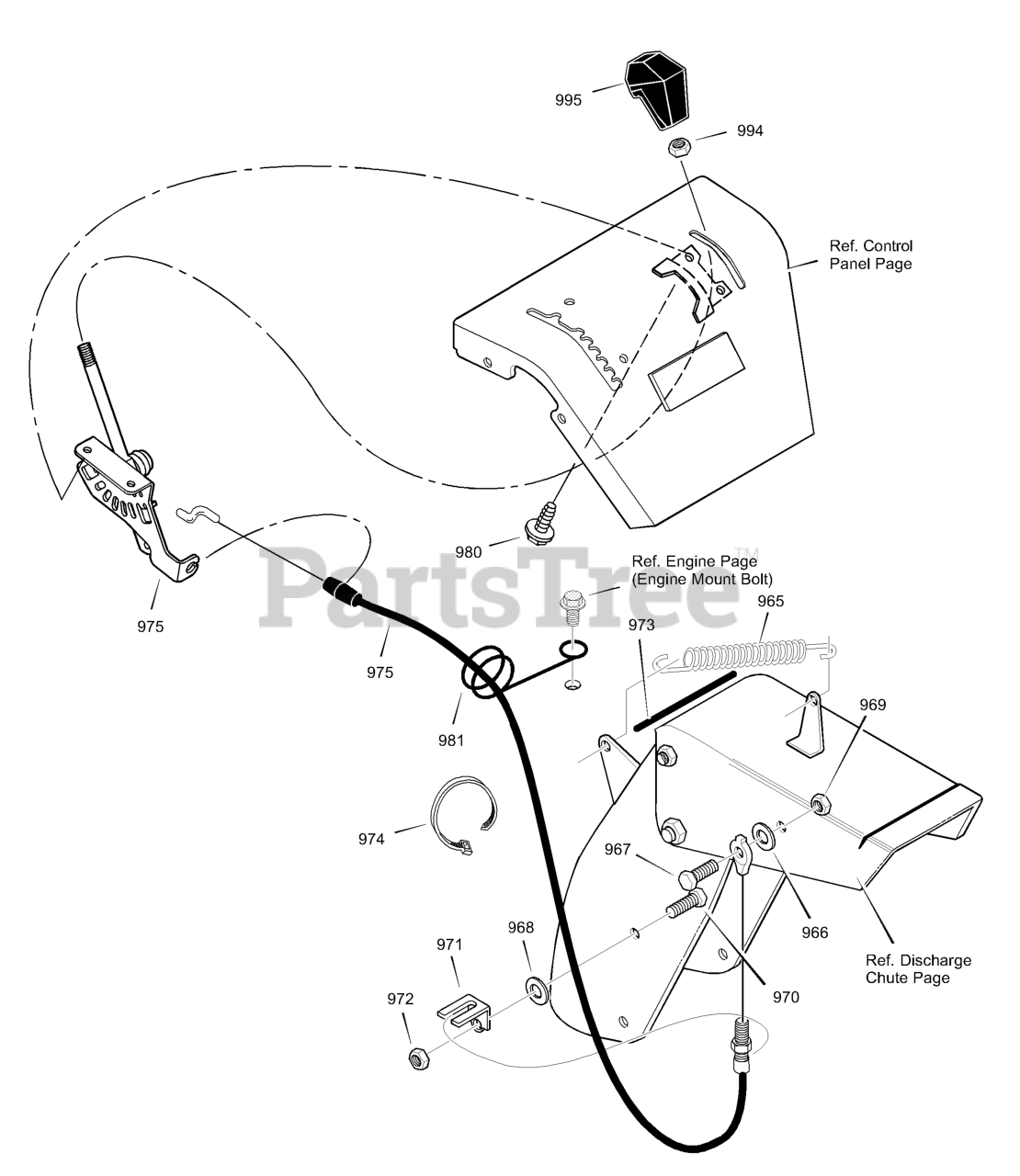

Remote Control Parts Diagram

  • Title

965

Murray 318468MA

TENSION SPRING

$8.49

$

Usually ships in 2-12 days

0

966

Murray 711666

FLATWASHER

$

$

Not available

967

Murray 310088MA

BOLT

$4.99

$

Usually ships in 2-12 days

0

968

Murray 73787MA

FLATWASHER

$6.99

$

Usually ships in 2-12 days

0

969

Murray 302635

NUT

$4.99

$

Usually ships in 2-12 days

0

970

Murray 313676

SCREW

$1.49

$

Usually ships in 2-12 days

0

971

Murray 306447 YZ

BRACKET, CABLE CHUTE

$15.99

$

Usually ships in 2-12 days

0

972

Murray 71391

NUT
(Superseded to 1101253MA)

$22.99

$

Usually ships in 2-12 days

0

973

Murray 095105

TRIM STRIP, GREY

$46.99

$

Usually ships in 2-12 days

0

974

Murray 760113MA

TIE, CABLE

$5.49

$

Usually ships in 2-12 days

0

975

Murray 1501393MA

ASSY, CHUTE DEF. CONTROL

$

$

Not available

980

Murray 760858MA

SCREW
(Superseded to 703583)

$4.99

$

Usually ships in 2-12 days

0

981

Murray 780220MA

WIRE FORM, REMOTE CHUTE CABLE

$6.99

$

Usually ships in 2-12 days

0

994

Murray 71045

NUT

$

$

Not available

995

Murray 304728MA

KNOB, SHIFT (GREY)

$12.99

$

Usually ships in 2-12 days

0
