629109x31B - Scotts 29" Snow Thrower (2001) Wheels Parts Diagram

29" Snow Thrower

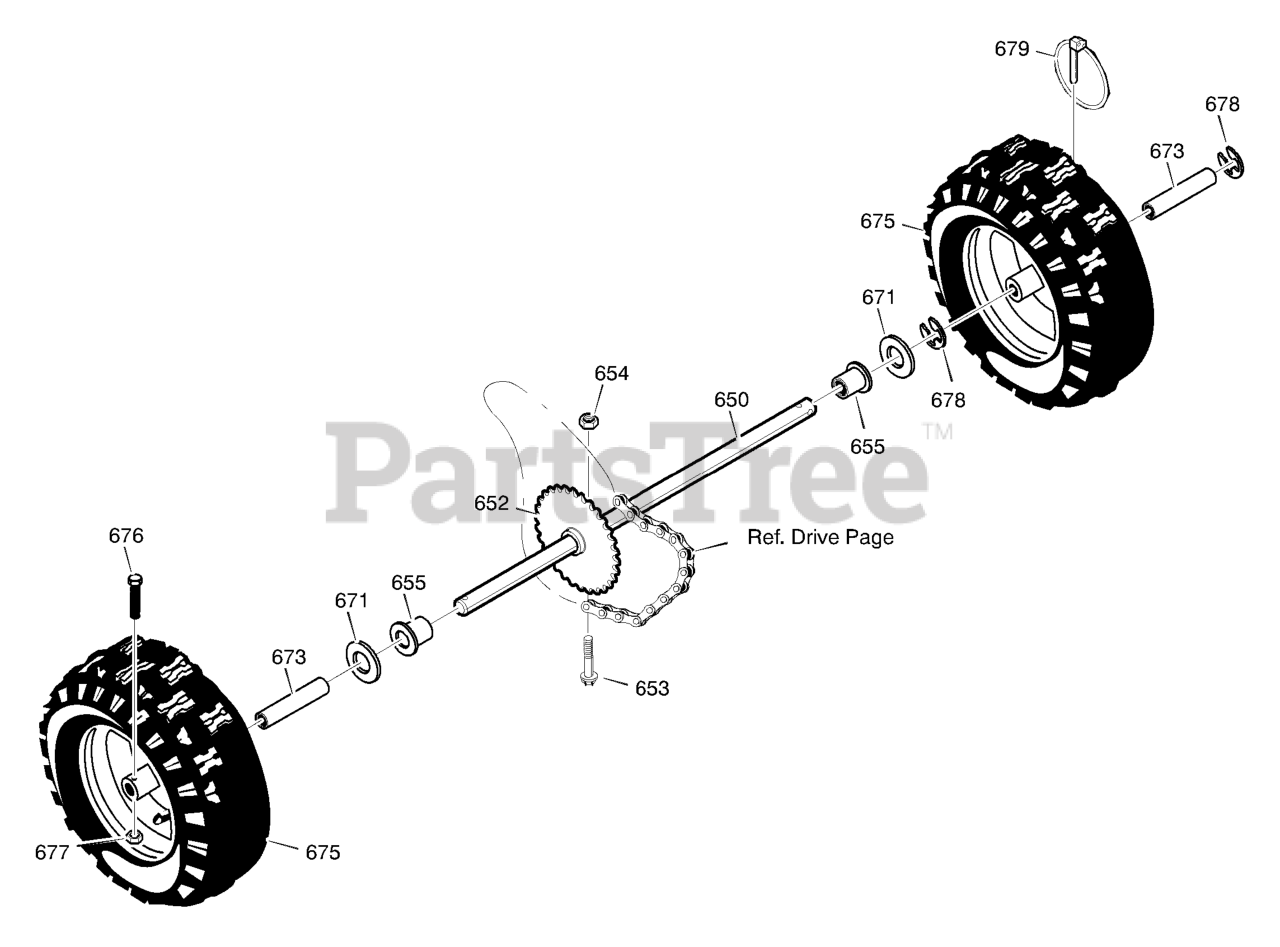

Wheels Parts Diagram

  • Title
650

Murray 1501104MA

SHAFT, AXLE

$

$

Not available

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

Usually ships in 2-12 days

0

653

Murray 01X186MA

SCREW, 1/4-20X2.25

$4.49

$

Usually ships in 2-12 days

0

654

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

655

Murray 1501114MA

BEARING, AXLE

$11.99

$

In Stock, only 4 left!

0

671

Murray 712120MA

FLATWASHER

$4.99

$

In Stock, only 2 left!

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 584535MA

TIRE & RIM

$133.99

$

Usually ships in 2-12 days

0

676

Murray 577015MA

SCREW, 1/4-20X1.75 HH

$4.99

$

In Stock, Qty 9

0

677

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

679

Murray 73842MA

PIN, KLIK .25 X 1.38 DIA
(Superseded to 500016MA)

$15.99

$

In Stock, only 3 left!

0
