62911 - Toro Lawn Vacuum, 5hp (SN: 004000001 - 004999999) (1974) ENGINE AND BASE ASSEMBLY (MODEL 62922) Parts Diagram

Lawn Vacuum, 5hp

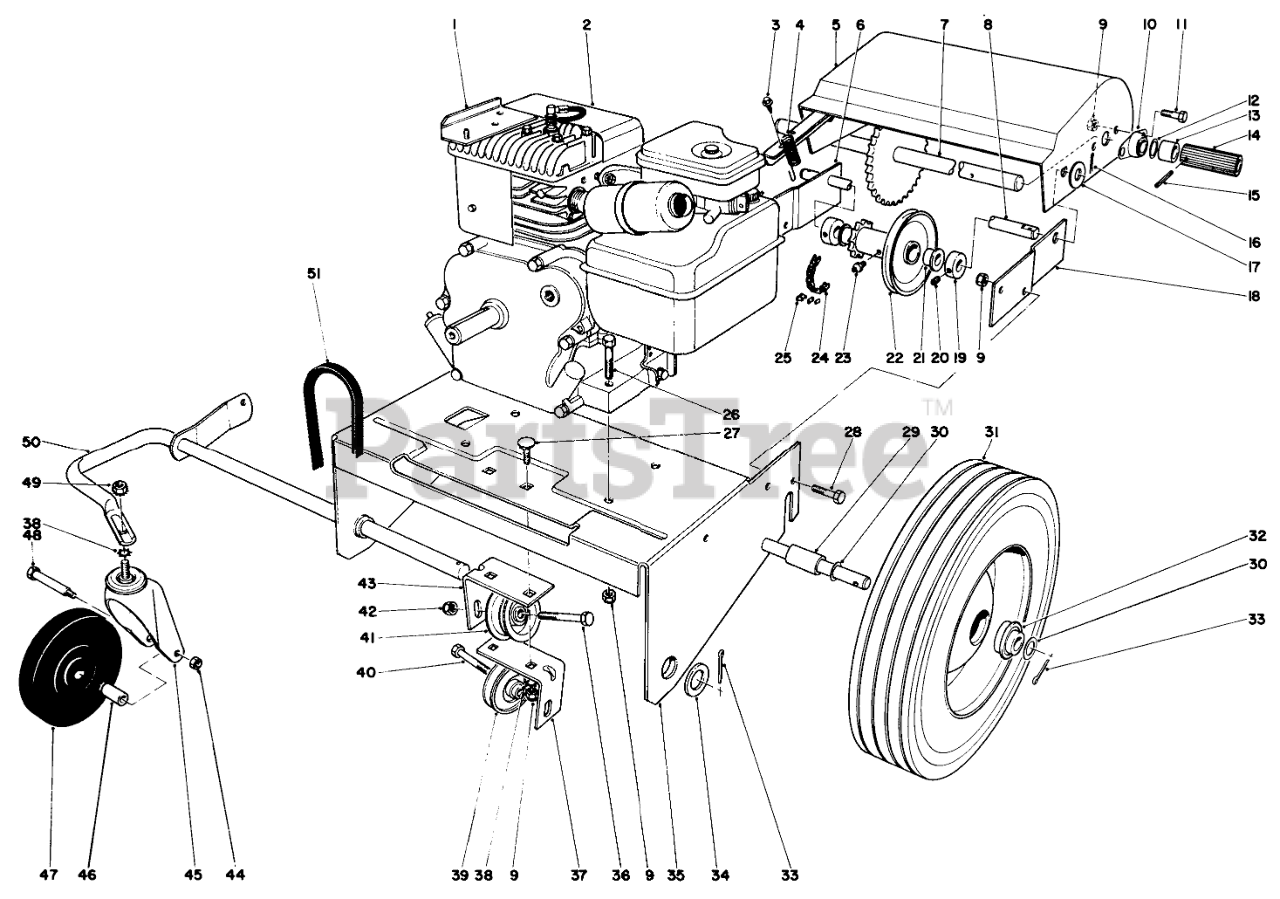

ENGINE AND BASE ASSEMBLY (MODEL 62922) Parts Diagram

  • Title

1

Toro 20-5540

MOUNTING BRKT WA

$

$

Not available

2

Toro 221-461

Engine

$

$

Currently unavailable

3

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0

4

Toro 20-6910

Spring, Traction

$

$

Currently unavailable

5

Toro 20-6040

GUARD WA
(Superseded to 93-8461-03)

$

$

Not available

6

Toro 20-5970

Mounting Bracket
(Superseded to 43-6830-03)

$29.99

$

Usually ships in 3-6 days

0

7

Toro 20-7270

SHAFT-WHEEL, FRICTION

$281.99

$

Usually ships in 3-6 days

0

8

Toro 20-5870

SHAFT-IDLER

$126.99

$

Usually ships in 3-6 days

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

10

Toro 256-236

BEARING-MOUNT, FLANGE

$28.99

$

Usually ships in 3-6 days

0

11

Toro 322-2

SCREW-HH

$2.49

$

In Stock, Qty 20+

0

12

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

13

Toro 20-5460

SPACER

$24.99

$

Usually ships in 3-6 days

0

14

Toro 20-5960

WHEEL-FRICTION

$52.99

$

Usually ships in 3-6 days

0

15

Toro 32121-4

PIN-ROLL, SLOTTED

$3.99

$

Usually ships in 3-6 days

0

16

Toro 3272-7

PIN-COTTER

$1.49

$

In Stock, Qty 14

0

17

Toro 3256-26

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

18

Toro 20-6580

Mounting Bracket
(Superseded to 43-6830-03)

$29.99

$

Usually ships in 3-6 days

0

19

Toro 20-5950

COLLAR

$40.99

$

Usually ships in 3-6 days

0

20

Toro 3245-1

SCREW-SET, HSH

$1.99

$

In Stock, Qty 5

0

21

Toro 256-105

BUSHING-FLANGE

$

$

Not available

22

Toro 20-6000

Idler (Incl. Nos. 21 & 23)

$

$

Not available

23

Toro 302-5

FITTING-GREASE

$3.49

$

In Stock, Qty 10

0

24

Toro 20-6530

Chain Traction
(Superseded to 3-3434)

$61.99

$

Usually ships in 3-6 days

0

25

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

26

Toro 322-7

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

27

Toro 3230-16

SCREW-CARR

$2.99

$

In Stock, Qty 20+

0

28

Toro 322-4

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

29

Toro 20-5410

SPACER-AXLE

$31.99

$

Usually ships in 3-6 days

0

30

Toro 7-3590

WASHER

$2.99

$

In Stock, only 1 left!

0

31

Toro 20-6100

Wheel (Incl. No. 32)

$162.99

$

Usually ships in 3-6 days

0

32

Toro 251-258

BEARING

$64.99

$

Usually ships in 3-6 days

0

33

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

34

Toro 3256-29

WASHER-FLAT

$2.99

$

In Stock, Qty 6

0

35

Toro 20-5560

Engine Plate
(Superseded to 20-5560-03)

$

$

Not available

36

Toro 323-19

SCREW-HH

$1.99

$

In Stock, Qty 11

0

37

Toro 20-8690

Bracket-Idler Mount L.H.
(Superseded to 20-8690-03)

$

$

Not available

38

Toro 3255-9

WASHER-LOCK

$0.99

$

Usually ships in 3-6 days

0

39

Toro 12-5820

PULLEY-IDLER

$30.99

$

In Stock, Qty 8

0

40

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 7

0

41

Toro 12-6700

PULLEY-IDLER

$30.99

$

In Stock, only 1 left!

0

42

Toro 3296-39

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

43

Toro 20-8680

Bracket-Idler Mount R.H.
(Superseded to 20-8680-03)

$

$

Not available

44

Toro 242-58

Nut

$

$

Not available

45

Toro 242-56

Horn

$

$

Currently unavailable

46

Toro 242-59

Wheel Bushing

$

$

Currently unavailable

47

Toro 241-120

Wheel

$

$

Not available

48

Toro 242-57

Axle

$

$

Not available

49

Toro 32149-4

Nut

$

$

Currently unavailable

50

Toro 20-5710

Front Wheel Support

$

$

Currently unavailable

51

Toro 20-5990

BELT-V

$31.99

$

Usually ships in 3-6 days

0

Toro 20-5850

Caster Wheel Assembly (Incl. Ref. Nos. 44-48)

Note: Not illustrated

$

$

Currently unavailable

Hitch Kit (Model 59087)

Note: Not illustrated

$

$

Not available

Flap Kit (Model 59086)

Note: Not illustrated

$

$

Not available

Toro 20-6630

Loose Parts Bag Assembly

Note: Not illustrated

$

$

Currently unavailable
