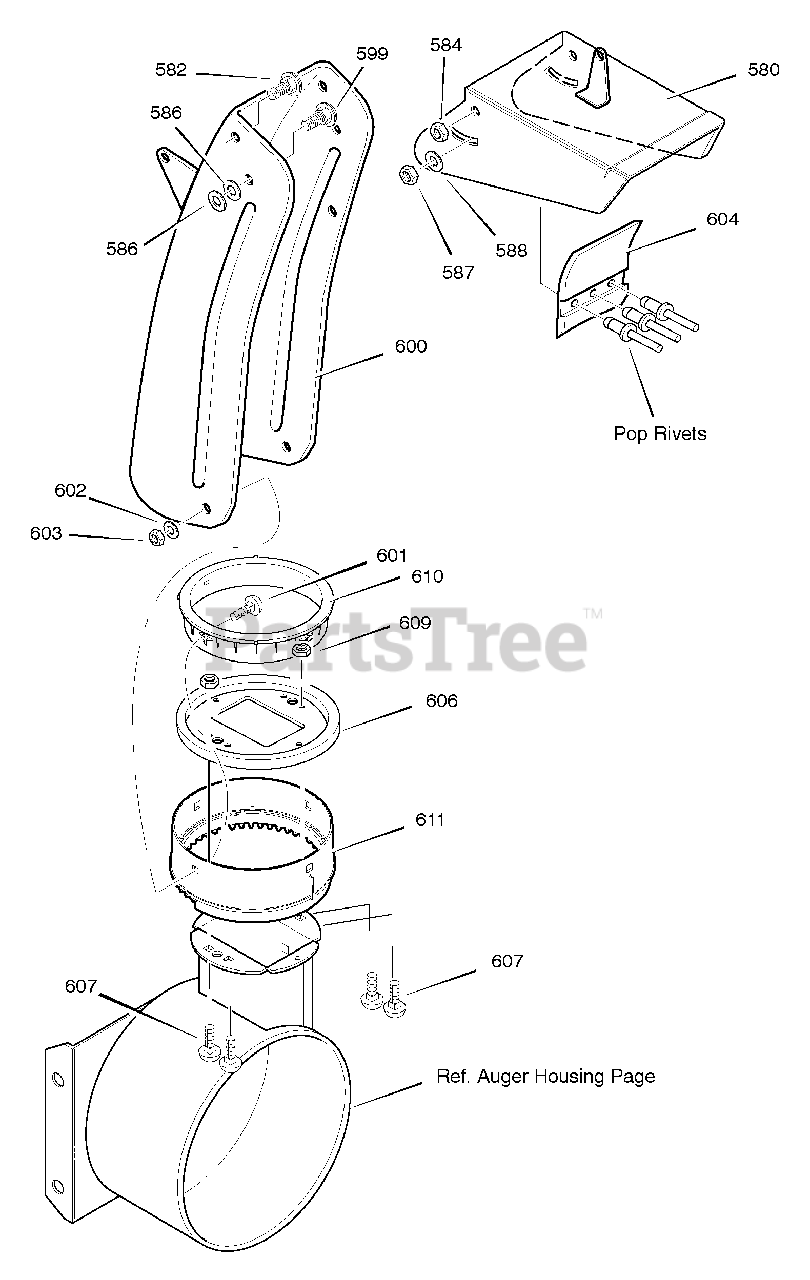

629111x31A - Scotts 29" Snow Thrower (2005) Discharge Chute Parts Diagram

29" Snow Thrower

Discharge Chute Parts Diagram

  • Title
580

Murray 761168E717

CHUTE, UPPER W/REMOTE

$

$

Not available

582

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

584

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

586

Murray 6711MA

WASHER, PLASTIC

$3.99

$

Usually ships in 2-12 days

0

587

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

588

Murray 12021

WASHER, PLASTIC
(Superseded to 12021MA)

$3.99

$

In Stock, only 4 left!

0

599

Murray 578088MA

SCREW, 5/16-18 x 0.75

$4.99

$

In Stock, only 1 left!

0

600

Murray 761169E717

CHUTE, LOWER W/REMOTE

$

$

Not available

601

$

$

Not available

602

Murray 71071

WASHER, FLAT
(Superseded to 703350)

$4.49

$

In Stock, Qty 5

0

603

Murray 71038

NUT
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

604

$6.49

$

Usually ships in 2-12 days

0

606

Murray 1501932 YZ

CHUTE COLLAR
(Superseded to 1501932YZMA)

$28.99

$

In Stock, only 1 left!

0

607

Murray 02X101MA

BOLT
(Superseded to 703440)

$3.99

$

In Stock, Qty 8

0

609

Murray 15X145MA

NUT
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

610

Murray 337227MA

RETAINER, RING INNER

$17.99

$

In Stock, Qty 20+

0

611

Murray 1501282MA

RETAINER, RING OUTER

$26.99

$

In Stock, only 3 left!

0
