629113x85A - Murray 29" Snow Thrower (2005) Wheel Assembly Parts Diagram

29" Snow Thrower

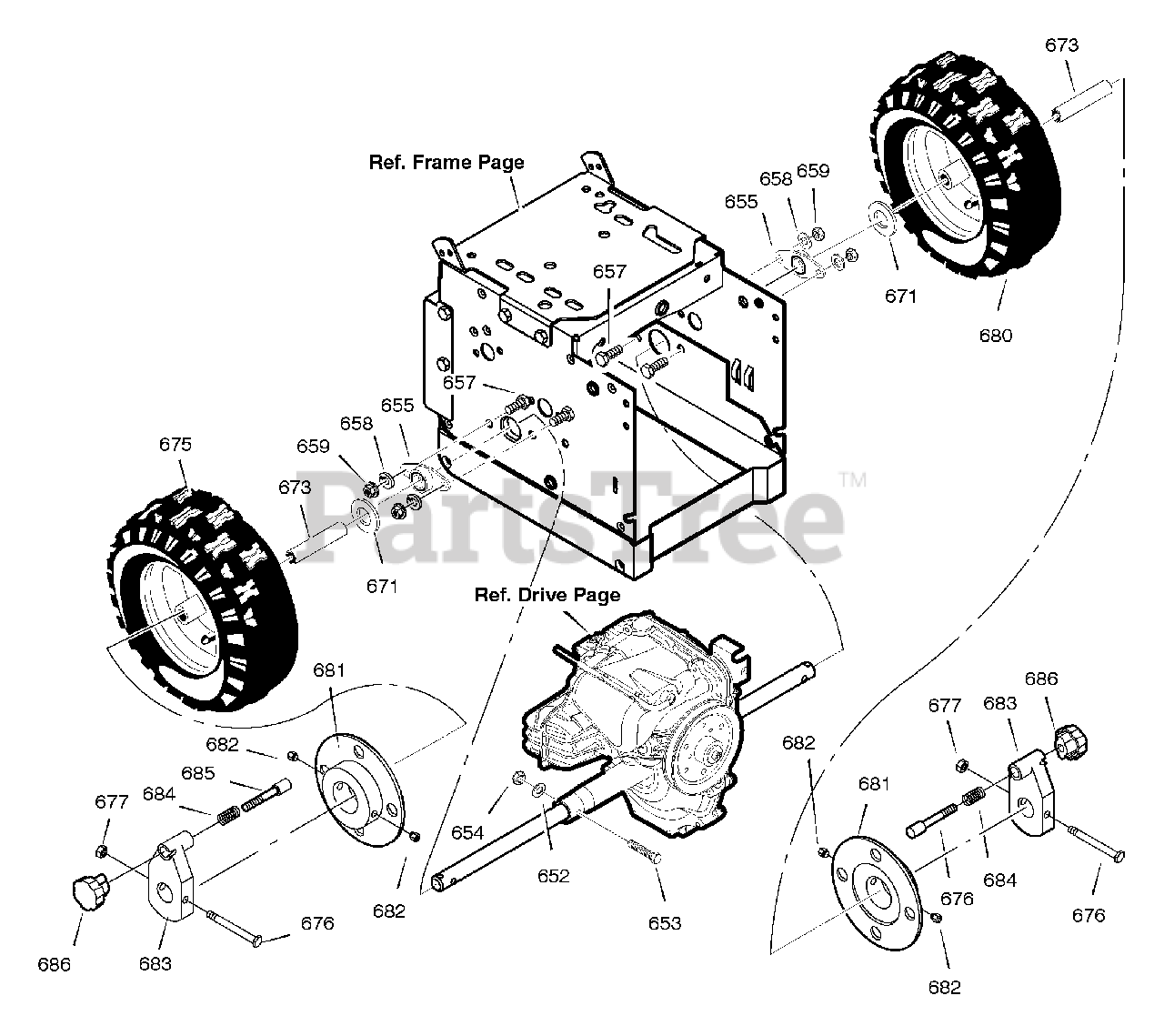

Wheel Assembly Parts Diagram

  • Title

652

Murray 003943

SPACER, SLEEVE

$7.49

$

In Stock, only 2 left!

0

653

Murray 01X193MA

SCREW, 1/4-20X1.75
(Superseded to 704212)

$5.99

$

In Stock, Qty 6

0

654

Murray 15X116MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

655

Murray 53266MA

BEARING & RETAINER ASSY

$49.99

$

Usually ships in 2-12 days

0

657

Murray 71003

SCREW, 3/8-16 x .75

$

$

Not available

658

Murray 71062

WASHER, SPLTLK

$

$

Not available

659

Murray 71044

NUT, 3/8-163

$3.49

$

Usually ships in 2-12 days

0

671

Murray 017X83MA

WASHER, FLAT
(Superseded to 712120MA)

$5.49

$

In Stock, Qty 16

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 1501818MA

TIRE & RIM, RIGHT
(Superseded to 1736413YP)

$197.99

$

Usually ships in 2-12 days

0

676

Murray 73839MA

SCREW, 1/4-20 X 2.25

$5.99

$

In Stock, Qty 20+

0

677

Murray 15X145MA

NUT, 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

680

Murray 1501817MA

TIRE & RIM, LEFT

$169.99

$

Usually ships in 2-12 days

0

681

Murray 1501032EMA

DISC, WHEEL

$34.99

$

Usually ships in 2-12 days

0

682

Murray 2001066MA

SCREW

$5.99

$

In Stock, Qty 13

0

683

Murray 1501930MA

HUB, WHEEL LOCK

$100.99

$

In Stock, only 3 left!

0

684

Murray 164X34MA

SPRING

Note: (Included with Ref. No. 683)

$6.49

$

In Stock, only 2 left!

0

685

Murray 1501856 YZ

PIN, LOCK
(Superseded to 1501856YZMA)

Note: (Included with Ref. No. 683)

$16.99

$

In Stock, only 2 left!

0

686

Murray 1501855MA

KNOB

Note: (Included with Ref. No. 683)

$14.99

$

In Stock, only 2 left!

0

--

Murray 48X5600

DECAL
(Superseded to 48X5600MA)

Note: (Included with Ref. No. 683)

$15.99

$

Usually ships in 2-12 days

0
