629114x85A - Murray 29" Snow Thrower (2002) Frame Parts Diagram

29" Snow Thrower

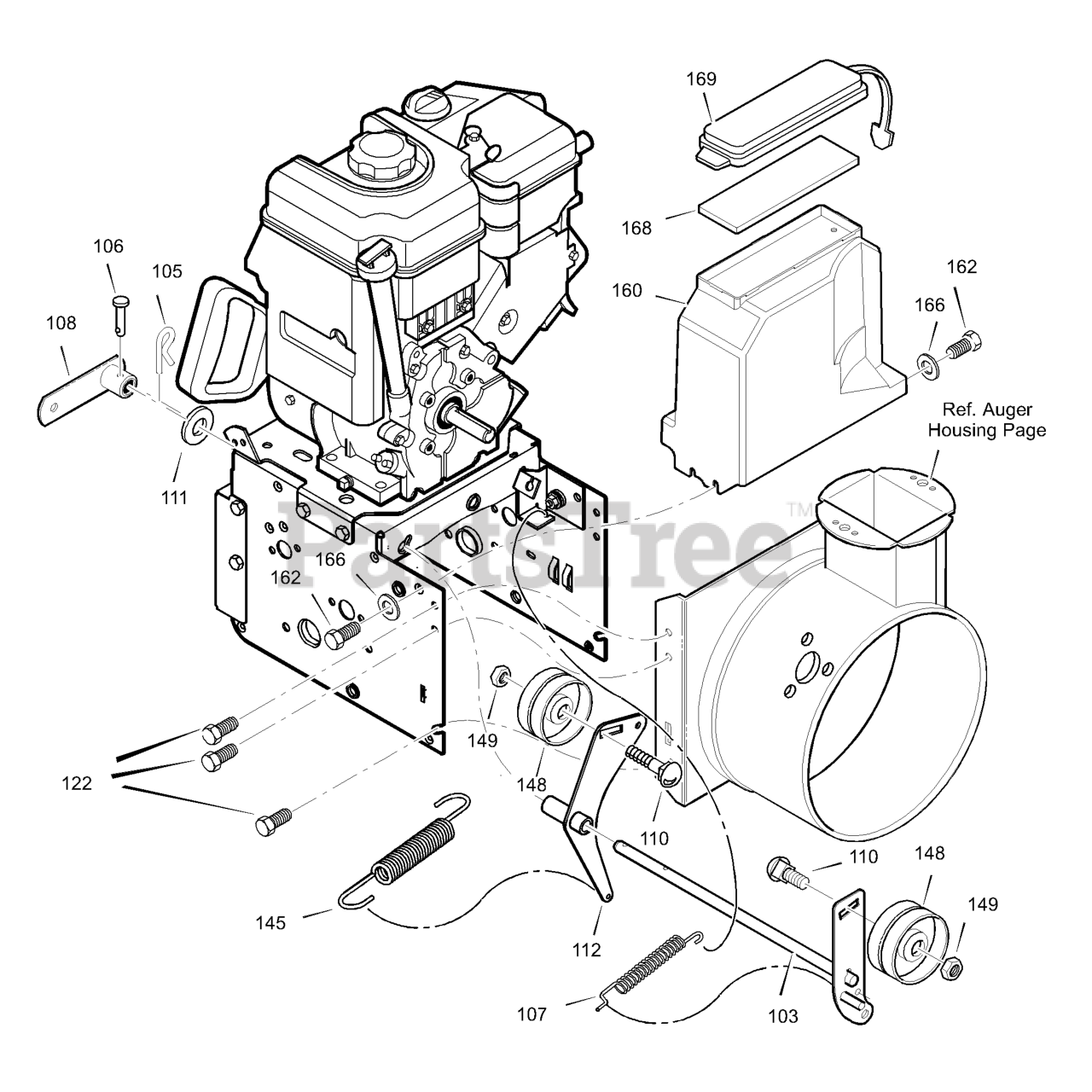

Frame Parts Diagram

  • Title

103

Murray 1501369 YZ

ASSY, AUGER IDLER

$49.99

$

Usually ships in 2-12 days

0

105

Murray 711682MA

PIN, HAIR
(Superseded to 703300)

$3.99

$

In Stock, Qty 20+

0

106

Murray 761761MA

PIN, CLEVIS 3/16" DIA

$6.99

$

Usually ships in 2-12 days

0

107

Murray 165X159MA

SPRING, TENSION

$6.99

$

In Stock, Qty 10

0

108

Murray 761675 YZ

SPRING ATTACHMENT

$6.49

$

Usually ships in 2-12 days

0

110

Murray 585781MA

BOLT, 3/8-16X1.25
(Superseded to 703227)

$4.99

$

Usually ships in 2-12 days

0

111

Murray 711617

WASHER, FLAT

$5.49

$

In Stock, only 2 left!

0

112

Murray 1501370 YZ

BRACKET, IDLER
(Superseded to 1501370YZMA)

$41.99

$

Usually ships in 2-12 days

0

122

Murray 780055MA

SCREW, 5/16-18 x 0.50
(Superseded to 703985)

$4.49

$

In Stock, Qty 14

0

145

Murray 165X155MA

SPRING, CLUTCH

$6.49

$

In Stock, only 1 left!

0

148

Murray 50793MA

PULLEY, IDLER
(Superseded to 1502120MA)

$21.99

$

In Stock, only 1 left!

0

149

Murray 590

NUT, JAM 3/8-16
(Superseded to 703996)

$4.99

$

In Stock, only 4 left!

0

160

Murray 1501052MA

COVER, BELT

$60.99

$

Usually ships in 2-12 days

0

162

Murray 26X306MA

SCREW, 1/4-20 X .63

$4.99

$

Usually ships in 2-12 days

0

166

Murray 071067MA

WASHER, FLAT

$82.99

$

In Stock, only 1 left!

0

168

Murray 761187MA

PAD, FOAM

$6.49

$

In Stock, only 1 left!

0

169

Murray 760539MA

LID

$10.99

$

In Stock, only 1 left!

0
