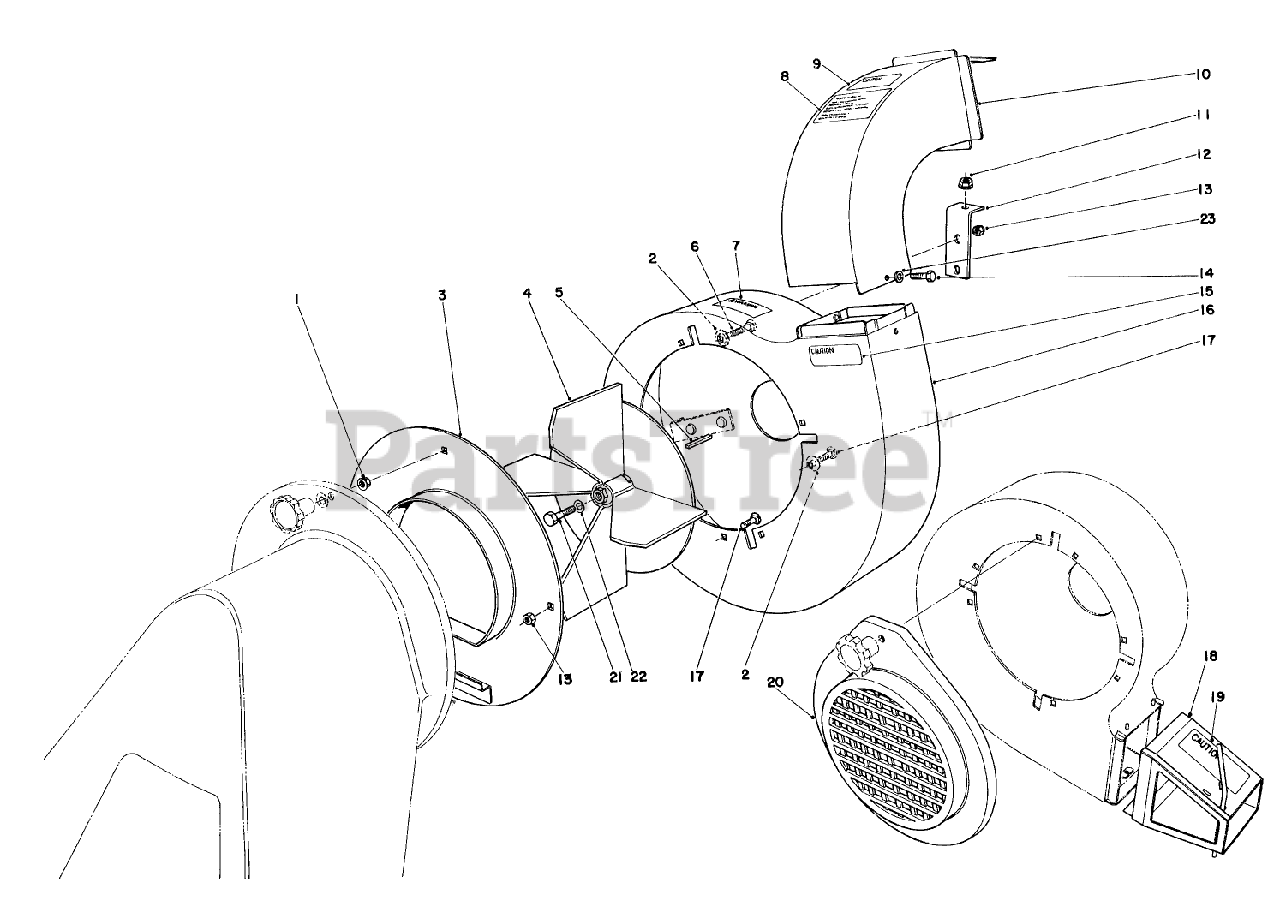

62923 - Toro Lawn Vacuum, 5hp (SN: 039000001 - 039999999) (1993) Blower Assembly Parts Diagram

Lawn Vacuum, 5hp

Blower Assembly Parts Diagram

  • Title

1

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

2

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0

3

Toro 20-5450

See Supercession: 20-5450-01
(Superseded to 20-5450-01)

$

$

Not available

4

Toro 37-9230

DISCONTINUED
(Superseded to 37-9230-03)

$

$

Not available

5

Toro 7-0036

KEY-SQUARE

$

$

Not available

6

Toro 57-3220

BOLT-CARRAIGE

$

$

Not available

7

Toro 37-9250

DISCONTINUED

$

$

Not available

8

Toro 20-7000

DISCONTINUED

$

$

Not available

9

Toro 20-8710

DISCONTINUED

$

$

Not available

10

Toro 20-6130

See Supercession: 20-6130-01
(Superseded to 20-6130-01)

$

$

Not available

11

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

12

Toro 39-4660

See Supercession: 39-4660-03
(Superseded to 39-4660-03)

$

$

Not available

13

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

14

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

15

Toro 20-7010

DISCONTINUED

$

$

Not available

16

Toro 20-5890

See Supercession: 20-5890-01
(Superseded to 20-5890-01)

$1320.99

$

Usually ships in 3-6 days

0

17

Toro 3230-15

SCREW-CARR

$1.99

$

In Stock, only 4 left!

0

18

Toro 20-6570

DISCONTINUED

$

$

Not available

19

Toro 20-7900

DISCONTINUED

$

$

Not available

20

Toro 20-5780

INTAKE-BLOWER

$137.99

$

Usually ships in 3-6 days

0

21

Toro 40-6990

DISCONTINUED

$

$

Not available

22

Toro 3290-456

WASHER-BELLEVILLE

$3.49

$

In Stock, Qty 15

0

23

Toro 3290-436

WASHER-BELLEVILLE

$4.49

$

In Stock, only 1 left!

0
