62923 - Toro Lawn Vacuum, 5hp (SN: 039000001 - 039999999) (1993) ENGINE BRIGGS & STRATTON MODEL 135202-0185-01 Parts Diagram

Lawn Vacuum, 5hp

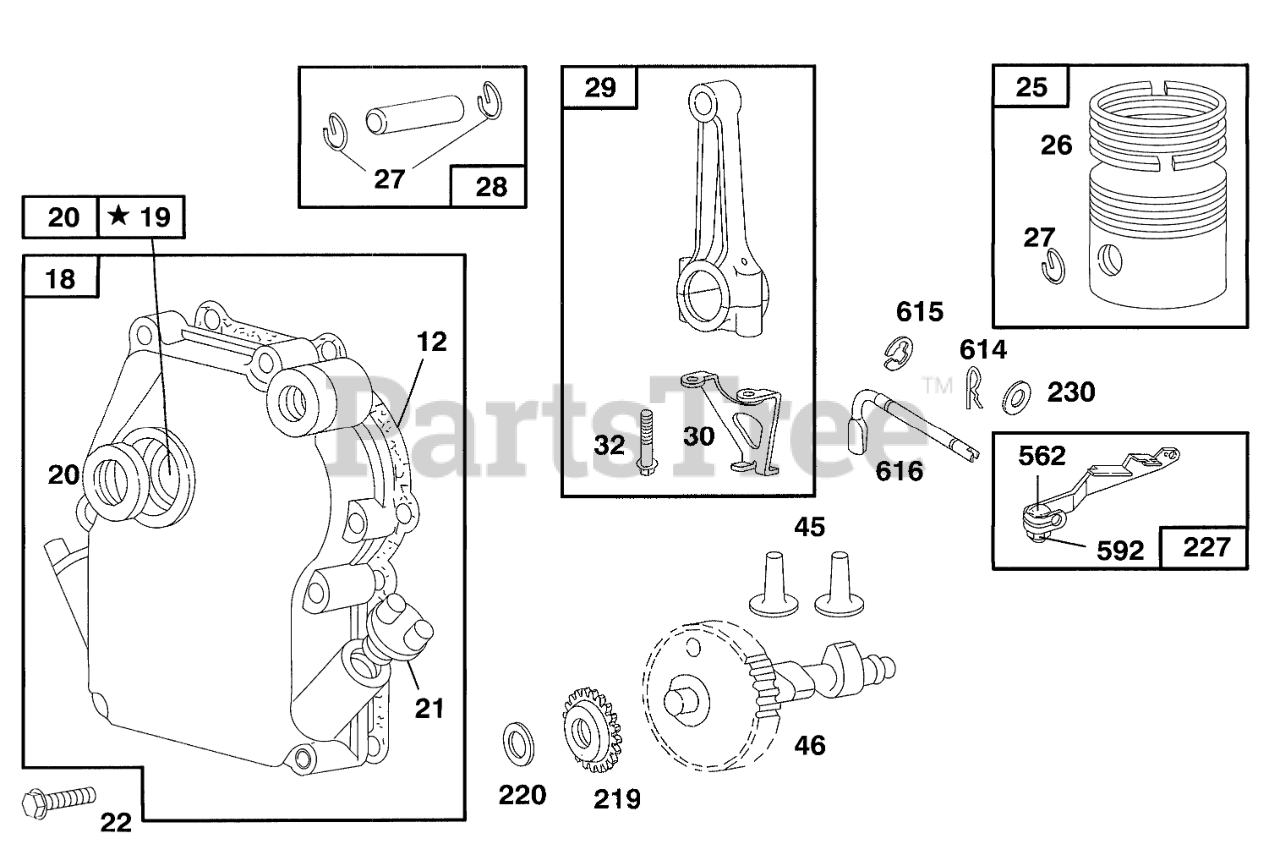

ENGINE BRIGGS & STRATTON MODEL 135202-0185-01 Parts Diagram

  • Title

12

Briggs & Stratton 270080

Gasket (.015"Std.)
(Superseded to 692213)

Note: Included in Gasket Set-Part No. 495603.

$3.99

$

In Stock, Qty 7

0

Briggs & Stratton 270125

Gasket (.015")

Note: Included in Gasket Set-Part No. 495603.

$9.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 270126

Gasket (.009")

Note: Included in Gasket Set-Part No. 495603.

$8.49

$

In Stock, only 4 left!

0

18

Briggs & Stratton 494044

Cover-Crankcase
(Superseded to 694350)

$149.99

$

Usually ships in 2-12 days

0

19

Briggs & Stratton 495660

Bushing

$15.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 294606

Seal-Oil
(Superseded to 294606S)

Note: Included in Gasket Set-Part No. 495603.

$9.49

$

In Stock, only 1 left!

0

21

Briggs & Stratton 66768

Plug-Oil
(Superseded to 281658S)

$4.49

$

In Stock, only 2 left!

0

22

Briggs & Stratton 94682

Screw-Hex.
(Superseded to 692551)

$3.99

$

In Stock, only 2 left!

0

25

Briggs & Stratton 298904

Piston Assy.-Std.
(Superseded to 793214)

$

$

Not available

Briggs & Stratton 298905

Piston Assy.-010"O.S.

$50.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298906

Piston Assy.-020"O.S.

$95.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298907

Piston Assy. .030" O.S.

$

$

Not available

26

Briggs & Stratton 298982

Ring Set (Std.)

$48.99

$

In Stock, Qty 12

0

Briggs & Stratton 298983

Ring Set (.010" O.S.)

$22.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298984

Ring Set (.020" O.S.)

$35.99

$

Usually ships in 2-12 days

0

Briggs & Stratton 298985

Lock-Piston Pin

$23.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 26026

Iock-Piston Pin
(Superseded to 691588)

$4.99

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 298909

Pin Ass-y-Piston

$8.99

$

In Stock, only 4 left!

0

Briggs & Stratton 298908

Pin-Piston (.005 Undersize)

$4.99

$

Usually ships in 2-12 days

0

29

Briggs & Stratton 299430

Rod Assy.-Connecting

$40.99

$

In Stock, only 2 left!

0

Briggs & Stratton 390459

Rod Conn. (.020" U.S.) Crankpin Bore

$

$

Not available

30

Briggs & Stratton 221890

Dipper-Conn. Rod
(Superseded to 691759)

$8.49

$

In Stock, only 1 left!

0

32

Briggs & Stratton 94745

Screw-Conn. Rod
(Superseded to 691664)

$4.49

$

In Stock, only 2 left!

0

45

Briggs & Stratton 260642

Tappet-Valve
(Superseded to 690509)

$5.99

$

Usually ships in 2-12 days

0

46

Briggs & Stratton 212733

Gear-Cam
(Superseded to 691164)

$59.99

$

Usually ships in 2-12 days

0

217

Briggs & Stratton 262281

Spring-Choke
(Superseded to 691815)

$

$

Not available

55

Briggs & Stratton 494846

Housing-Rewind Starter
(Superseded to 497830)

$49.99

$

In Stock, Qty 17

0

219

Briggs & Stratton 494845

Gear-Governor

$

$

Not available

220

Briggs & Stratton 221551

Washer-Thrust
(Superseded to 691724)

$5.49

$

In Stock, only 2 left!

0

227

Briggs & Stratton 490374

Lever-Governor
(Superseded to 690653)

$16.99

$

Usually ships in 2-12 days

0

230

Briggs & Stratton 222450

Washer
(Superseded to 691691)

$3.99

$

In Stock, Qty 5

0

414A

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

562

Briggs & Stratton 92613

Bolt

$

$

Not available

592

Briggs & Stratton 231082

Nut (Governor Control Lever)
(Superseded to 691251)

$3.49

$

In Stock, Qty 11

0

614

Briggs & Stratton 93306

Pin-Cotter
(Superseded to 691620)

$4.49

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 4 left!

0

616

Briggs & Stratton 231077

Crank-Govemor
(Superseded to 692016)

$

$

Not available
