62923 - Toro Lawn Vacuum, 5hp (SN: 039000001 - 039999999) (1993) Engine Briggs Stratton Model 135202-0185-01 9 Parts Diagram

Lawn Vacuum, 5hp

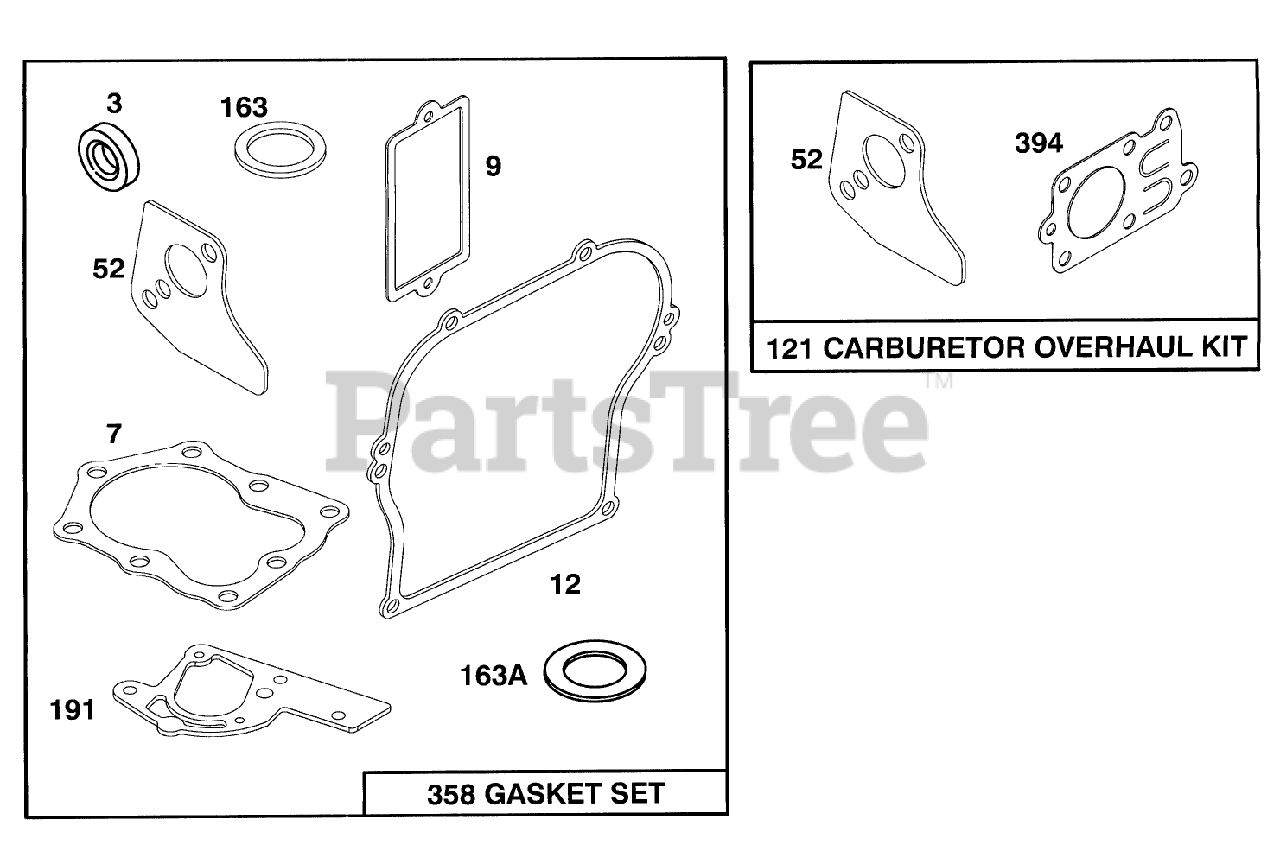

Engine Briggs Stratton Model 135202-0185-01 9 Parts Diagram

  • Title

3

Toro 299819

Seal-Oil

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

7

Toro 272157

Gasket-Head

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

12

Toro 270080

Gasket (.015"Std.)

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

Toro 270125

Gasket (.015")

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

Toro 270126

Gasket (.009")

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

52

Toro 271936

Gasket-Carburetor

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

52

Toro 271936

Gasket-Carburetor

Note: Included in Carburetor Overhaul Kit-Part No. 495606.

$

$

Currently unavailable

121

Toro 495606

Carburetor Kit

$

$

Currently unavailable

163

Toro 271139

Gasket-Air Cleaner

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

163

Toro 271139

Gasket-Air Cleaner

Note: Included in Carburetor Overhaul Kit-Part No. 495606.

$

$

Currently unavailable

163A

Toro 272631

Gasket-Adapter

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

191

Toro 272489

Gasket-Tank

Note: Included in Carburetor Overhaul Kit-Part No. 495606.

$

$

Currently unavailable

191

Toro 272489

Gasket-Tank

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

358

Toro 495603

Gasket Set

$

$

Currently unavailable

394

Toro 272538

Diaphragm

Note: Included in Carburetor Overhaul Kit-Part No. 495606.

$

$

Currently unavailable
