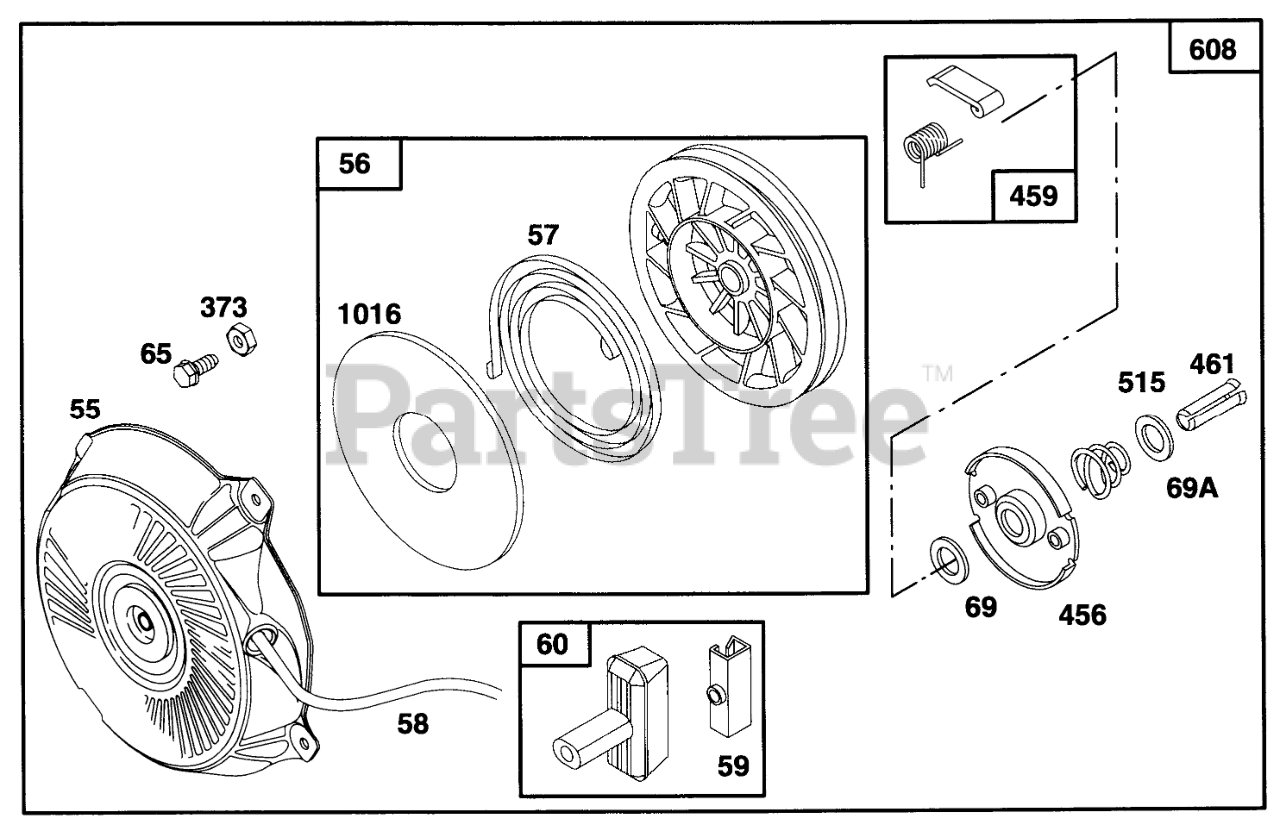

62924 - Toro Lawn Vacuum, 5hp (SN: 059000001 - 059999999) (1995) ENGINE BRIGGS & STRATTONMODEL 135202-0263-01 Parts Diagram

Lawn Vacuum, 5hp

ENGINE BRIGGS & STRATTONMODEL 135202-0263-01 Parts Diagram

  • Title

55

Briggs & Stratton 494846

Housing-Rewind Starter
(Superseded to 497830)

$49.99

$

In Stock, Qty 15

0

56

Briggs & Stratton 493824

Pulley-Starter

$27.99

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 262594

Spring-Starter
(Superseded to 491889)

$15.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 280406

Insert-Starter Grip
(Superseded to 280406S)

$8.49

$

In Stock, only 2 left!

0

59

Briggs & Stratton 224467

Insert-Grip
(Superseded to 493926)

$9.99

$

Usually ships in 2-12 days

0

60

Briggs & Stratton 494212

Handle-Rewind Starter
(Superseded to 493926)

$9.99

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 94686

Screw-Hex.
(Superseded to 690837)

$3.49

$

In Stock, Qty 18

0

69

Briggs & Stratton 280973

Washer

$5.49

$

Usually ships in 2-12 days

0

69A

Briggs & Stratton 224322

Washer

$5.49

$

Usually ships in 2-12 days

0

308A

Briggs & Stratton 224740

Cover-Cylinder Head
(Superseded to 690473)

$11.99

$

Usually ships in 2-12 days

0

356A

Briggs & Stratton 398808

Wire Stop

$11.99

$

In Stock, only 1 left!

0

373

Briggs & Stratton 92987

Nut
(Superseded to 690800)

$3.99

$

In Stock, only 3 left!

0

414A

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer
(Superseded to 691721)

$7.49

$

In Stock, only 1 left!

0

456

Briggs & Stratton 224321

Retainer

$8.99

$

Usually ships in 2-12 days

0

459

Briggs & Stratton 492833

PawI-Ratchet

$4.99

$

Usually ships in 2-12 days

0

461

Briggs & Stratton 262626

Pin-Shaft

$4.49

$

Usually ships in 2-12 days

0

515

Briggs & Stratton 262625

Spring

$6.49

$

Usually ships in 2-12 days

0

608

Briggs & Stratton 495766

Starter-Rewind
(Superseded to 497830)

$49.99

$

In Stock, Qty 15

0

615

Briggs & Stratton 93307

Retainer-Ring

$5.99

$

In Stock, only 4 left!

0

1016

Briggs & Stratton 224278

Spacer

$3.49

$

Usually ships in 2-12 days

0
