62924 - Toro Lawn Vacuum, 5hp (SN: 069000001 - 069999999) (1996) ENGINE BRIGGS & STRATTON MODEL 135202-0263-01 Parts Diagram

Lawn Vacuum, 5hp

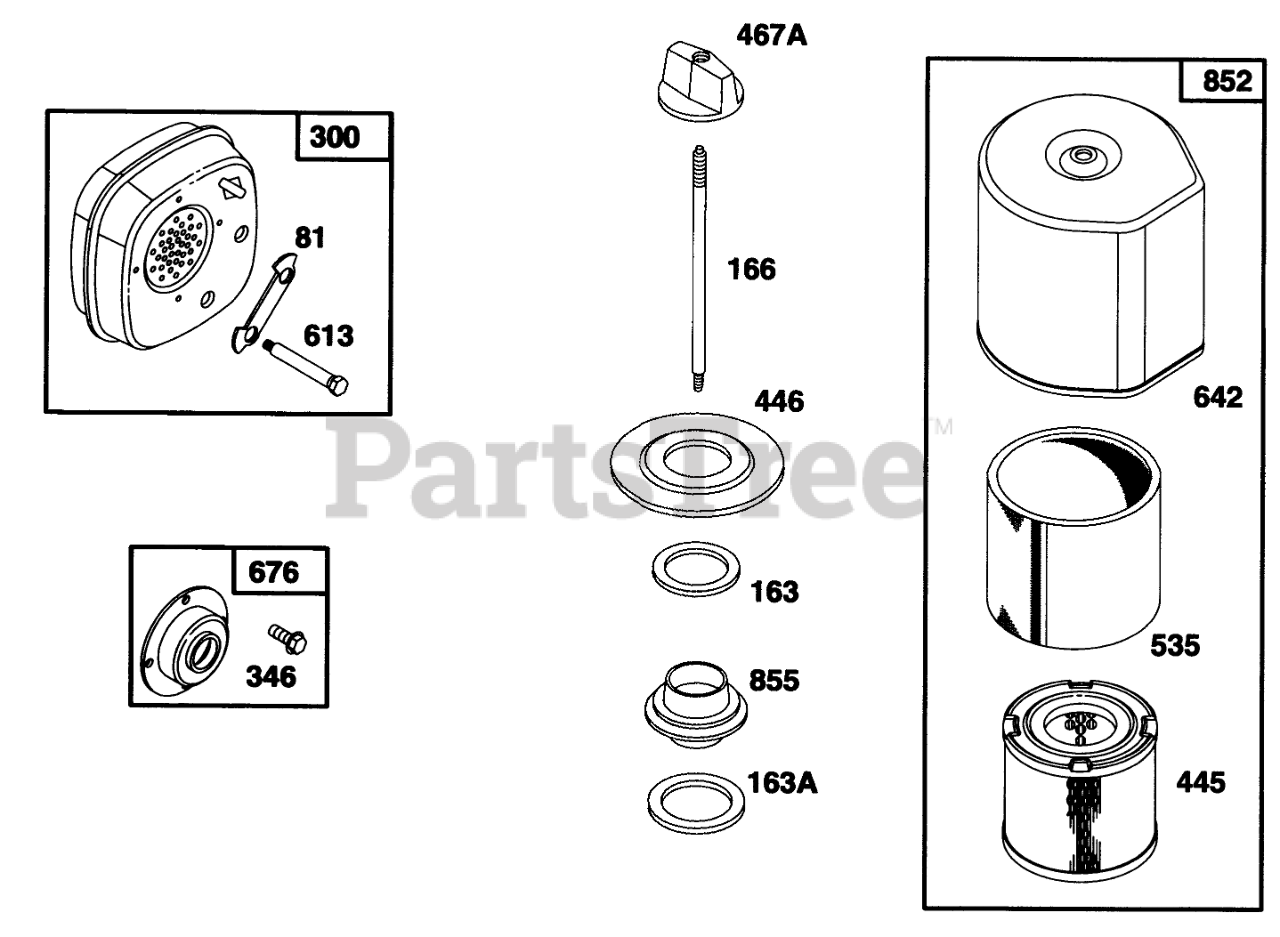

ENGINE BRIGGS & STRATTON MODEL 135202-0263-01 Parts Diagram

  • Title

81

Briggs & Stratton 222263

Lockplate
(Superseded to 691729)

$6.49

$

In Stock, only 3 left!

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

Note: Included in Carburetor Overhaul Kit Part No. 495606.

$3.99

$

In Stock, Qty 10

0

163

Briggs & Stratton 271139

Gasket-Air Cleaner
(Superseded to 271139S)

Note: Included in Gasket Set Part No. 495603.

$3.99

$

In Stock, Qty 10

0

163A

Briggs & Stratton 272631

Gasket-Adapter
(Superseded to 690580)

Note: Included in Gasket Set Part No. 495603.

$13.99

$

In Stock, only 1 left!

0

166

Briggs & Stratton 231819

Elbow-Carburetor
(Superseded to 691248)

$15.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 393615

Muffler
(Superseded to 494585)

$24.99

$

In Stock, only 3 left!

0

308A

Briggs & Stratton 224740

Cover-Cylinder Head
(Superseded to 690473)

$12.99

$

Usually ships in 2-12 days

0

346

Briggs & Stratton 93705

Screw
(Superseded to 690661)

$3.49

$

In Stock, Qty 9

0

356A

Briggs & Stratton 398808

Wire Stop

$12.99

$

In Stock, Qty 6

0

414A

Briggs & Stratton 221198

Washer
(Superseded to 691722)

$6.99

$

Usually ships in 2-12 days

0

414

Briggs & Stratton 220982

Washer
(Superseded to 691721)

$7.99

$

In Stock, only 1 left!

0

445

Briggs & Stratton 396424

Filter-Air
(Superseded to 396424S)

$15.99

$

In Stock, Qty 17

0

446

Briggs & Stratton 222844

Base-Air Cleaner
(Superseded to 691735)

$18.99

$

Usually ships in 2-12 days

0

467A

Briggs & Stratton 493903

Knob
(Superseded to 691668)

$5.99

$

In Stock, Qty 20+

0

535

Briggs & Stratton 271466

Filter-Air

$4.49

$

In Stock, Qty 12

0

613

Briggs & Stratton 93935

Screw
(Superseded to 691413)

$5.99

$

In Stock, only 2 left!

0

615

Briggs & Stratton 93307

Retainer-Ring

$6.49

$

In Stock, Qty 5

0

642

Briggs & Stratton 493822

Cover-Air Cleaner

$

$

Not available

676

Briggs & Stratton 395700

Deflector-Exhaust

$16.99

$

Usually ships in 2-12 days

0

852

Briggs & Stratton 396397

Air Cleaner Group
(Superseded to 493822)

$

$

Not available

855

Briggs & Stratton 281189

Adapter-Air Cleaner
(Superseded to 690599)

$11.99

$

Usually ships in 2-12 days

0

995

Briggs & Stratton 223814

Bracket-Link
(Superseded to 690436)

$

$

Not available
