62924 - Toro Lawn Vacuum, 5hp (SN: 079000001 - 079999999) (1997) Engine Briggs Stratton Model 13202-0263-01 Parts Diagram

Lawn Vacuum, 5hp

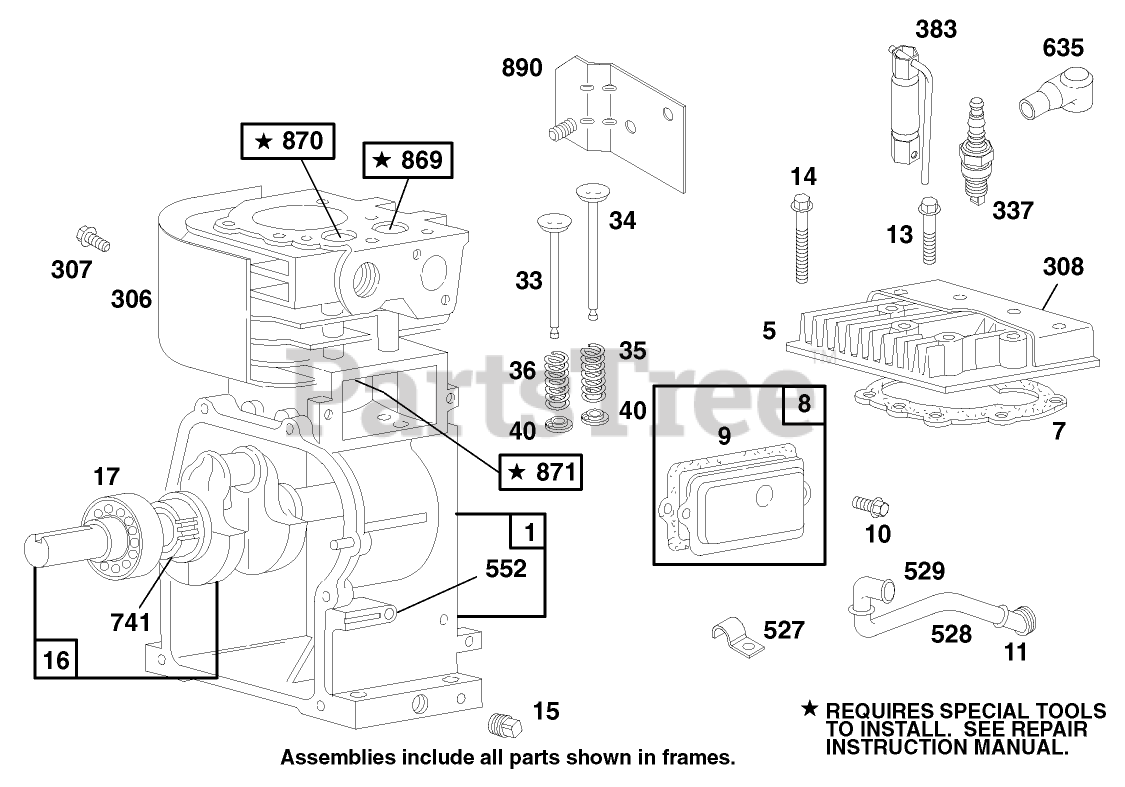

Engine Briggs Stratton Model 13202-0263-01 Parts Diagram

  • Title

1

Toro 395990

Cylinder Assembly

$

$

Currently unavailable

5

Toro 214040

Head-Cylinder

$

$

Not available

7

Toro 272157

Gasket-Head

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

8

Toro 495774

Breather Assy.

$

$

Currently unavailable

9

Toro 27549

Gasket Breather

Note: Included in Gasket Set-Part No. 495603.

$

$

Currently unavailable

10

Toro 94621

Screw

$

$

Currently unavailable

11

Toro 66578

Grommet

$

$

Currently unavailable

13

Toro 94221

Screw-Cylinder Head

$

$

Currently unavailable

14

Toro 94679

Screw-Cylinder Head

$

$

Currently unavailable

15

Toro 94387

Plug-Pipe

$

$

Currently unavailable

16

Toro 495845

Crankshaft

$

$

Currently unavailable

17

Toro 494874

Bearing-Ball

$

$

Currently unavailable

33

Toro 211119

Valve Exhaust

$

$

Currently unavailable

34

Toro 261044

Valve-Intake

$

$

Currently unavailable

35

Toro 260552

Spring-Valve

$

$

Currently unavailable

36

Toro 26478

1531A GIL 3 1/2HP T

$3.23

$

Usually ships in 3-6 days

0

40

Toro 93312

Gear-Cam

$

$

Currently unavailable

307

Toro 94680

Screw-Sem

$

$

Currently unavailable

306

Toro 221511

Shield-Cylinder

$

$

Currently unavailable

308

Toro 224738

Cover-Cylinder

$

$

Currently unavailable

308A

Toro 224740

Cover-Cylinder Head

$

$

Currently unavailable

337

Toro 802592

Plug-Spark

$

$

Currently unavailable

383

Toro 89838

Wrench-Plug, Spark

$

$

Currently unavailable

527

Toro 223786

Clamp-Tube

$

$

Currently unavailable

528

Toro 231550

Tube-Breather
(Superseded to 743489)

$

$

Not available

529

Toro 67838

Grommet

$

$

Currently unavailable

552

Toro 231079

Bushing-Governor

$

$

Currently unavailable

635

Toro 66538

Boot-Plug, Spark

$

$

Currently unavailable

741

Toro 262992

Gear-Timing

$

$

Currently unavailable

869

Toro 211787

Seat-Int. Valve

$

$

Currently unavailable

870

Toro 211172

Seat-Ex. Valve

$

$

Currently unavailable

871

Toro 262001

Bushing-Guide

$

$

Currently unavailable

890

Toro 496783

Bracket-Mounting

$

$

Currently unavailable
