62924 - Toro Lawn Vacuum, 5hp (SN: 200000001 - 200999999) (2000) Blower Assembly Parts Diagram

Lawn Vacuum, 5hp

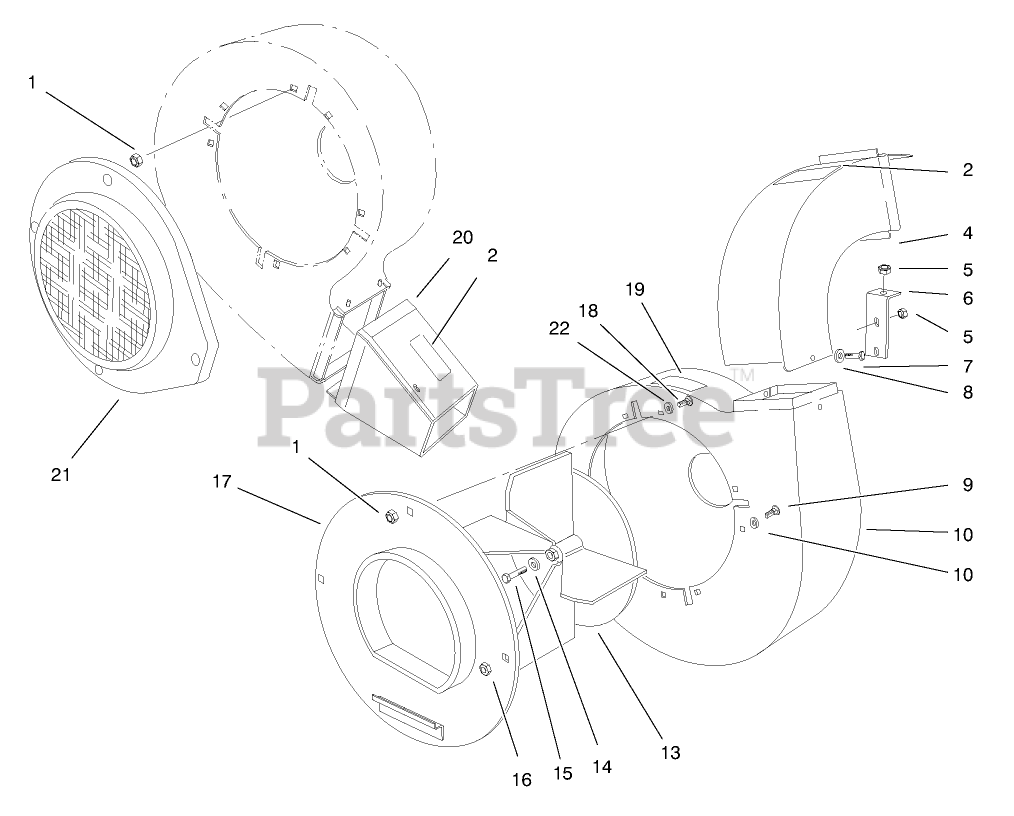

Blower Assembly Parts Diagram

  • Title

1

Toro 32128-26

NUT-FLANGE

$6.99

$

Usually ships in 3-6 days

0

2

Toro 93-4139

DECAL-CAUTION, BAG

$

$

Not available

4

Toro 20-6130

See Supercession: 20-6130-01
(Superseded to 20-6130-01)

$

$

Not available

5

Toro 3296-58

NUT-LOCK, NI

$2.99

$

In Stock, only 2 left!

0

6

Toro 39-4660

See Supercession: 39-4660-03
(Superseded to 39-4660-03)

$

$

Not available

7

Toro 321-4

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

8

Toro 3290-436

WASHER-BELLEVILLE

$4.49

$

In Stock, only 1 left!

0

9

Toro 3230-19

BOLT-CARR

$6.49

$

In Stock, only 3 left!

0

10

Toro 20-5890

See Supercession: 20-5890-01
(Superseded to 20-5890-01)

$1320.99

$

Usually ships in 3-6 days

0

13

Toro 93-3677

See Supercession: 93-3677-03
(Superseded to 93-3677-03)

$

$

Not available

14

Toro 3290-340

WASHER-BELLEVILLE

$8.99

$

In Stock, Qty 6

0

15

Toro 3211-5

SCREW-HH

$3.99

$

In Stock, Qty 5

0

16

Toro 3296-47

NUT-LOCK, NI

$4.49

$

In Stock, Qty 19

0

17

Toro 20-5450

See Supercession: 20-5450-01
(Superseded to 20-5450-01)

$

$

Not available

18

Toro 57-3220

BOLT-CARRAIGE

$

$

Not available

19

Toro 93-4138

See Supercession: 105-4062
(Superseded to 105-4062)

$

$

Not available

20

Toro 93-4124

See Supercession: 93-4124-01
(Superseded to 93-4124-01)

$

$

Not available

21

Toro 20-5780

INTAKE-BLOWER

$137.99

$

Usually ships in 3-6 days

0

22

Toro 3256-25

WASHER-FLAT

$0.99

$

In Stock, Qty 8

0
