62925 - Toro Lawn Vacuum (SN: 210000001 - 210999999) (2001) Carburetor Assembly Briggs And Stratton Model 110402-0218-E1 Parts Diagram

Lawn Vacuum

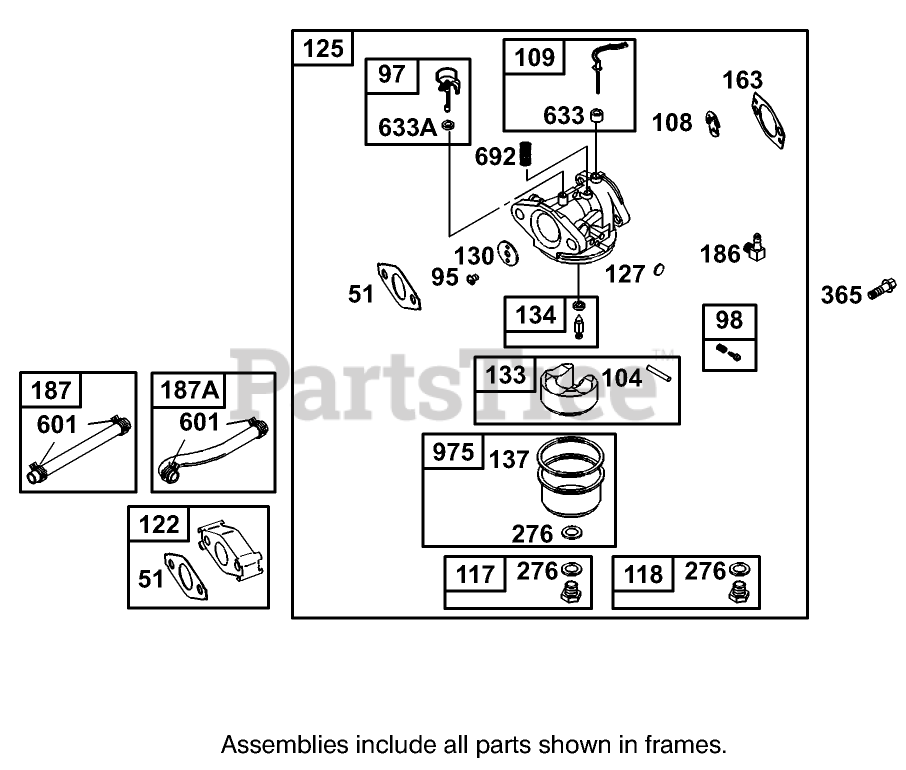

Carburetor Assembly Briggs And Stratton Model 110402-0218-E1 Parts Diagram

  • Title

51

Toro 692555

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

95

Toro 691636

Screw

$

$

Currently unavailable

97

Toro 690024

Shaft-Throttle

$

$

Currently unavailable

98

Toro 398185

Idle Speed Kit

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

108

Toro 692567

Valve-Choke

$

$

Currently unavailable

109

Toro 693628

Shaft-Choke

$

$

Currently unavailable

117

Toro 493763

Screw-Bowl Mtg.

$

$

Currently unavailable

118

Toro 493637

Main Jet(High Altitude)

$

$

Currently unavailable

122

Toro 693749

Spacer-Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

122

Toro 693749

Spacer-Carburetor

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

125

Toro 694112

Carburetor

$

$

Currently unavailable

127

Toro 691739

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

130

Toro 691181

Valve-Throttle

$

$

Currently unavailable

133

Toro 398187

Float-Carburetor

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

186

Toro 692317

Connector-Hose

$

$

Currently unavailable

187

Toro 691050

Line-Fuel (Cut to Required Length)

$

$

Currently unavailable

187A

Toro 692601

Line?Fuel

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

365

Toro 692568

Screw (Carburetor)

$

$

Currently unavailable

601

Toro 95162

Clamp-Hose

$

$

Currently unavailable

633

Toro 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

633

Toro 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

633A

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

633A

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

692

Toro 690572

Spring-Detent

$

$

Currently unavailable

975

Toro 493640

Bowl-Float

$

$

Currently unavailable
