62925 - Toro Lawn Vacuum (SN: 210000001 - 210999999) (2001) Carburetor Overhaul Kit Assembly Briggs And Stratton Model 110402-0218-E1 Parts Diagram

Lawn Vacuum

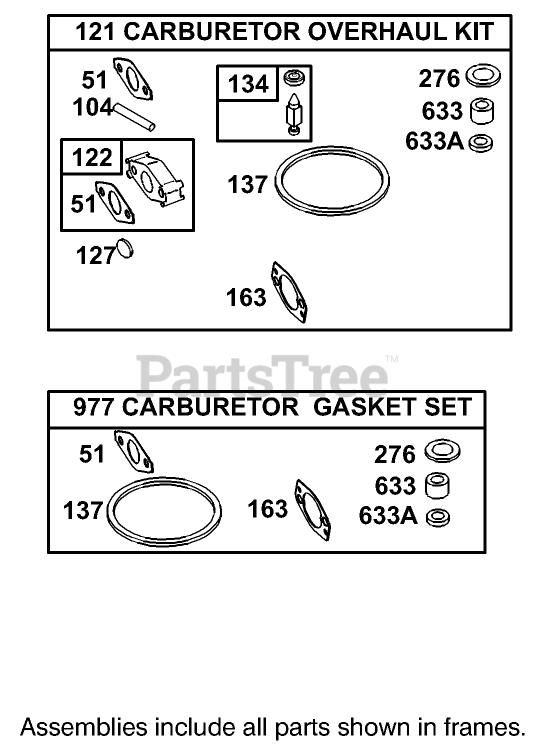

Carburetor Overhaul Kit Assembly Briggs And Stratton Model 110402-0218-E1 Parts Diagram

  • Title

51

Toro 692555

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

104

Toro 691242

Pin-Hinge, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

121

Toro 695157

Carburetor Overhaul Kit

$

$

Currently unavailable

122

Toro 693749

Spacer-Carburetor

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

122

Toro 693749

Spacer-Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

127

Toro 691739

Plug-Welch

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

134

Toro 398188

Valve-Inlet (Includes Seat)

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

137

Toro 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

276

Toro 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

633

Toro 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

633

Toro 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

633A

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

633A

Toro 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

977

Toro 695156

Carburetor Gasket Set

$

$

Currently unavailable
