62925 - Toro Lawn Vacuum (SN: 210000001 - 210999999) (2001) Gasket Assembly Briggs And Stratton Model 110402-0218-E1 Parts Diagram

Lawn Vacuum

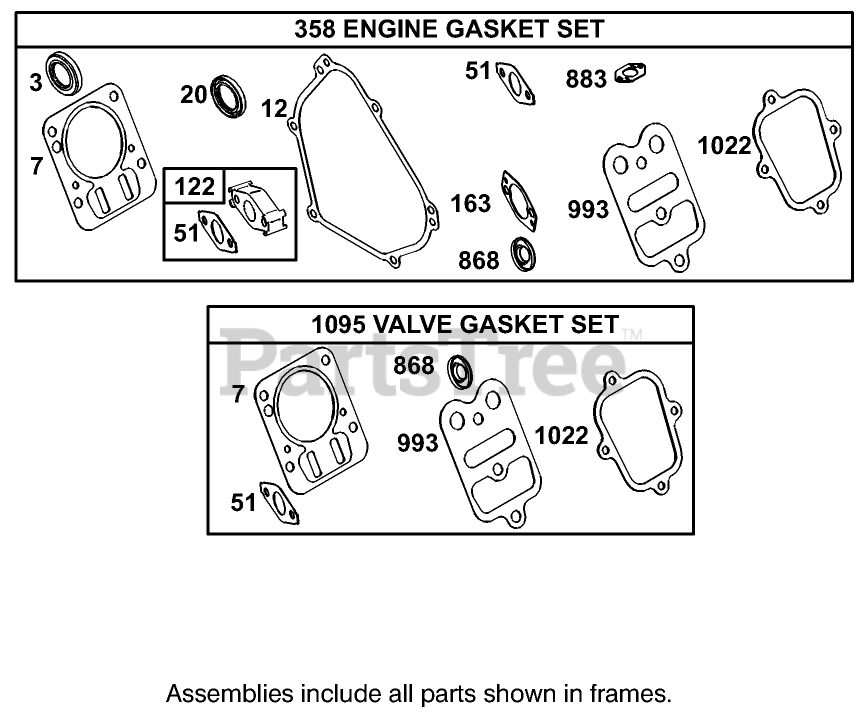

Gasket Assembly Briggs And Stratton Model 110402-0218-E1 Parts Diagram

  • Title

3

Toro 299819

Seal-Oil

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

7

Toro 695166

Cylinder Head Gasket

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

7

Toro 695166

Cylinder Head Gasket

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

12

Toro 692549

Crankcase Cover Gasket

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

20

Toro 692550

Seal-Oil (PTO Side)

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

51

Toro 692555

Gasket-Intake

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

122

Toro 693749

Spacer-Carburetor

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

122

Toro 693749

Spacer-Carburetor

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

163

Toro 693458

Air Cleaner Gasket

Note: Included in Carburetor Gasket Set-Ref. 977.

$

$

Currently unavailable

358

Toro 695155

Engine Gasket Set

$

$

Currently unavailable

868

Toro 692044

Seal-Valve

Note: Included in Carburetor Overhaul Kit-Ref. 121.

$

$

Currently unavailable

868

Toro 692044

Seal-Valve

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

883

Toro 691893

Gasket-Exhaust

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

993

Toro 694088

Gasket-Head Plate, Cylinder

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

993

Toro 694088

Gasket-Head Plate, Cylinder

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

1022

Toro 691890

Gasket-Cover, Rocker

Note: Included in Valve Gasket Set-Ref. 1095.

$

$

Currently unavailable

1022

Toro 691890

Gasket-Cover, Rocker

Note: Included in Engine Gasket Set-Ref. 358.

$

$

Currently unavailable

1095

Toro 695289

Valve Gasket Set

$

$

Currently unavailable
