62925 - Toro Lawn Vacuum (SN: 260000001 - 260999999) (2006) CARBURETOR ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

Lawn Vacuum

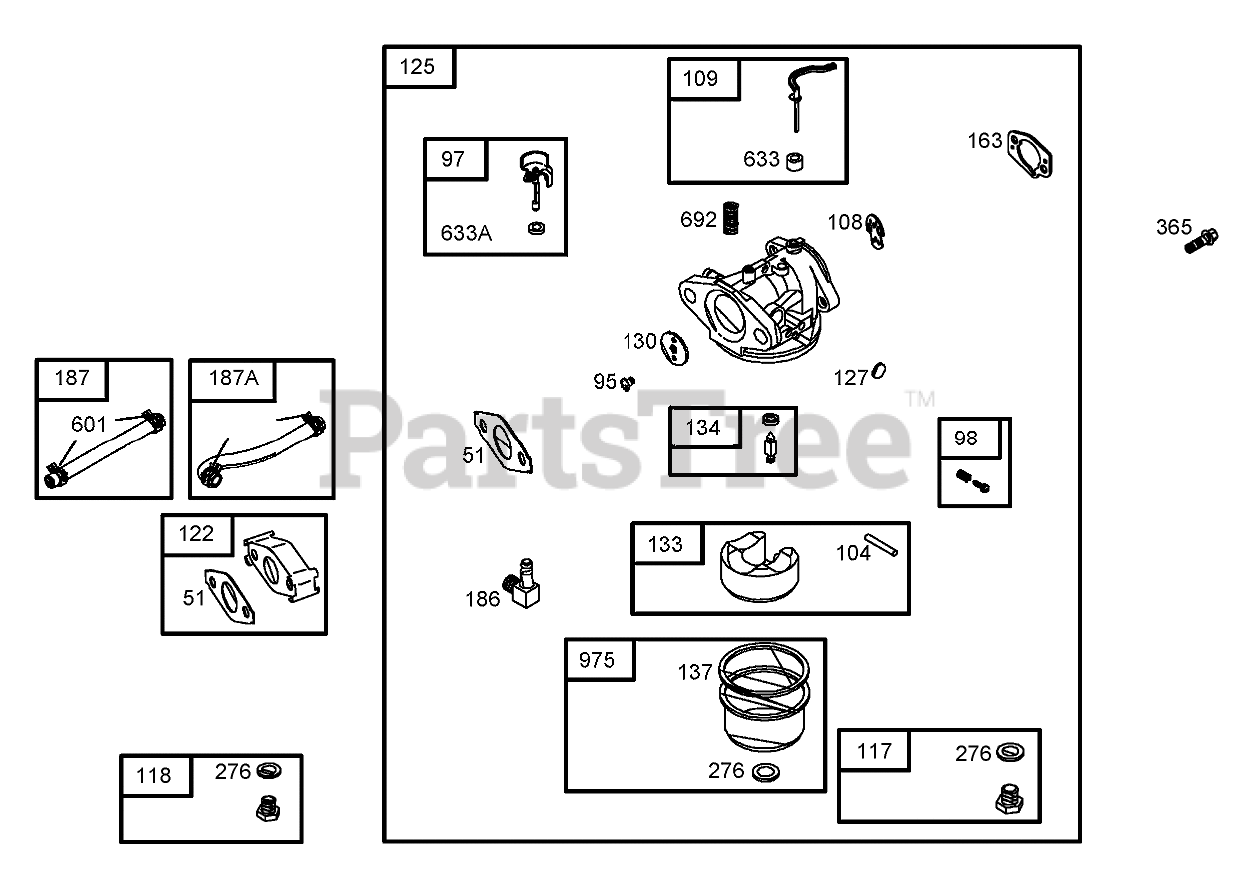

CARBURETOR ASSEMBLY BRIGGS AND STRATTON 126302-0245-E1 Parts Diagram

  • Title

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Engine Gasket Set (Ref. No. 358)

$4.49

$

In Stock, Qty 14

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.49

$

In Stock, Qty 14

0

51

Briggs & Stratton 692555

Gasket-Intake

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, Qty 14

0

95

Briggs & Stratton 691636

Screw (Throttle Valve)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 12

0

97

Briggs & Stratton 690024

Shaft-Throttle

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

98

Briggs & Stratton 398185

Idle Speed Kit

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

Usually ships in 2-12 days

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.49

$

In Stock, Qty 9

0

104

Briggs & Stratton 691242

Pin-Hinge, Float
(Superseded to 797622)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, Qty 9

0

108

Briggs & Stratton 692567

Valve-Choke

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

Usually ships in 2-12 days

0

109

Briggs & Stratton 693628

Shaft-Choke

Note: Obtain parts from www.briggsandstratton.com

$31.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 697355

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

118

Briggs & Stratton 494870

Jet-Main

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Not available

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$

$

Not available

122

Briggs & Stratton 693749

Spacer-Carburetor
(Superseded to 795643)

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

125

Briggs & Stratton 697028

Carburetor
(Superseded to 592679)

Note: Obtain parts from www.briggsandstratton.com

$108.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691739

Plug-Welch

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

Usually ships in 2-12 days

0

127

Briggs & Stratton 691739

Plug-Welch

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

Usually ships in 2-12 days

0

130

Briggs & Stratton 691181

Valve-Throttle

Note: Obtain parts from www.briggsandstratton.com

$7.99

$

Usually ships in 2-12 days

0

133

Briggs & Stratton 398187

Float-Carburetor

Note: Obtain parts from www.briggsandstratton.com

$10.99

$

In Stock, Qty 6

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Obtain parts from www.briggsandstratton.com

$6.99

$

In Stock, Qty 20+

0

134

Briggs & Stratton 398188

Needle and Seat Kit

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Obtain parts from www.briggsandstratton.com

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$3.99

$

In Stock, Qty 20+

0

137

Briggs & Stratton 693981

Gasket-Bowl, Float

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$3.99

$

In Stock, Qty 20+

0

163

Briggs & Stratton 696979

Gasket-Cleaner, Air
(Superseded to 792870)

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$6.99

$

In Stock, Qty 12

0

163

Briggs & Stratton 696979

Gasket-Cleaner, Air
(Superseded to 792870)

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$6.99

$

In Stock, Qty 12

0

163

Briggs & Stratton 696979

Gasket-Cleaner, Air
(Superseded to 792870)

Note: Included in Engine Gasket Set (Ref. No. 358)

$6.99

$

In Stock, Qty 12

0

186

Briggs & Stratton 692317

Connector-Hose

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

187

Briggs & Stratton 691050

Line-Fuel (Cut to Required Length)
(Superseded to 791766)

Note: Obtain parts from www.briggsandstratton.com

$8.49

$

In Stock, Qty 14

0

187A

Briggs & Stratton 692601

Line?Fuel
(Superseded to 791867)

Note: Obtain parts from www.briggsandstratton.com

$17.99

$

In Stock, only 2 left!

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, Qty 20+

0

276

Briggs & Stratton 271716

Washer-Sealing

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$7.49

$

In Stock, Qty 20+

0

365

Briggs & Stratton 699484

Screw (Carburetor)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

In Stock, only 2 left!

0

601

Briggs & Stratton 95162

Clamp-Hose
(Superseded to 791850)

Note: Obtain parts from www.briggsandstratton.com

$3.49

$

In Stock, Qty 11

0

633

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$5.49

$

In Stock, only 2 left!

0

633

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$5.49

$

In Stock, only 2 left!

0

633

Briggs & Stratton 693867

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$5.49

$

In Stock, only 2 left!

0

633A

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Obtain parts from www.briggsandstratton.com

$4.99

$

In Stock, Qty 9

0

633A

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Gasket Set (Ref. No. 977)

$4.99

$

In Stock, Qty 9

0

633A

Briggs & Stratton 691321

Seal-Shaft, Choke Throttle

Note: Included in Carburetor Overhaul Kit (Ref. No. 121)

$4.99

$

In Stock, Qty 9

0

692

Briggs & Stratton 690572

Spring-Detent
(Superseded to 590931)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, Qty 7

0

975

Briggs & Stratton 493640

Bowl-Float
(Superseded to 796611)

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

Usually ships in 2-12 days
