62925 - Toro Lawn Vacuum (SN: 270000001 - 270999999) (2007) CYLINDER ASSEMBLY BRIGGS AND STRATTON 126302-0210-B1 Parts Diagram

Lawn Vacuum

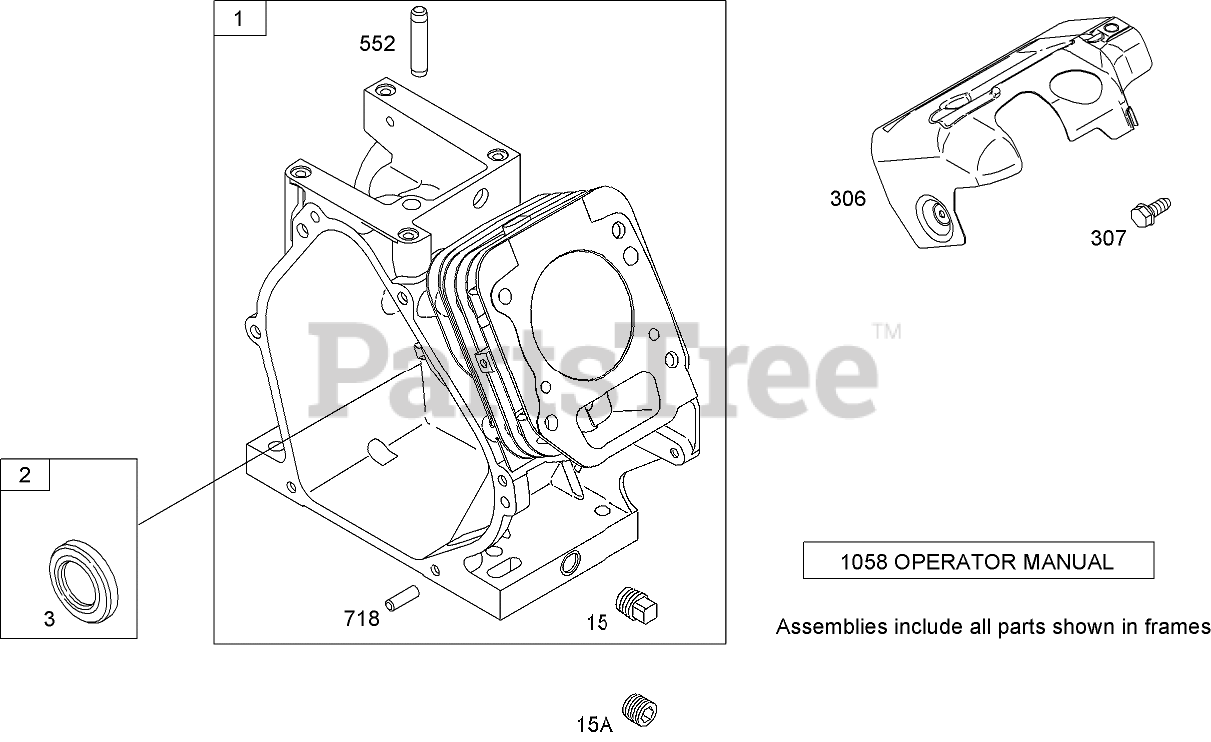

CYLINDER ASSEMBLY BRIGGS AND STRATTON 126302-0210-B1 Parts Diagram

  • Title

1

Briggs & Stratton 699510

Cylinder ASM

Note: Obtain parts from www.briggsandstratton.com

$238.99

$

Usually ships in 2-12 days

0

2

Briggs & Stratton 399269

Bushing Seal Kit (Magneto Side)
(Superseded to 796961)

Note: Obtain parts from www.briggsandstratton.com

$22.99

$

In Stock, only 4 left!

0

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable

3

Toro 299819s

Seal-Oil (Magneto Side)

Note: Included in Engine Gasket Set (Ref. No. 358)

$

$

Currently unavailable

15

Briggs & Stratton 691686

Plug-Drain, Oil (Square Head)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

In Stock, only 2 left!

0

15A

Briggs & Stratton 691682

Plug-Drain, Oil (Flush)

Note: Obtain parts from www.briggsandstratton.com

$5.99

$

Usually ships in 2-12 days

0

306

Briggs & Stratton 693610

Shield-Cylinder
(Superseded to 795334)

Note: Obtain parts from www.briggsandstratton.com

$23.99

$

Usually ships in 2-12 days

0

307

Briggs & Stratton 699483

Screw (Cylinder Shield)
(Superseded to 794822)

Note: Obtain parts from www.briggsandstratton.com

$4.49

$

Usually ships in 2-12 days

0

552

Briggs & Stratton 692346

Bushing-Crank, Governor

Note: Obtain parts from www.briggsandstratton.com

$9.99

$

Usually ships in 2-12 days

0

718

Briggs & Stratton 690959

Pin-Locating

Note: Obtain parts from www.briggsandstratton.com

$7.49

$

In Stock, only 2 left!

0

1058

Toro MS3431

Operator Manual

Note: Obtain parts from www.briggsandstratton.com

$

$

Currently unavailable
