62925 - Toro Lawn Vacuum (SN: 310000001 - 310999999) (2010) TRACTION AND WHEEL ASSEMBLY Parts Diagram

Lawn Vacuum

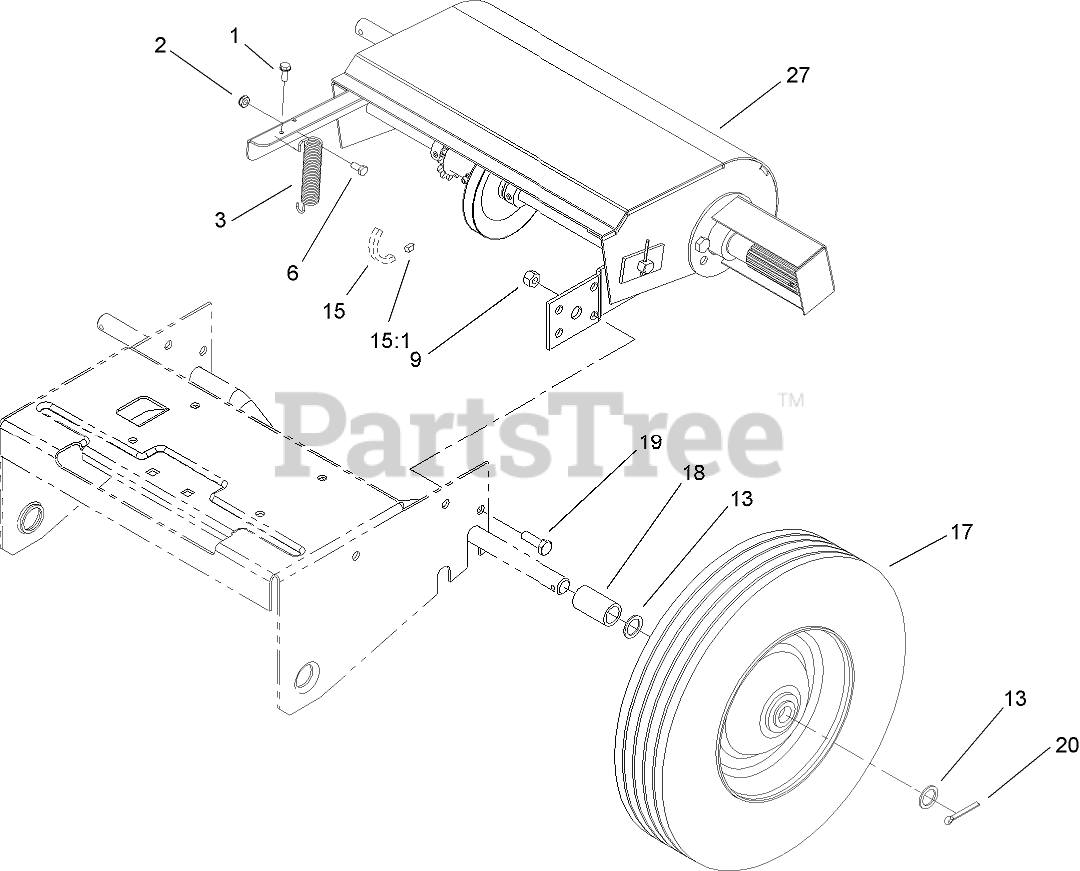

TRACTION AND WHEEL ASSEMBLY Parts Diagram

  • Title

1

Toro 32140-32

SCREW-HH

$

$

Not available

2

Toro 3296-27

NUT-LOCK, NI

$1.99

$

In Stock, Qty 10

0

3

Toro 23-3520

SPRING-TRACTION

$24.99

$

Usually ships in 3-6 days

0

6

Toro 25-8640

SCREW-HH

$1.99

$

In Stock, only 1 left!

0

9

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

13

Toro 7-3590

WASHER

$2.99

$

Usually ships in 3-6 days

0

15

Toro 3-3434

CHAIN-ROLLER, REEL DRIVE

$

$

Not available

15:1

Toro 2710-31

LINK-CONNECTING, NO. 35

$2.49

$

In Stock, only 1 left!

0

17

Toro 20-6100

WHEEL

$196.99

$

Usually ships in 3-6 days

0

18

Toro 20-5410

SPACER-AXLE

$

$

Not available

19

Toro 322-5

SCREW-HH

$0.99

$

In Stock, Qty 20+

0

20

Toro 3272-17

PIN-COTTER

$2.99

$

In Stock, Qty 5

0

27

Traction ASM

Note: Not serviced separately

$

$

Not available
