62933 - Toro Lawn Blower, 5hp (SN: 005000001 - 005999999) (1975)

Lawn Blower, 5hp

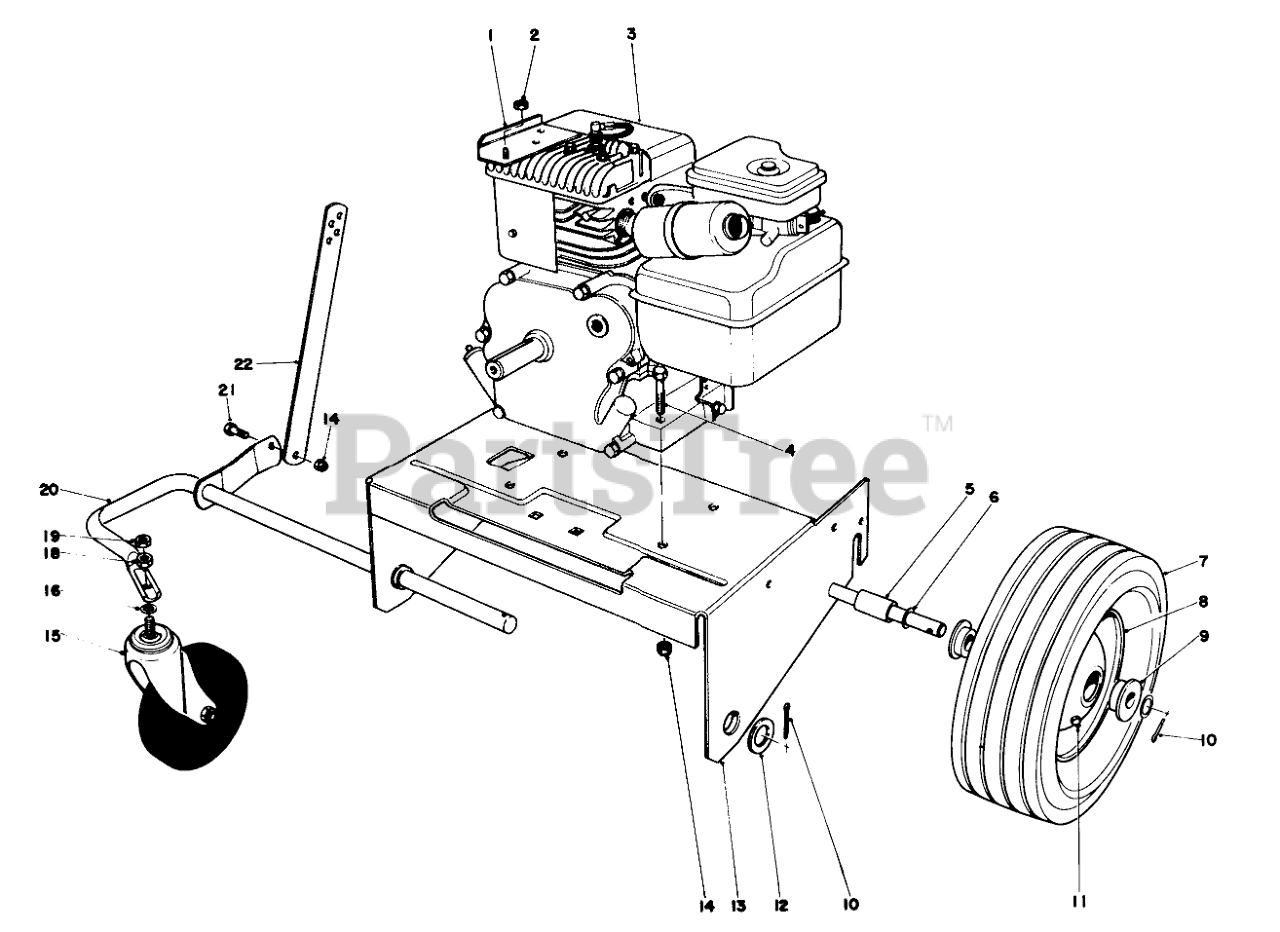

62933 - Toro Lawn Blower, 5hp (SN: 005000001 - 005999999) (1975) > Parts Diagrams (9) > ENGINE AND BASE ASSEMBLY

  • Title
20-5540

1

MOUNTING BRKT WA

Part# 20-5540

OEM Warranty Repair Part for Toro

Not available

3296-47

2

NUT-LOCK, NI

Part# 3296-47

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.12

221461

3

Engine

Part# 221461

OEM Warranty Repair Part for Toro

Currently unavailable

322-7

4

SCREW-HH

Part# 322-7

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.77

20-5410

5

SPACER-AXLE

Part# 20-5410

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $20.84

7-3590

6

WASHER

Part# 7-3590

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.95

234-22

7

3.50X10 SEMIPNEU TIRE

Part# 234-22

OEM Warranty Repair Part for Toro

Not available

241-118

8

Rim

Part# 241-118 (Superseded to 20-3350)

OEM Warranty Repair Part for Toro

Not available

256-241

9

BUSHING

Part# 256-241

OEM Warranty Repair Part for Toro

Not available

3272-17

10

PIN-COTTER

Part# 3272-17

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.26

302-5

11

FITTING-GREASE

Part# 302-5

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.36

3256-29

12

WASHER-FLAT

Part# 3256-29

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.92

20-5570

13

BLWR ENG MTG PLT WA

Part# 20-5570

OEM Warranty Repair Part for Toro

Not available

32152-1

14

NUT-LOCK, CONE

Part# 32152-1

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.33

23-3320

15

CASTER

Part# 23-3320

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $141.74

32544

16

Lockwasher

Part# 32544

OEM Warranty Repair Part for Toro

Currently unavailable

3217-9

18

NUT-HH

Part# 3217-9

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.41

32152-3

19

1/2-13 CONELOCK NUT

Part# 32152-3

OEM Warranty Repair Part for Toro

Not available

23-3370

20

FRT WHL SUPPORT WA

Part# 23-3370

OEM Warranty Repair Part for Toro

Not available

322-3

21

SCREW-HH

Part# 322-3

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.66

20-6950

22

Bar Height Adjustment

Part# 20-6950 (Superseded to 37-9460)

OEM Warranty Repair Part for Toro

Not available

20-3350

Wheel Assembly (Incl. Ref. #7-9 & 11)

Part# 20-3350

Note: Not illustrated

OEM Warranty Repair Part for Toro

Not available
