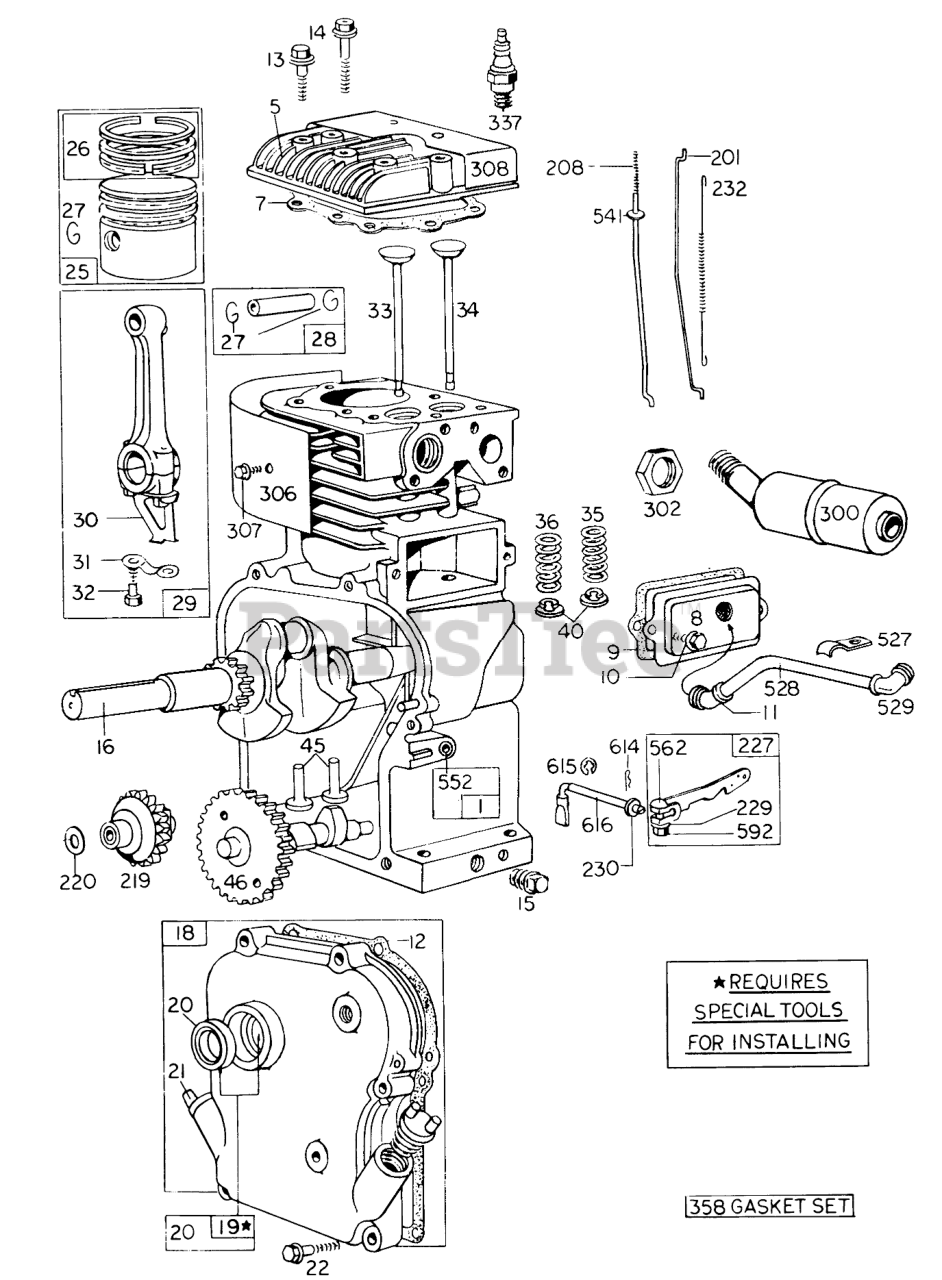

62933 - Toro Lawn Blower, 5hp (SN: 005000001 - 005999999) (1975)

Lawn Blower, 5hp

62933 - Toro Lawn Blower, 5hp (SN: 005000001 - 005999999) (1975) > Parts Diagrams (9) > ENGINE MODEL NO. 130202 TYPE 0492-01 BRIGGS & STRATTON

  • Title
211542

5

Head-Cylinder

Part# 211542 (Superseded to 691716)

OEM Warranty Repair Part for Briggs & Stratton

Not available

270383

7

Gasket-Cylinder Head

Part# 270383 (Superseded to 272157S)

Note: Included in Gasket Set, Part No. 297615

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $5.42

294178

8

Breather-Valve Chamber

Part# 294178 (Superseded to 791779)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $11.46

27549

9

Gasket Breather

Part# 27549 (Superseded to 27549S)

Note: Included in Gasket Set, Part No. 297615

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.57

93394

10

Screw

Part# 93394 (Superseded to 691666)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

66578

11

Grommet

Part# 66578 (Superseded to 692187)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.47

270080

12

Gasket (.015"Std.)

Part# 270080 (Superseded to 692213)

Note: Included in Gasket Set, Part No. 297615

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.57

270125

Gasket (.015")

Part# 270125

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $6.24

270126

Gasket (.009")

Part# 270126

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $5.76

93368

13

Screw-Cylinder Head

Part# 93368 (Superseded to 691640)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.29

93369

14

Screw-Cylinder Head

Part# 93369 (Superseded to 691659)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.91

91249

15

Plug-Pipe

Part# 91249 (Superseded to 691686)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.47

260938

16

Crankshaft

Part# 260938 (Superseded to 492088)

OEM Warranty Repair Part for Briggs & Stratton

Not available

297602

18

Cover Assy.-Crankcase

Part# 297602 (Superseded to 694350)

OEM Warranty Repair Part for Briggs & Stratton

Not available

297603

19

Bushing-Crankcase Cover

Part# 297603

Note: Requires special tools for installation.

OEM Warranty Repair Part for Briggs & Stratton

Not available

294606

20

Seal-Oil

Part# 294606 (Superseded to 294606S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.14

66768

21

Plug-Oil

Part# 66768 (Superseded to 281658S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.68

93032

22

Screw

Part# 93032 (Superseded to 692551)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.40

298904

25

Piston Assy.-Std.

Part# 298904 (Superseded to 793214)

OEM Warranty Repair Part for Briggs & Stratton

Not available

298905

Piston Assy.-010"O.S.

Part# 298905

OEM Warranty Repair Part for Briggs & Stratton

Not available

298906

Piston Assy.-020"O.S.

Part# 298906

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $91.68

298907

Piston Assy. .030" O.S.

Part# 298907

OEM Warranty Repair Part for Briggs & Stratton

Not available

298982

26

Ring Set (Std.)

Part# 298982

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $28.62

211467

Ring, Piston, Comp., Top, Std.

Part# 211467

OEM Warranty Repair Part for Toro

Currently unavailable

211468

Ring, Piston, Comp., Center, Std.

Part# 211468

OEM Warranty Repair Part for Toro

Currently unavailable

211469

Ring, Piston, Oil, Std

Part# 211469

OEM Warranty Repair Part for Toro

Currently unavailable

298983

Ring Set (.010" O.S.)

Part# 298983

OEM Warranty Repair Part for Briggs & Stratton

Not available

211504

33857B VAR.W/211102

Part# 211504

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.23

211503

Ring, Piston Comp., Center, .010" O.S.

Part# 211503

OEM Warranty Repair Part for Toro

Currently unavailable

211505

Ring, Piston, Oil, .010" O.S.

Part# 211505

OEM Warranty Repair Part for Toro

Currently unavailable

298984

Ring Set (.020" O.S.)

Part# 298984

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $23.37

211507

Ring, Piston, Comp., Top, .020"0.S.

Part# 211507

OEM Warranty Repair Part for Toro

Currently unavailable

211506

Ring, Piston, Comp., Center .020" O.S.

Part# 211506

OEM Warranty Repair Part for Toro

Currently unavailable

211508

Ring, Piston, Oil, .020" O.S.

Part# 211508

OEM Warranty Repair Part for Toro

Currently unavailable

298985

Lock-Piston Pin

Part# 298985

OEM Warranty Repair Part for Briggs & Stratton

Not available

211511

Ring, Piston, Comp. Top, .030" O.S.

Part# 211511

OEM Warranty Repair Part for Toro

Currently unavailable

211510

Ring, Piston, Comp., Center.030" O.S.

Part# 211510

OEM Warranty Repair Part for Toro

Currently unavailable

211512

Ring, Piston, Oil, .030" O.S.

Part# 211512

OEM Warranty Repair Part for Toro

Currently unavailable

26026

27

Iock-Piston Pin

Part# 26026 (Superseded to 691588)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.09

298909

28

Pin Ass-y-Piston

Part# 298909

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $6.24

298908

Pin-Piston (.005 Undersize)

Part# 298908

OEM Warranty Repair Part for Briggs & Stratton

Not available

299430

29

Rod Assy.-Connecting

Part# 299430

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $28.68

221890

30

Dipper-Conn. Rod

Part# 221890 (Superseded to 691759)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $5.76

221876

31

Lock

Part# 221876

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.09

92296

32

Screw, Conn.Rod

Part# 92296 (Superseded to 691664)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.91

211119

33

Valve Exhaust

Part# 211119 (Superseded to 211119S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $17.50

261044

34

Valve-Intake

Part# 261044 (Superseded to 261044S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $16.38

260552

35

Spring-Valve

Part# 260552 (Superseded to 690520)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.47

26478

36

1531A GIL 3 1/2HP T

Part# 26478 (Superseded to 692180)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.58

93312

40

Gear-Cam

Part# 93312 (Superseded to 692194)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $4.03

260642

45

Tappet-Valve

Part# 260642 (Superseded to 690509)

OEM Warranty Repair Part for Briggs & Stratton

Not available

211117

46

Gear Cam

Part# 211117 (Superseded to 691164)

OEM Warranty Repair Part for Briggs & Stratton

Not available

260661

201

Link-Governor

Part# 260661

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $14.88

230737

208

55335 GIL 11HP SNWT

Part# 230737

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $23.57

297656

219

Gear-Governor

Part# 297656

OEM Warranty Repair Part for Briggs & Stratton

Not available

221551

220

Washer-Thrust

Part# 221551 (Superseded to 691724)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.33

297601

227

Lever Assy.-Governor

Part# 297601

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $8.40

220680

229

Washer

Part# 220680 (Superseded to 690390)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.63

221559

230

Clamp-Casing

Part# 221559

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.63

260478

232

Spring-Governor Link

Part# 260478 (Superseded to 690545)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.47

391055

300

Muffler-Exhaust

Part# 391055

OEM Warranty Repair Part for Toro

Currently unavailable

91242

302

Locknut-Muffler

Part# 91242

OEM Warranty Repair Part for Briggs & Stratton

Not available

221511

306

Shield-Cylinder

Part# 221511 (Superseded to 694514)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $16.16

93042

307

Screw

Part# 93042 (Superseded to 691078)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.63

221512

308

Cover Cylinder Head

Part# 221512 (Superseded to 694514)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $16.16

293918

337

Plug-Spark

Part# 293918 (Superseded to 796112S)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.86

297615

358

Gasket Set

Part# 297615 (Superseded to 495603)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $23.25

221514

527

Clamp, BreatherTube

Part# 221514

OEM Warranty Repair Part for Briggs & Stratton

Not available

230722

528

Condenser

Part# 230722

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $7.47

67838

529

Grommet

Part# 67838 (Superseded to 692189)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.47

22398

541

Washer

Part# 22398 (Superseded to 691067)

OEM Warranty Repair Part for Briggs & Stratton

Not available

230732

552

Bushing-Governor

Part# 230732

OEM Warranty Repair Part for Briggs & Stratton

Not available

92613

562

Bolt

Part# 92613

OEM Warranty Repair Part for Briggs & Stratton

Not available

90356

592

Nut

Part# 90356 (Superseded to 690276)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 6 to 12 business days

Your price: $2.39

93306

614

Pin-Cotter

Part# 93306 (Superseded to 691620)

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $2.86

93307

615

Retainer-Ring

Part# 93307

OEM Warranty Repair Part for Briggs & Stratton

Usually leaves our warehouse in 1 business day

Your price: $3.62

230723

616

Crank-Governor

Part# 230723

OEM Warranty Repair Part for Briggs & Stratton

Not available
