629904x0A - Briggs & Stratton 29" Snow Thrower (2002) Electric Chute Parts Diagram

29" Snow Thrower

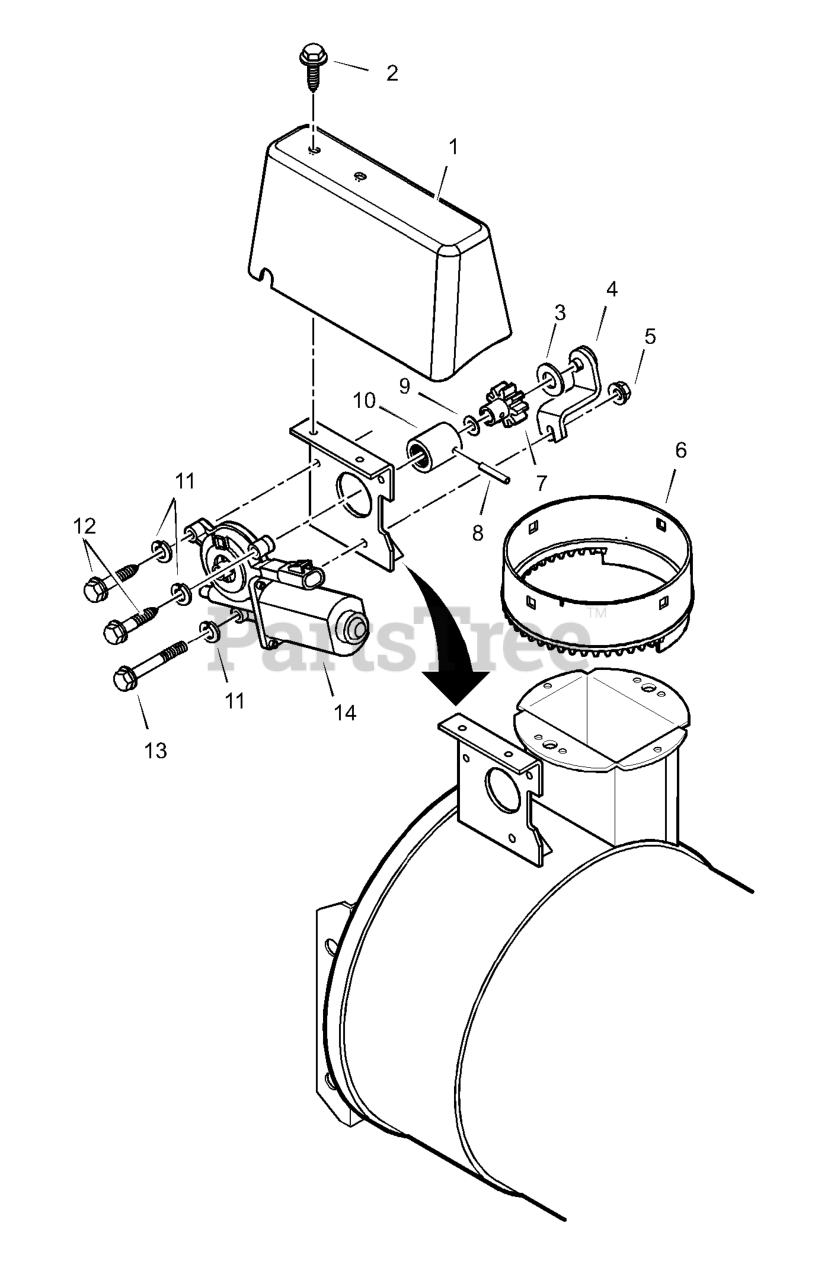

Electric Chute Parts Diagram

  • Title

1

Murray 1501347

COVER, ELECTRIC MOTOR

$46.99

$

Usually ships in 2-12 days

0

2

Murray 26X263MA

SCREW

$4.99

$

In Stock, only 1 left!

0

3

Murray 17X185

WASHER
(Superseded to 703326)

$3.99

$

Usually ships in 2-12 days

0

4

Murray 1501396

ASSEMBLY, BRACE CHUTE GEAR

$18.99

$

Usually ships in 2-12 days

0

5

Murray 15X143MA

NUT

$4.99

$

In Stock, only 4 left!

0

6

Murray 1501476

RING, ELECTRIC OUTER GEAR

$

$

Not available

7

Murray 1501067MA

GEAR

$17.99

$

In Stock, only 3 left!

0

8

Murray 032X75MA

PIN, SPRING

$3.99

$

Usually ships in 2-12 days

0

9

Murray 1501430

RING, RETAINER

$

$

Not available

10

Murray 1501341

ADAPTER, CHUTE GEAR

$8.99

$

Usually ships in 2-12 days

0

11

Murray 018X30

WASHER, SPLIT

$3.99

$

Usually ships in 2-12 days

0

12

Murray 26X251

SCREW

$

$

Currently unavailable

13

Murray 001X90MA

BOLT, HEX
(Superseded to 703588)

$3.99

$

Usually ships in 2-12 days

0

14

Murray 1501340MA

MOTOR, ELECTRIC CHUTE

$277.99

$

Usually ships in 2-12 days

0
