629904x85B - Murray 29" Snow Thrower (2001) Drive Parts Diagram

29" Snow Thrower

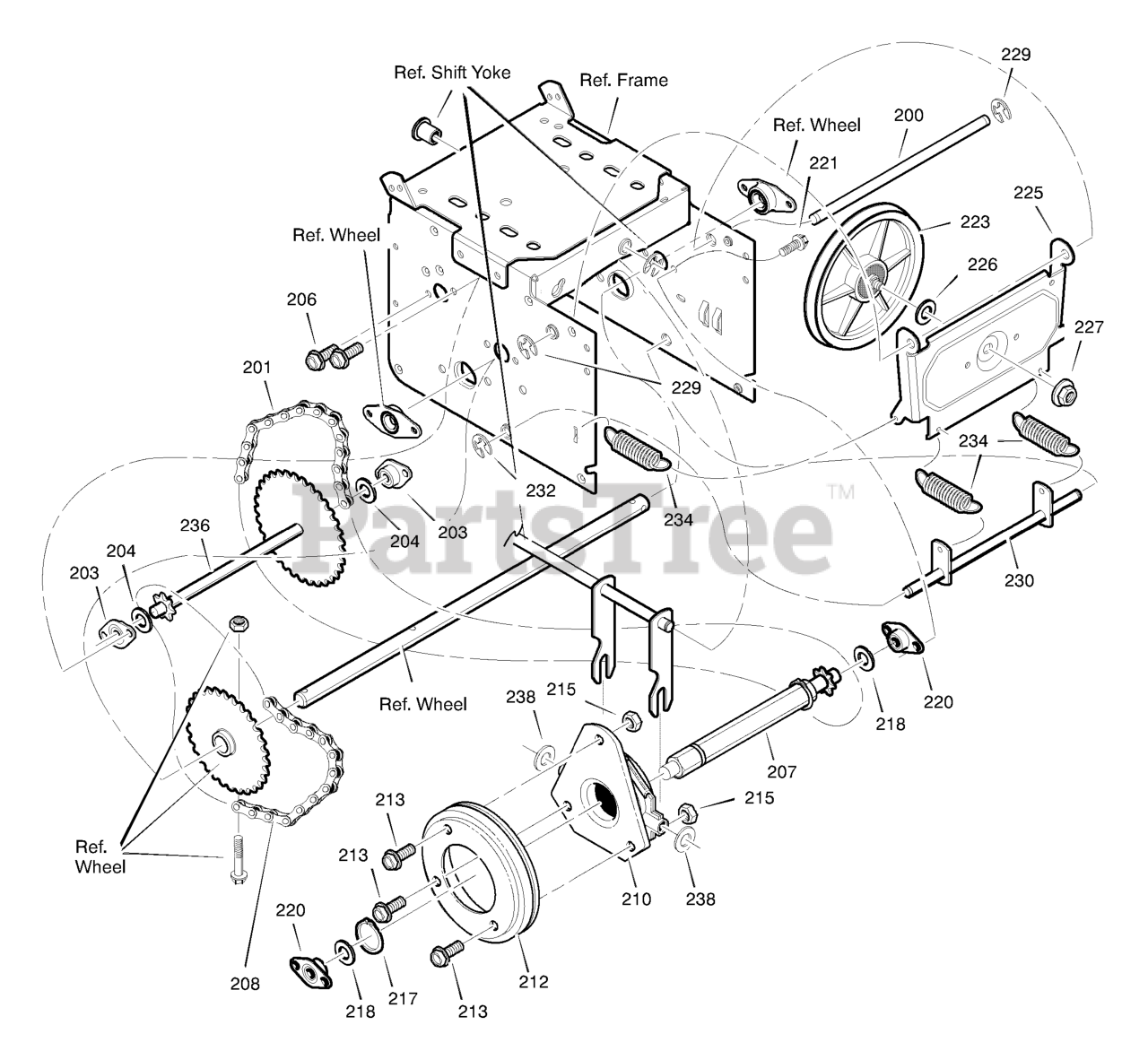

Drive Parts Diagram

  • Title

200

Murray 1501086

LF AXLE, SWING PLATE YZ

$

$

Currently unavailable

201

Murray 579851MA

CHAIN, ROLLER 19.00 LG

$21.99

$

In Stock, only 1 left!

0

203

Murray 579850MA

RETAINER, BEARING

$8.49

$

Usually ships in 2-12 days

0

--

Murray 579863MA

BEARING

$14.99

$

In Stock, only 2 left!

0

204

Murray 579858MA

WASHER

$4.49

$

In Stock, only 2 left!

0

206

Murray 780055MA

SCREW, TAP 5/16-18 x 0.5
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

207

Murray 1501101

ASSY, HEX SHAFT

$31.99

$

Usually ships in 2-12 days

0

208

Murray 579868MA

CHAIN, ROLLER 18.00 LG

$20.99

$

In Stock, only 1 left!

0

210

Murray 337029MA

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)

$39.99

$

In Stock, Qty 6

0

212

Murray 53830

WHEEL, FRICTION DISC

$27.99

$

In Stock, Qty 20+

0

213

Murray 001X38MA

SCREW, 1/4-20 x 0.63

$4.49

$

In Stock, Qty 20+

0

215

Murray 303008MA

NUT, KEPS HEX 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, Qty 18

0

217

Murray 579859MA

RING, RETEXT

$4.49

$

Usually ships in 2-12 days

0

218

UNKNOWN

$

$

Not available

220

Murray 579850MA

RETAINER, BEARING

$8.49

$

Usually ships in 2-12 days

0

--

Murray 579863MA

BEARING

$14.99

$

In Stock, only 2 left!

0

221

Murray 780055MA

SCREW, TAP 5/16-18 X .50
(Superseded to 703985)

$4.49

$

In Stock, Qty 15

0

223

Murray 1501063

ASSY, FRICTION PULLY

$

$

Not available

225

Murray 1501057 YZ

LF PLATE, SWINGING YZ
(Superseded to 1501057YZMA)

$37.99

$

In Stock, only 1 left!

0

226

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, only 2 left!

0

227

Murray 15X114

NUT, FLANGE LOCK 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, only 2 left!

0

230

Murray 1501107 YZ

LF ASSY, SPRING LINK YZ

$21.99

$

In Stock, only 1 left!

0

232

Murray 11X30MA

RETAINER, RING

$4.49

$

In Stock, only 2 left!

0

234

Murray 165X112MA

SPRING, EXTENSION
(Superseded to 1736469YP)

$6.99

$

In Stock, Qty 6

0

236

Murray 1501102

WLD, INTERMED SPROCKET 33T/7T
(Superseded to 1501102MA)

$80.99

$

Usually ships in 2-12 days

0

238

Murray 71074

WASHER, FLAT
(Superseded to 71074MA)

$

$

Not available
