629953x54A - Murray 29" Snow Thrower (2005) Handle Assembly Parts Diagram

29" Snow Thrower

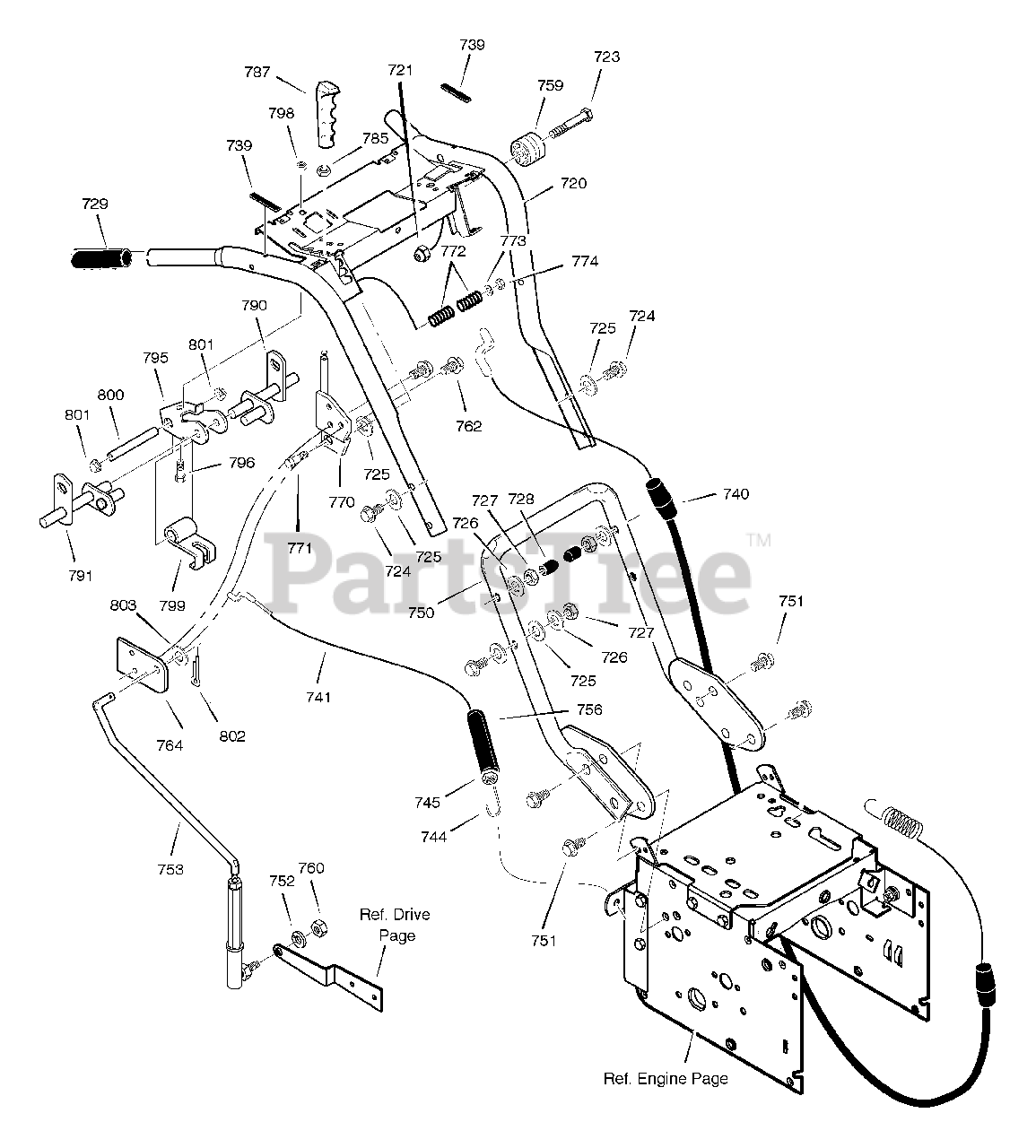

Handle Assembly Parts Diagram

  • Title

720

Murray 1501381E717

ASSEMBLY, HANDLE

$

$

Currently unavailable

721

Murray 15X116MA

NUT, HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

723

Murray 01X129

BOLT

$3.49

$

Usually ships in 2-12 days

0

724

Murray 7288MA

SCREW
(Superseded to 5025013X24SM)

$4.49

$

In Stock, Qty 5

0

725

Murray 71072

WASHER

$

$

Not available

726

Murray 71062

WASHER

$

$

Not available

727

Murray 71044

NUT

$3.49

$

Usually ships in 2-12 days

0

728

Murray 7289MA

STOP, PLASTIC

$4.99

$

Usually ships in 2-12 days

0

729

Murray 337399MA

GRIP, HANDLE

$5.99

$

Usually ships in 2-12 days

0

739

Murray 4049MA

BUMPER

$

$

Not available

740

Murray 1501363MA

CABLE, DRIVE

$41.99

$

Usually ships in 2-12 days

0

741

Murray 1501451MA

CABLE, AUGER

$21.99

$

Usually ships in 2-12 days

0

744

Murray 1673MA

SPRING, AUGER CLUTCH

$9.49

$

In Stock, Qty 9

0

745

Murray 15X145MA

NUT, HEX - 1/4-20
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

750

Murray 1501449E717

HANDLE, LOWER

$

$

Currently unavailable

751

Murray 25X021MA

SCREW
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

753

Murray 1501465

ASSEMBLY, ROD

$129.99

$

Usually ships in 2-12 days

0

759

Murray 579860MA

SPOOL, CABLE

$6.49

$

In Stock, only 2 left!

0

756

Murray 308146MA

BOOT, SPRING

$6.99

$

In Stock, Qty 8

0

760

Murray 71042MA

NUT, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

762

Murray 310169MA

SCREW 1/4-20 X 0.63
(Superseded to 703054)

$4.49

$

In Stock, Qty 14

0

764

Murray 1501367 YZ

BRACKET, CONTROL

$

$

Currently unavailable

770

Murray 1501375

BRACKET, SHIFT

$

$

Currently unavailable

771

Murray 01X157

SCREW

$3.49

$

Usually ships in 2-12 days

0

772

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

WASHER

$

$

Not available

774

Murray 71046

NUT, HEX, 3/8-16
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

785

Murray 71045

NUT, HEX, 3/8-16

$

$

Not available

787

Murray 304728MA

KNOB, SHIFT

$13.99

$

Usually ships in 2-12 days

0

790

Murray 578926E701

ROD, ASSEMBLY LH

$80.99

$

Usually ships in 2-12 days

0

791

Murray 578924E701

ROD, ASSEMBLY RH

$75.99

$

In Stock, only 1 left!

0

795

Murray 579002

BRACKET, CAM

$

$

Currently unavailable

796

Murray 002X53MA

SCREW
(Superseded to 703159)

$3.99

$

In Stock, Qty 20+

0

798

Murray 71038MA

NUT, NYLOCK
(Superseded to 703902)

$3.99

$

In Stock, Qty 20+

0

799

Murray 8417MA

CAM LOCK

$36.99

$

In Stock, only 2 left!

0

800

Murray 584673MA

PIN, SPRING PIVOT

$19.99

$

Usually ships in 2-12 days

0

801

Murray 73664MA

NUT, PUSH ON

$5.49

$

Usually ships in 2-12 days

0

802

Murray 71081MA

PIN, COTTER

$3.49

$

Usually ships in 2-12 days

0

803

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0
