630 (590-630-100) - Cub Cadet 48" Rotary Cutter att 48-Inch Rotary Cutter Parts Diagram

48" Rotary Cutter

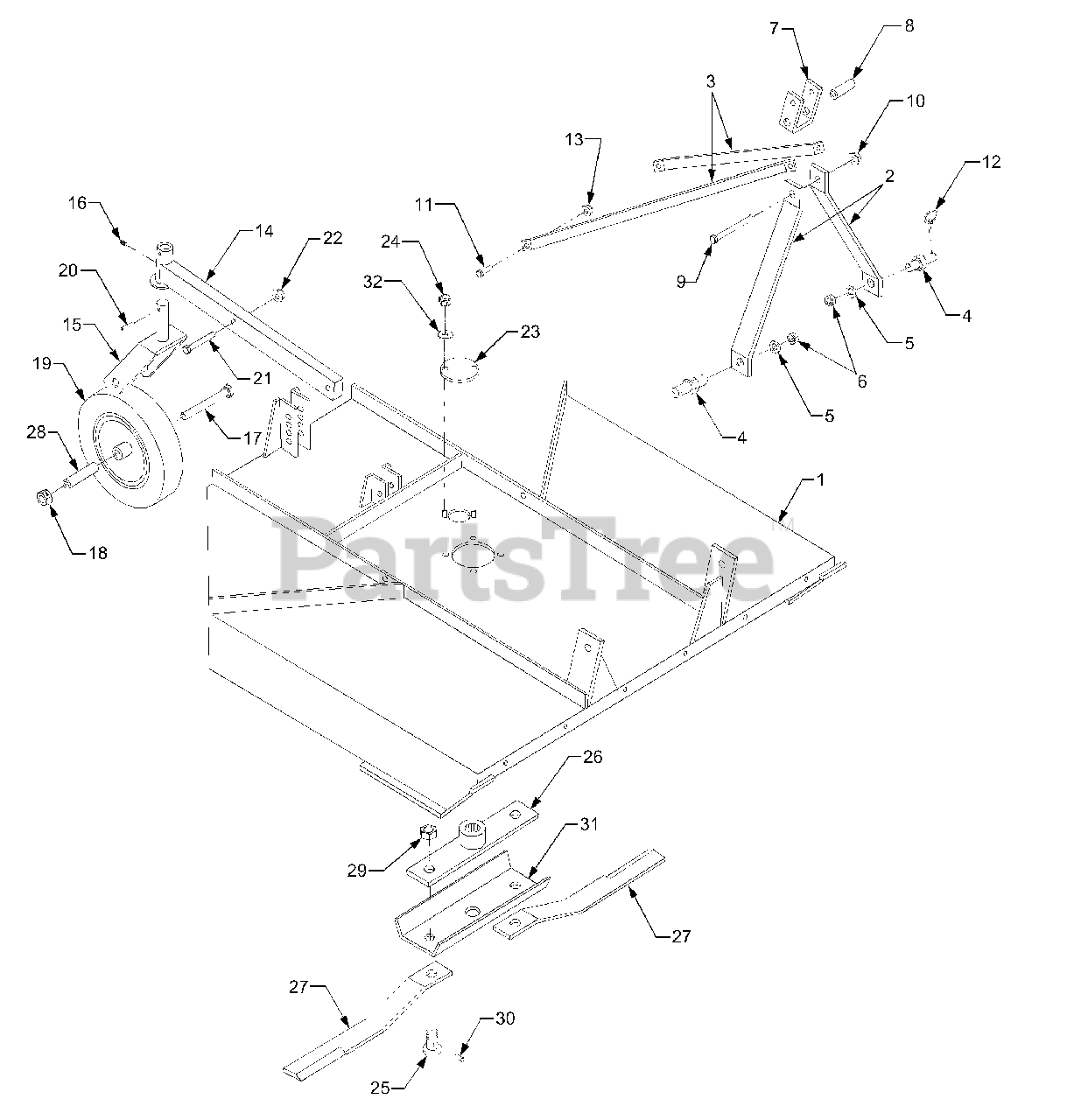

48-Inch Rotary Cutter Parts Diagram

  • Title

1

Cub Cadet BF-015-5800

Frame Complete

$

$

Not available

2

Cub Cadet BF-005-5803

Vertical Support

$

$

Not available

3

Cub Cadet BF-015-5804

Horizontal Support

$

$

Not available

4

Cub Cadet BF-502-858B

Hitch Pins

$

$

Not available

5

Cub Cadet BF-502-860B

Hex Nut, 5/8

$

$

Not available

6

Cub Cadet BF-502-859B

Lock Washer, 5/8

$

$

Not available

7

Cub Cadet BF-000-6828

Top Hitch Plate

$

$

Not available

8

Cub Cadet BF-005-5809

Inner Spacer

$

$

Not available

9

Cub Cadet BF-190-1228

Bolt, 5/8 x 7.0

$

$

Not available

10

Cub Cadet BF-502-807B

Stover Nut, 5/8

$

$

Not available

11

Cub Cadet BF-000-2437

Bolt, 14mm x 40

$

$

Not available

12

Cub Cadet BF-001-8266

Linch Pin

$

$

Not available

13

Cub Cadet BF-000-7224

Stover Nut 14mm

$

$

Not available

14

Cub Cadet BF-000-5523

Wheel Arm

$

$

Not available

15

Cub Cadet BF-000-5531

Wheel Yoke

$

$

Not available

16

Cub Cadet BF-000-6635

Grease Fitting

$

$

Not available

17

Cub Cadet BF-005-5819

Bolt, 3/4 x 7.0

$

$

Not available

18

Cub Cadet 712-0301

Jam Nut, 3/4

$7.49

$

In Stock, only 1 left!

0

19

Cub Cadet BF-005-5821

Laminated Tire

$

$

Not available

20

Cub Cadet BF-000-5521

Roll Pin, 10mm x 40

$

$

Not available

21

Cub Cadet BF-000-8029

Bolt, 16mm x 90

$

$

Not available

22

Cub Cadet BF-000-5581

Stover Nut, 16mm

$

$

Not available

23

Cub Cadet BF-005-5826

Access Plate

$

$

Not available

24

Cub Cadet BF-001-4106

Nylon Insert Lock Nut, 10mm

$

$

Not available

25

Cub Cadet BF-000-5956

Blade Bolt

$

$

Not available

26

Cub Cadet BF-005-5831

Blade Rotor w/Bushing

Note: No Longer Available

$

$

Not available

27

Cub Cadet BF-000-5627

Blade

Note: No Longer Available

$

$

Not available

28

Cub Cadet BF-005-5836

Wheel Spacer

$

$

Not available

29

Cub Cadet BF-000-5570

Nut, 27mm

$

$

Not available

30

Cub Cadet BF-000-5635

Blade Stop

$

$

Not available

31

Cub Cadet BF-005-5842

Stump Jumper

$

$

Not available

32

Cub Cadet BF-000-1047

Flat Washer, 10mm

$

$

Not available
