630 SUPER II - Jonsered Chainsaw (1996-09) CARBURETOR DETAILS Parts Diagram

Chainsaw

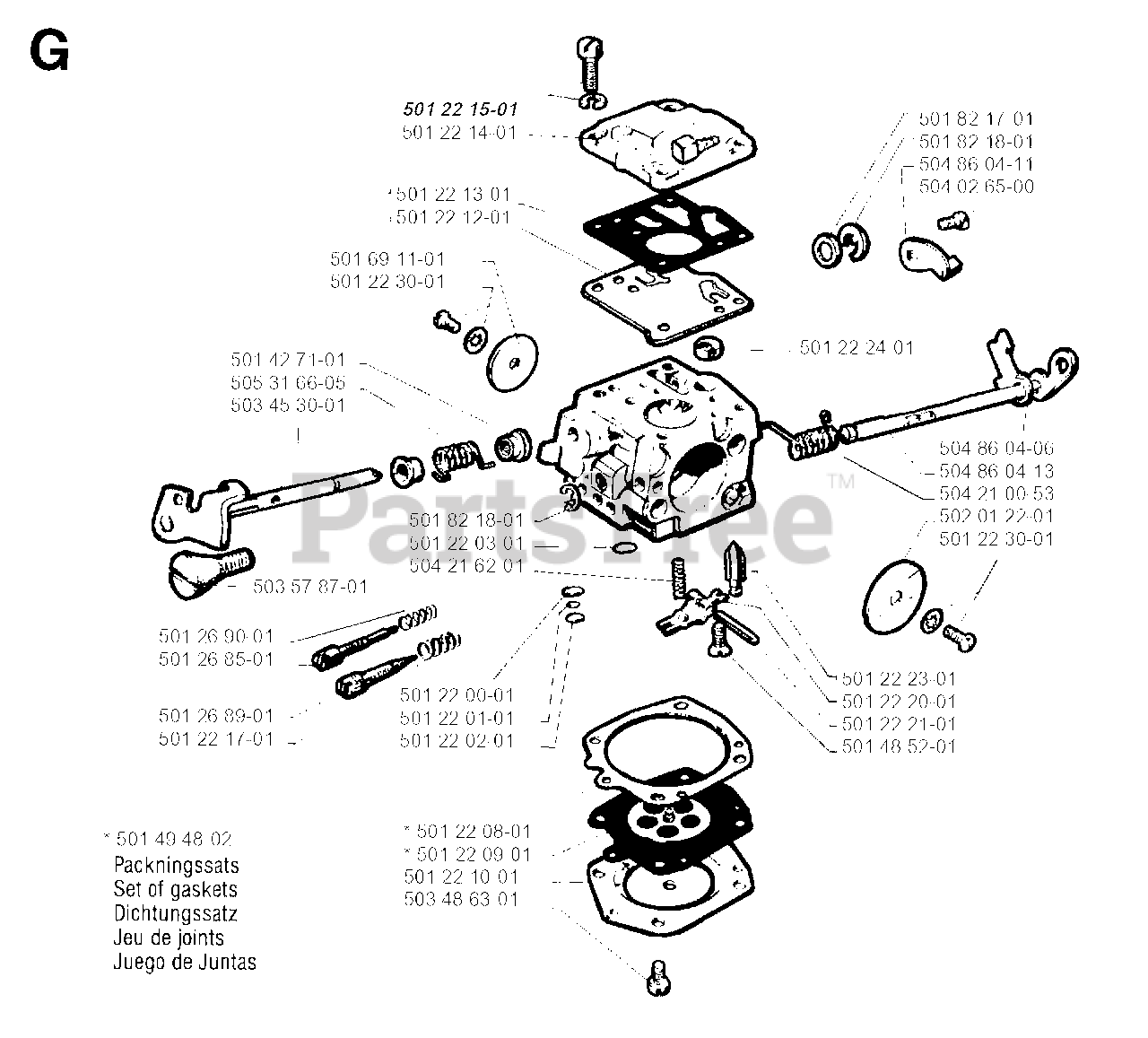

CARBURETOR DETAILS Parts Diagram

  • Title

5014271-01

Jonsered 501427101

BUSHING

$2.99

$

Usually ships in 3-10 days

0

5053166-05

Jonsered 505316605

SPRING

$9.49

$

Usually ships in 3-10 days

0

5034530-01

Jonsered 503453001

THROTTLE SHAFT

$

$

Not available

5035787-01

Jonsered 503578701

SCREW

$8.49

$

Usually ships in 3-10 days

0

5012690-01

Jonsered 501269001

SPRING

$5.99

$

Usually ships in 3-10 days

0

5012685-01

Jonsered 501268501

IDLE ADJ. SCREW

$28.99

$

Usually ships in 3-10 days

0

5012689-01

Jonsered 501268901

NEEDLE H

$12.99

$

Usually ships in 3-10 days

0

5012217-01

Jonsered 501221701

SPRING

$3.49

$

In Stock, Qty 8

0

5034863-01

Jonsered 503486301

COVER SCREW

$4.99

$

In Stock, only 2 left!

0

5012210-01

Jonsered 501221001

CAP

$4.99

$

In Stock, Qty 5

0

5012209-01

Jonsered 501220901

METERING DIAPHRAGM

$25.99

$

In Stock, Qty 11

0

5012208-01

Jonsered 501220801

GASKET, METERING SIDE

$24.99

$

Usually ships in 3-10 days

0

5012202-01

Jonsered 501220201

PLUG (TIL 179-60X)

$

$

Not available

5012201-01

Jonsered 501220101

LOCKING RING

$

$

Not available

5012200-01

Jonsered 501220001

SCREEN

$

$

Not available

5042162-01

Jonsered 504216201

SPRING

$

$

Not available

5012203-01

Jonsered 501220301

PLUG

$

$

Not available

5018218-01

Jonsered 501821801

RETAINING RING

$8.07

$

Usually ships in 3-10 days

0

5012230-01

Jonsered 501223001

SCREW
(Superseded to 503652701)

$5.99

$

In Stock, Qty 8

0

5016911-01

Jonsered 501691101

THROTTLE FLAP

$6.99

$

In Stock, Qty 7

0

5012212-01

Jonsered 501221201

FUEL PUMP DIAPHRAGM

$11.99

$

Usually ships in 3-10 days

0

5012213-01

Jonsered 501221301

GASKET, PUMP SIDE

$6.99

$

In Stock, only 3 left!

0

5012214-01

Jonsered 501221401

CAP

$34.99

$

Usually ships in 3-10 days

0

5012215-01

Jonsered 501221501

SCREW

$4.99

$

In Stock, Qty 7

0

5012224-01

Jonsered 501222401

FILTER
(Superseded to 578004601)

$

$

Not available

5014852-01

Jonsered 501485201

SCREW

$3.49

$

Usually ships in 3-10 days

0

5012221-01

Jonsered 501222101

SHAFT

$7.49

$

In Stock, only 1 left!

0

5012220-01

Jonsered 501222001

LEVER

$

$

Not available

5012223-01

Jonsered 501222301

NEEDLE

$13.99

$

In Stock, only 1 left!

0

5012230-01

Jonsered 501223001

SCREW
(Superseded to 503652701)

$5.99

$

In Stock, Qty 8

0

5020122-01

Jonsered 502012201

CHOKE FLAP

$

$

Not available

5042100-53

Jonsered 504210053

SPRING

$

$

Not available

5048604-13

Jonsered 504860413

CHOKE SHAFT

$

$

Not available

5048604-06

Jonsered 504860406

LEVER

$

$

Not available

5040265-00

Jonsered 504026500

SCREW

$7.99

$

Usually ships in 3-10 days

0

5048604-11

Jonsered 504860411

LEVER

$

$

Not available

5018218-01

Jonsered 501821801

RETAINING RING

$8.07

$

Usually ships in 3-10 days

0

5018217-01

Jonsered 501821701

WASHER

$5.99

$

In Stock, only 1 left!

0
