630 SUPER II - Jonsered Chainsaw (1996-09) CHAIN BRAKE Parts Diagram

Chainsaw

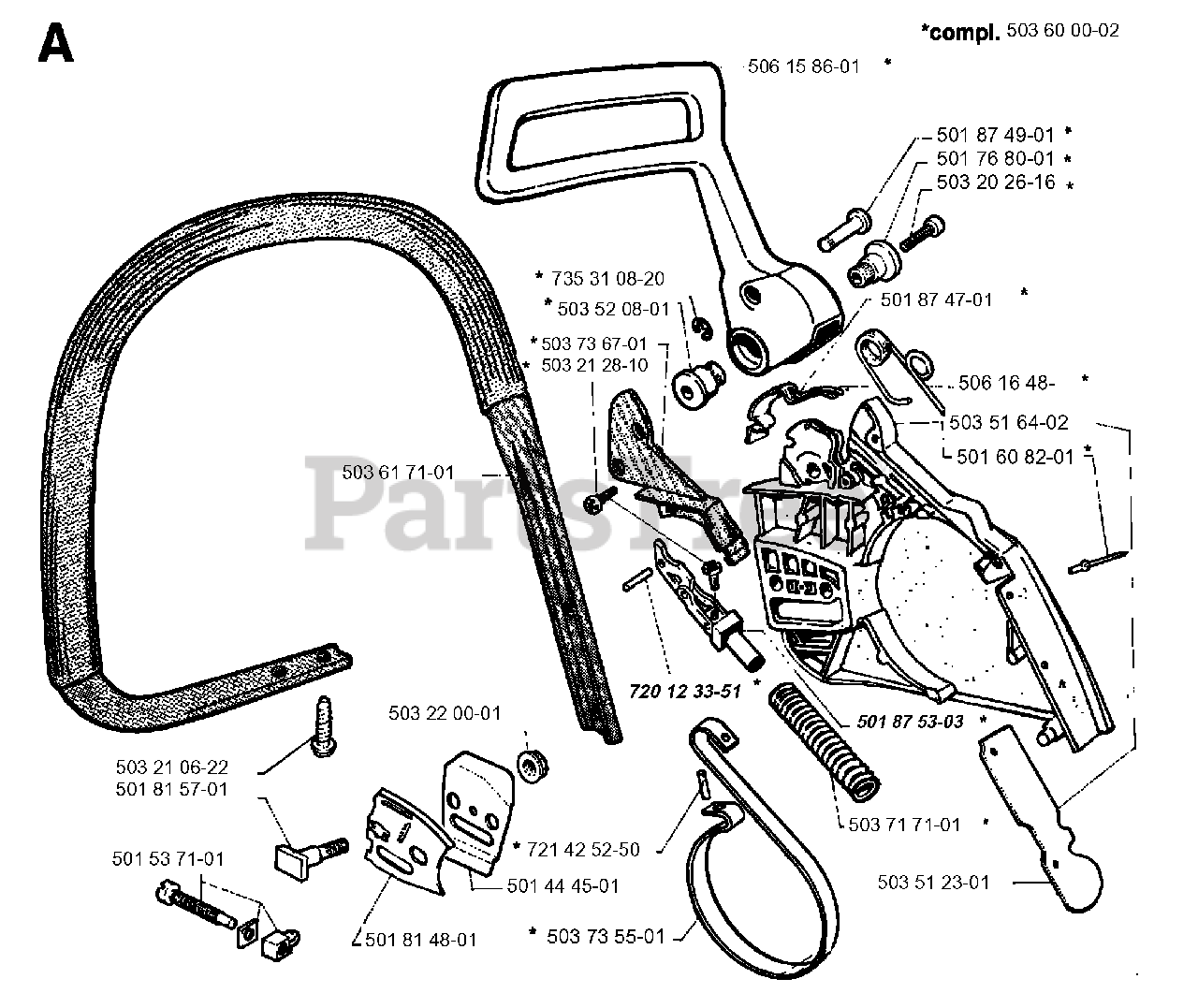

CHAIN BRAKE Parts Diagram

  • Title

5032106-22

Jonsered 503210622

SCREW

$6.99

$

In Stock, Qty 9

0

5018157-01

Jonsered 501815701

BOLT

$7.49

$

In Stock, only 4 left!

0

5015371-01

Jonsered 501537101

CHAIN TENSIONER

$24.99

$

In Stock, Qty 13

0

5018148-01

Jonsered 501814801

PROTECTION PLATE

$8.99

$

In Stock, Qty 11

0

5032200-01

Jonsered 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

5036171-01

Jonsered 503617101

HANDLE

$

$

Not available

7353108-20

Jonsered 735310820

E-RING 4

$4.99

$

In Stock, Qty 20+

0

5035208-01

Jonsered 503520801

PIVOT SLEEVE L

$12.99

$

Usually ships in 3-10 days

0

5037367-01

Jonsered 503736701

COVER

$

$

Not available

5032128-10

Jonsered 503212810

SCREW

$3.99

$

In Stock, Qty 20+

0

7201233-51

Jonsered 720123351

HARDENED PIN

$5.99

$

In Stock, only 3 left!

0

7214252-50

Jonsered 721425250

SPIRAL PIN 4X12

$5.99

$

In Stock, Qty 7

0

5014445-01

Jonsered 501444501

GUIDE PLATE

$9.99

$

In Stock, Qty 12

0

5037355-01

Jonsered 503735501

BRAKE BAND

$

$

Not available

5035123-01

Jonsered 503512301

SPLASH GUARD

$

$

Not available

5037171-01

Jonsered 503717101

BRAKE SPRING

$10.99

$

Usually ships in 3-10 days

0

5018753-03

Jonsered 501875303

KNEE LINK

$34.99

$

In Stock, only 3 left!

0

5016082-01

Jonsered 501608201

POP RIVET

$2.49

$

Usually ships in 3-10 days

0

5035164-02

Jonsered 503516402

CLUTCH COVER

$

$

Not available

5061648-

Jonsered 5061648

No Description Available

$

$

Not available

5018747-01

Jonsered 501874701

SPRING

$7.99

$

In Stock, Qty 14

0

5032026-16

Jonsered 503202616

SCREW

$5.99

$

In Stock, Qty 7

0

5017680-01

Jonsered 501768001

PIVOT SLEEVE R

$9.99

$

In Stock, Qty 13

0

5018749-01

Jonsered 501874901

PIVOT PIN
(Superseded to 503802701)

$9.49

$

In Stock, only 1 left!

0

5061586-01

Jonsered 506158601

HANDGUARD

$

$

Not available

5036000-02

Jonsered 503600002

CHAIN BRAKE, CPL.

$

$

Not available
