631 (590-631-100) - Cub Cadet 60" Mower Deck, Rear Mount att 60" Finish Mower Gearbox Parts Diagram

60" Mower Deck, Rear Mount

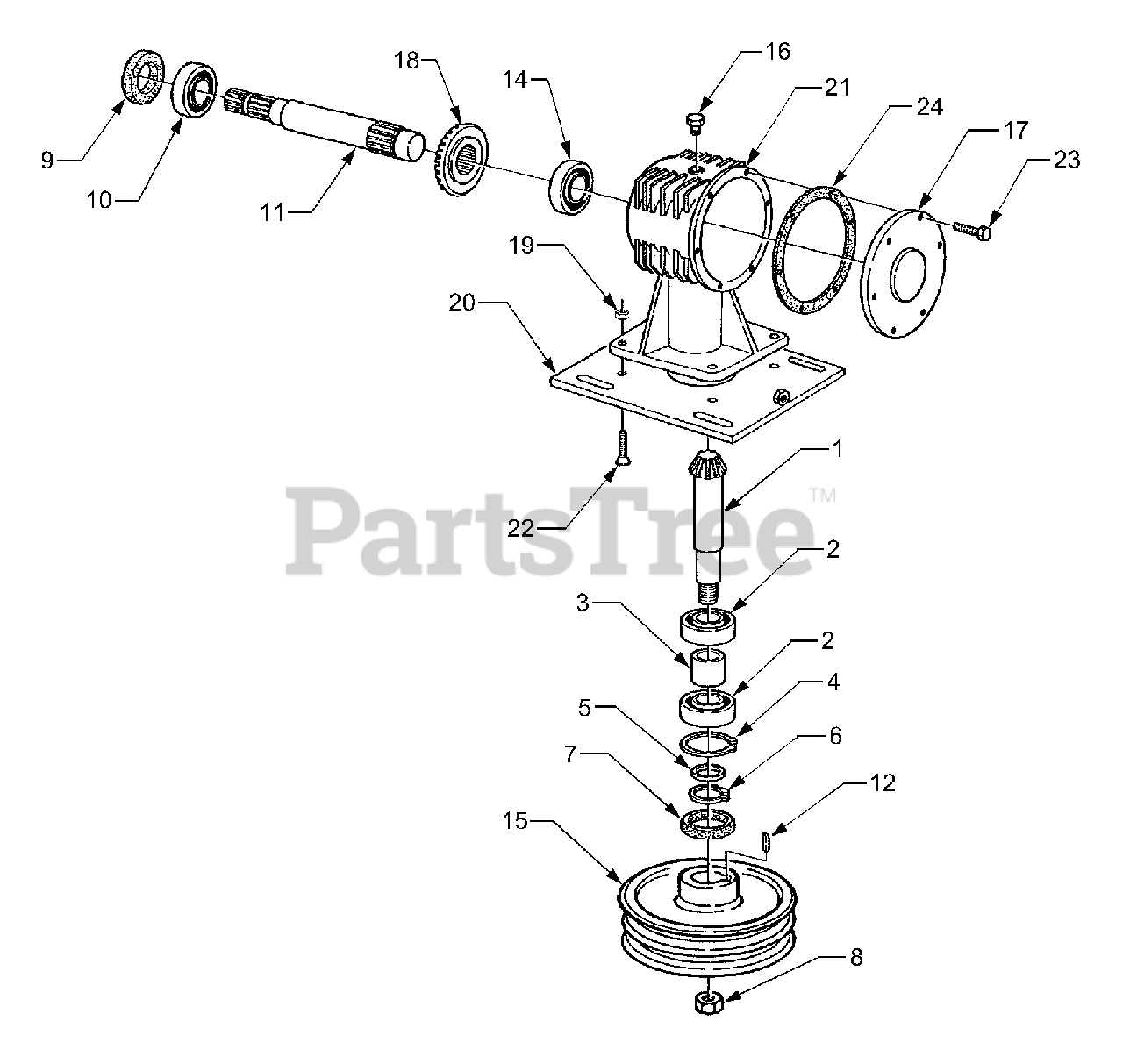

60" Finish Mower Gearbox Parts Diagram

  • Title

Cub Cadet BF-050-0641

Gearbox Complete
(Superseded to BF-050-0642)

$

$

Not available

1

Cub Cadet BF-005-8478

Pinion Gear

$

$

Not available

2

Cub Cadet BF-001-2149

Bearing

$

$

Not available

3

Cub Cadet BF-000-6687

Spacer

$

$

Not available

4

Cub Cadet BF-000-1154

Snap Ring (Inner)

$

$

Not available

5

Cub Cadet BF-000-6685

Spacer Washer

$

$

Not available

6

Cub Cadet BF-000-8138

Snap Ring, (Outer)

$

$

Not available

7

Cub Cadet BF-000-6684

Oil Seal

$

$

Not available

8

Cub Cadet BF-000-6698

Nut, 25mm

$20.99

$

In Stock, only 1 left!

0

9

Cub Cadet BF-000-2295

Oil Seal

$26.99

$

Usually ships in 3-6 days

0

10

Cub Cadet BF-002-5332

Bearing

$

$

Not available

11

Cub Cadet BF-005-8465

Input Shaft

$

$

Not available

12

Cub Cadet BF-000-6689

Key

$

$

Not available

14

Cub Cadet BF-005-8472

Bearing

$

$

Not available

15

Cub Cadet BF-000-6692

Pulley

$

$

Not available

16

Cub Cadet BF-000-1107

Breather, Cap

$

$

Not available

17

Cub Cadet BF-000-6656

Gearbox Cover

$

$

Not available

18

Cub Cadet BF-005-8470

Ring Gear

$

$

Not available

19

Cub Cadet BF-003-0064

Nut, 12mm

$

$

Not available

20

Cub Cadet BF-000-6541

Gearbox Support Plate

$

$

Not available

21

Cub Cadet BF-000-6658

Gearbox Housing

$

$

Not available

22

Cub Cadet BF-004-6334

Bolt, 12mm x 45

$

$

Not available

23

Cub Cadet BF-000-6349

Bolt, 10mm x 20

$

$

Not available

24

Cub Cadet BF-003-0193

Gasket .012 Thk

$

$

Not available

Cub Cadet BF-013-0193

Gasket .028 Thk

$

$

Not available

$

$

Not available
