631 (590-631-100) - Cub Cadet 60" Mower Deck, Rear Mount att 60" Mower Deck Parts Diagram

60" Mower Deck, Rear Mount

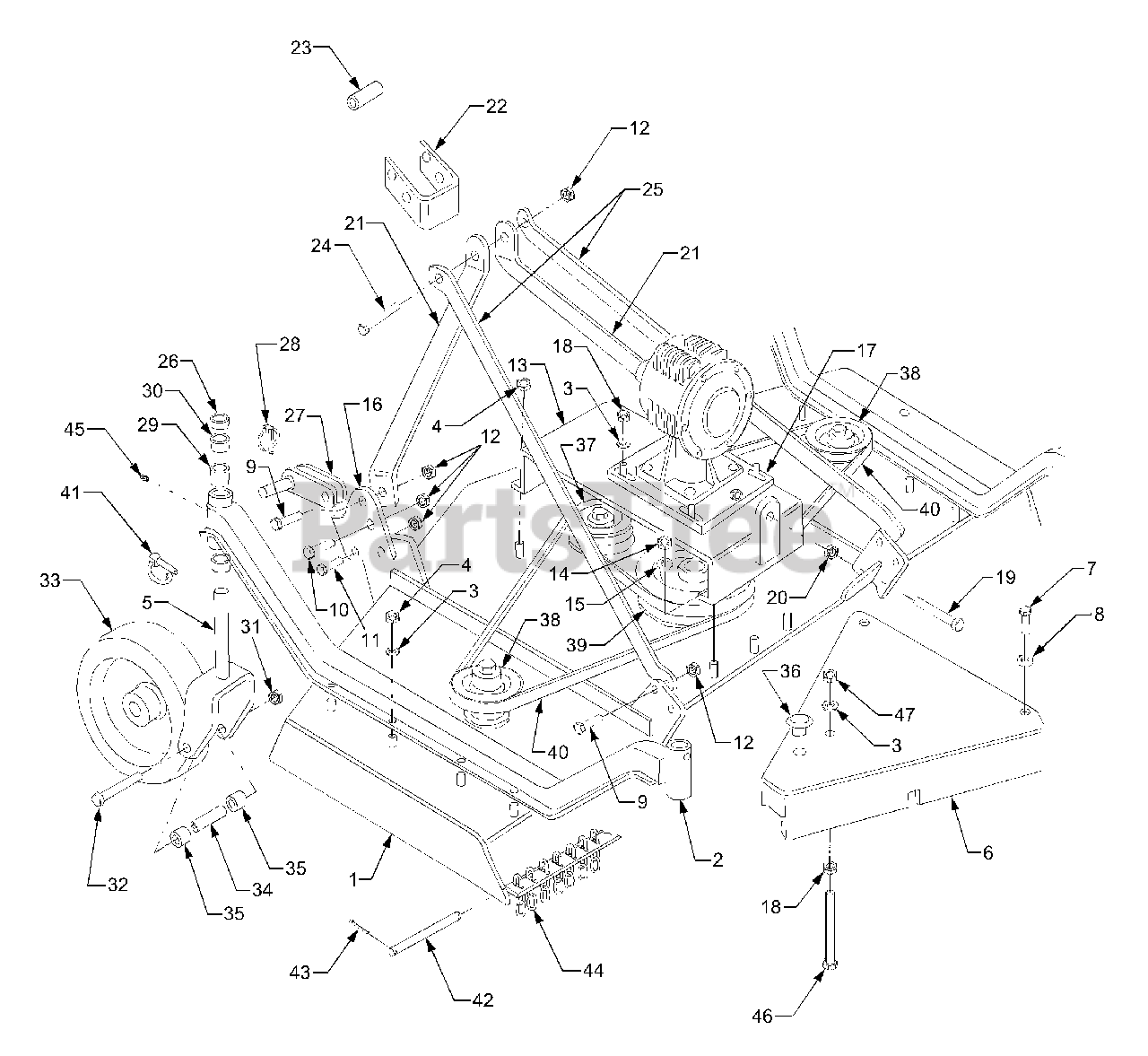

60" Mower Deck Parts Diagram

  • Title

1

Cub Cadet BF-020-6903

Frame

$

$

Not available

2

Cub Cadet BF-020-6939

Wheel Arm

$

$

Not available

3

Cub Cadet BF-003-0157

Flat Washer, 10mm

$

$

Not available

4

Cub Cadet BF-003-0156

Nut, 10mm

$

$

Not available

5

Cub Cadet BF-000-6946

Wheel Yoke

$155.99

$

Usually ships in 3-6 days

0

6

Cub Cadet BF-020-6989

Belt Shield

$

$

Not available

7

Cub Cadet BF-003-3176

Bolt, 10 x 25

$

$

Not available

8

Cub Cadet BF-000-2034

Flat Washer, 10mm

$

$

Not available

9

Cub Cadet BF-000-6578

Bolt, 16 x 45

$

$

Not available

10

Cub Cadet BF-003-3218

Bolt, 16 x 55

$

$

Not available

11

Cub Cadet BF-000-2365

Bolt, 16 x 50

$

$

Not available

12

Cub Cadet BF-000-5581

Nut, 16mm

$

$

Not available

13

Cub Cadet BF-000-6875

Central Plate

$

$

Not available

14

Cub Cadet BF-000-1279

Nut, 10mm

$

$

Not available

15

Cub Cadet BF-000-1280

Lock Washer, 10mm

$

$

Not available

16

Cub Cadet BF-000-6540

Lower Hitch Block Plate

$

$

Not available

17

Cub Cadet BF-000-6541

Gearbox Flange

$

$

Not available

18

Cub Cadet BF-001-4106

Nut, 10mm

$

$

Not available

19

Cub Cadet BF-000-6547

Bolt, 12 x 100

$

$

Not available

20

Cub Cadet BF-000-1106

Nut, 12mm

$

$

Not available

21

Cub Cadet BF-000-6822

Top Hitch Support

$

$

Not available

22

Cub Cadet BF-000-6828

Top Hitch Plate

$

$

Not available

23

Cub Cadet BF-008-5057

Spacer

$

$

Not available

24

Cub Cadet BF-000-6834

Bolt, 16 x 150

$

$

Not available

25

Cub Cadet BF-020-6570

Top Hitch Arm

$

$

Not available

26

Cub Cadet BF-000-6589

1/4" Height Adjustment Spacer

$17.99

$

Usually ships in 3-6 days

0

27

Cub Cadet BF-000-6573

Hitch Block

$

$

Not available

28

Cub Cadet BF-001-8266

Klik Pin

$

$

Not available

29

Cub Cadet BF-000-6586

1" Spacer

$16.99

$

Usually ships in 3-6 days

0

30

Cub Cadet BF-000-6587

1/2" Spacer

$21.99

$

Usually ships in 3-6 days

0

31

Cub Cadet BF-003-0358

Nut, 14mm

$6.49

$

Usually ships in 3-6 days

0

32

Cub Cadet BF-000-6619

Bolt, 14 x 150

$

$

Not available

33

Cub Cadet BF-000-6923Y

Hard Tire

$

$

Not available

34

Cub Cadet BF-000-8841Y

Inner Bushing

$

$

Not available

35

Cub Cadet BF-000-8842Y

Outer Spacer
(Superseded to BF-000-6585)

$

$

Not available

36

Cub Cadet BF-000-6647

Plastic Cap

$

$

Not available

37

Cub Cadet BF-000-6621

Pulley

$

$

Not available

38

Cub Cadet BF-000-6622

Pulley

$

$

Not available

39

Cub Cadet BF-000-6692

Pulley

$

$

Not available

40

Cub Cadet BF-000-6693B

`V' Belt

$

$

Not available

41

Cub Cadet BF-000-8783

Locking Pin

$11.99

$

In Stock, only 2 left!

0

42

Cub Cadet BF-020-6762

Chain Rod

$

$

Not available

43

Cub Cadet BF-004-4156

Cotter Pin

$

$

Not available

44

Cub Cadet BF-000-6764

Chain

$

$

Not available

45

Cub Cadet BF-000-1065

Grease Fitting

$3.99

$

Usually ships in 3-6 days

0

46

Cub Cadet BF-000-6943

Bolt, 10 x 120

$

$

Not available

47

Cub Cadet BF-001-4106

Nut, 10mm

$

$

Not available

$

$

Not available
