631 (590-631-100) - Cub Cadet 60" Mower Deck, Rear Mount 60" Mower Blade Spindle Parts Diagram

60" Mower Deck, Rear Mount

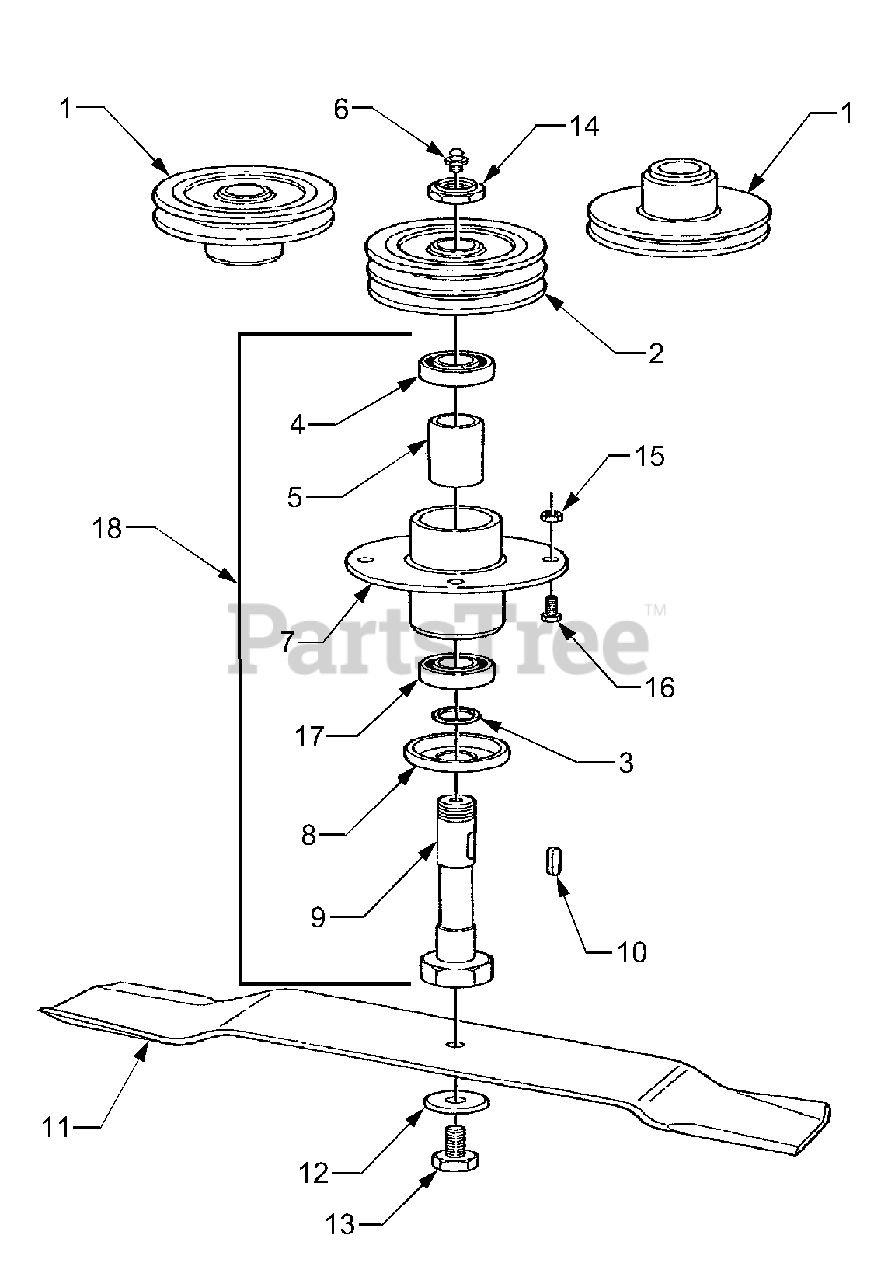

60" Mower Blade Spindle Parts Diagram

  • Title

1

Cub Cadet BF-000-6622

Pulley

$

$

Not available

2

Cub Cadet BF-000-6621

Pulley

$

$

Not available

3

Cub Cadet BF-000-6606

Spacer Washer

$

$

Not available

4

Cub Cadet BF-000-6634

Bearing

$35.99

$

In Stock, only 2 left!

0

5

Cub Cadet BF-000-6640

Spacer

$15.99

$

In Stock, only 2 left!

0

6

Cub Cadet BF-002-9036

Grease Fitting

$

$

Not available

7

Cub Cadet BF-000-6648

Housing

$

$

Not available

8

Cub Cadet BF-000-6636

Cover

$

$

Not available

9

Cub Cadet BF-000-6649

Blade Shaft

$

$

Not available

10

Cub Cadet BF-000-6639

Key

$2.99

$

In Stock, only 2 left!

0

11

Cub Cadet BF-000-6641

Blade - Standard Lift

$

$

Not available

Cub Cadet BF-000-6641B

Blade - High Lift

$

$

Not available

Cub Cadet BF-000-6641F

Blade - No Lift

$

$

Not available

12

Cub Cadet BF-000-8560

Spring Washer

$

$

Not available

13

Cub Cadet BF-000-8559

Blade Bolt

$

$

Not available

14

Cub Cadet BF-000-6698

Nut, 25mm

$20.99

$

In Stock, only 1 left!

0

15

Cub Cadet BF-003-0156

Nut, 10mm

$

$

Not available

16

Cub Cadet BF-000-1008

Bolt, 10 x 30

$

$

Not available

17

Cub Cadet BF-000-6626

Bearing

$24.99

$

Usually ships in 3-6 days

0

18

Cub Cadet BF-000-6629

Spindle Assembly - Complete

$

$

Not available
