6311 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: E0001001 - E0008843) FORWARD/REVERSE IDLER ASSEMBLY Parts Diagram

Econo-Horse Rear-Tine Tiller

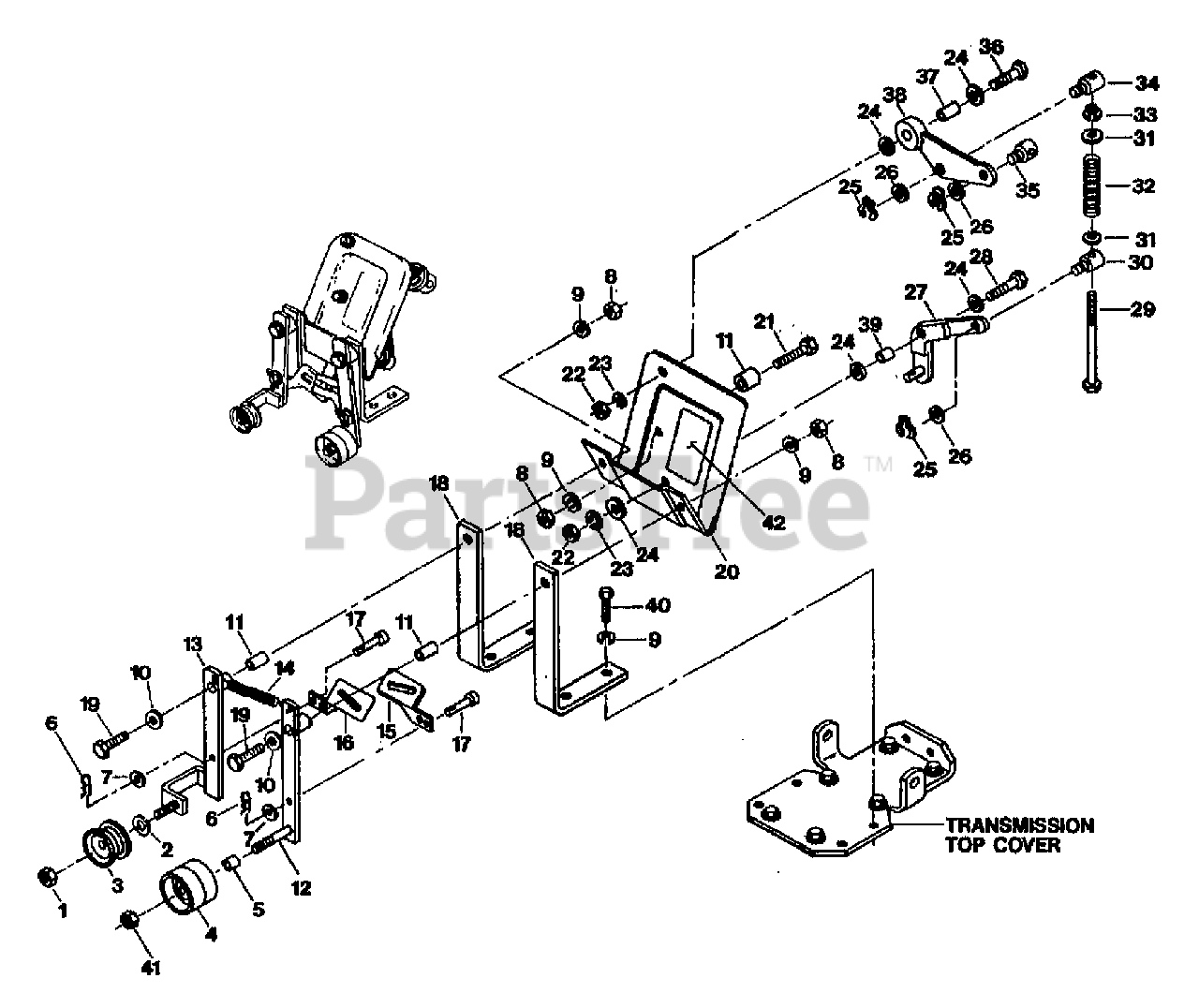

FORWARD/REVERSE IDLER ASSEMBLY Parts Diagram

  • Title

1

Troy-Bilt 9837

NUT-LOCK 3/8-16 NYLON ZP
(Superseded to 912-3000)

$3.99

$

In Stock, Qty 20+

0

2

Troy-Bilt 20513

BUSHING-.54X.38X.08

$

$

Currently unavailable

3

Troy-Bilt 9460

IDLER-REV

$

$

Currently unavailable

4

Troy-Bilt 9193

PULLEY-FWD IDLER

$

$

Currently unavailable

5

Troy-Bilt 1113-1

BUSHING-.5X.375X.3
(Superseded to GW-1113-1099)

$4.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0

7

Troy-Bilt 9900

WASHER-FLAT 1/4 SAE

$

$

Currently unavailable

8

Troy-Bilt 9801

NUT-HEX 5/16-18 ZP

$

$

Currently unavailable

9

Troy-Bilt 9912

WASHER-LK .312 ZP

$

$

Currently unavailable

10

MTD 20545

WASHER-#.75X.32X.09 ZP

$

$

Not available

11

MTD 9479

BUSHING-.438X.323X.712

$

$

Not available

12

Troy-Bilt 20657

ARM-IDLER FWD PNT

$

$

Currently unavailable

13

Troy-Bilt 20760

IDLER-REV

$

$

Currently unavailable

14

Troy-Bilt 1492

SPRING-.436 X 3.25
(Superseded to GW-1492099)

$9.99

$

In Stock, Qty 12

0

15

MTD 20517-01

LINK-FWD

$

$

Not available

16

Troy-Bilt 20517-02

LINK-REV

$

$

Currently unavailable

17

MTD 9340

PIN-CLEVIS .375X.719 ZP

$

$

Not available

18

MTD 20751

MOUNT BAR-PNT (20691)

$

$

Not available

19

Troy-Bilt 9741

BOLT-HH 5/16-18 X 2 G5 ZP
(Superseded to 710-3103)

$4.49

$

In Stock, Qty 19

0

20

Troy-Bilt 20622

BASE-SHIFTING W/DECAL (INCL. #50112 WARNING DECAL)

$

$

Currently unavailable

21

Troy-Bilt 9574

SCR-HH 5/16-18X1.25 G5ZP

$

$

Currently unavailable

22

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

23

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

24

Troy-Bilt 20553

SPACER-.88X.385X.09 ZP
(Superseded to GW-20553)

$

$

Not available

25

Troy-Bilt 9515

RING-KLIP .500 ZINC

$

$

Currently unavailable

26

Troy-Bilt 20546

WASHER-#.88X.51X.063 ZP
(Superseded to GW-20546)

$

$

Not available

27

Troy-Bilt 20680

BELLCRANK-WELDMENT

$

$

Currently unavailable

28

Troy-Bilt 9712

SCR-HH 3/8-16X1.25

$

$

Currently unavailable

29

Troy-Bilt 20552

SCR-HH 1/4-20X4.5 G5

$

$

Currently unavailable

30

Troy-Bilt 20504

PIVOT-SLIDE

$

$

Currently unavailable

31

Troy-Bilt 20554

WASHER ZP

$

$

Currently unavailable

32

Troy-Bilt 20544

SPRING-.52 X 3

$

$

Currently unavailable

33

Troy-Bilt 9514

RING-KLIP 5304-25
(Superseded to GW-9514)

$6.49

$

In Stock, only 2 left!

0

34

Troy-Bilt 20505

PIVOT-THREADED

$

$

Currently unavailable

35

MTD 20506

PIVOT-ROD (FORWARD/NEUTRAL/REVERSE LEVER)

$

$

Not available

36

MTD 9558

BOLT-HH 3/8-16X1.5 FTH ZP

$

$

Not available

37

Troy-Bilt 9060

BUSHING-.5X.38X.665

$

$

Currently unavailable

38

Troy-Bilt 20719

RODCRANK

$

$

Currently unavailable

39

Troy-Bilt 20532

BUSHING-.5X.38X.4
(Superseded to GW-20532)

$7.99

$

Usually ships in 3-6 days

0

40

Troy-Bilt 9704

SCR-HH 5/16-18X1.0 G5 ZP

$

$

Currently unavailable

41

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

42

Troy-Bilt 50112

DECAL-BELT WARNING (WARNS ABOUT MOVING BELTS AND PULLEYS)

$

$

Currently unavailable

Troy-Bilt 1900706

PAINT-RED SPRAYCAN POWDER
(Superseded to 788-0638A)

$22.99

$

Usually ships in 3-6 days

0
