6311 - Troy-Bilt Econo-Horse Rear-Tine Tiller (SN: E0001001 - E0008843) TINES & WHEELS Parts Diagram

Econo-Horse Rear-Tine Tiller

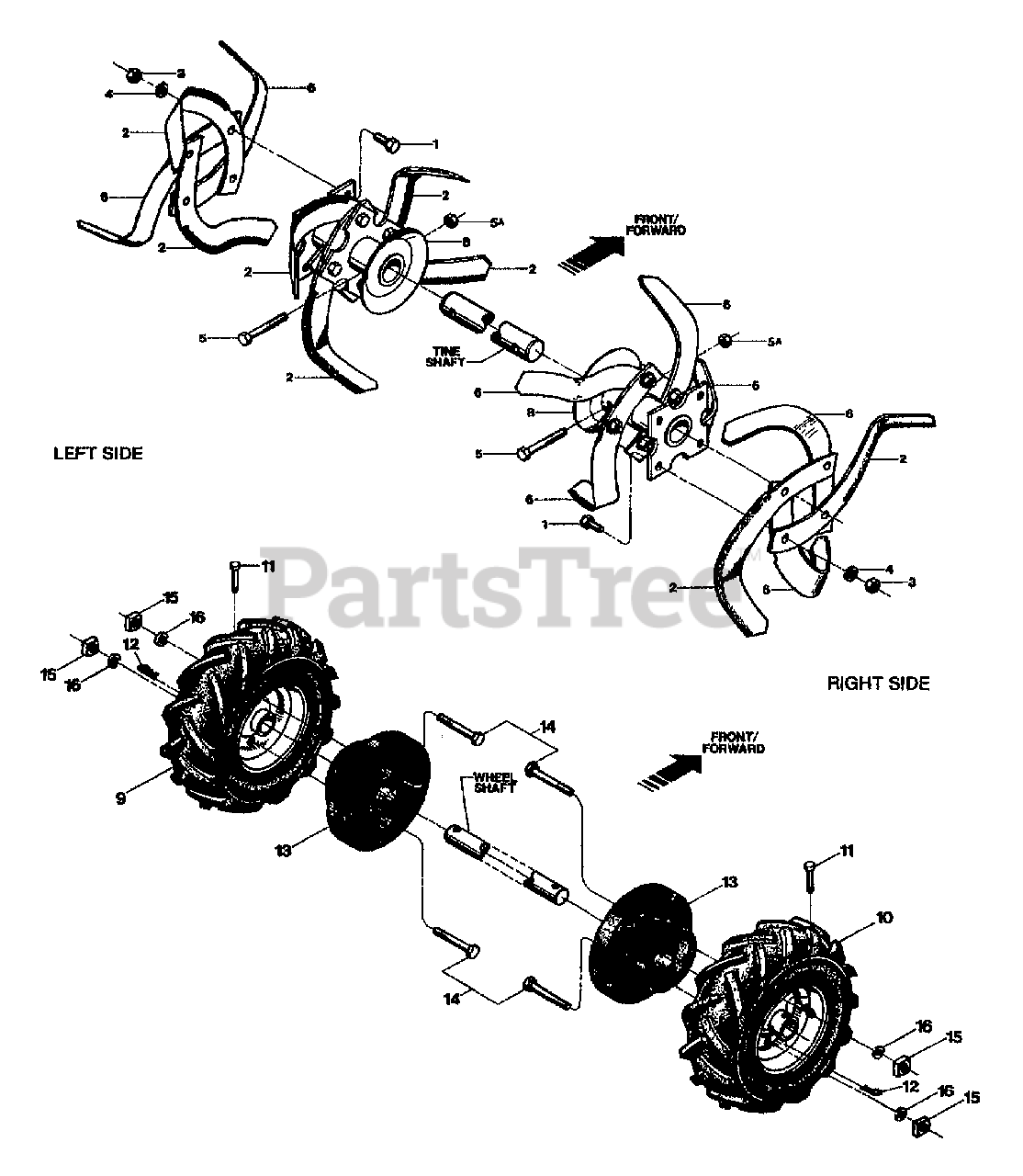

TINES & WHEELS Parts Diagram

  • Title

1

Troy-Bilt 9711

SCR-HH 3/8-16X1.0 G5 ZP

$

$

Currently unavailable

2

Troy-Bilt 1270-2A

TINE-BOLO RT W/HDW
(Superseded to 742-04118-0637)

$

$

Not available

3

Troy-Bilt 9802

NUT-HEX 3/8-16 ZP

$

$

Currently unavailable

4

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

5

Troy-Bilt 9761

SCR-HH 3/8-16X2.00 G8 (HOLDER TO TILLER SHAFT)

$

$

Currently unavailable

5A

MTD 9807

NUT-H/LK 3/8-16
(Superseded to 690-239-0020)

$

$

Not available

6

Troy-Bilt 1270-1A

TINE-BOLO LT W/HDW
(Superseded to 742-04119-0637)

$

$

Not available

8

Troy-Bilt 2479

WELD-TINE HOLDER ECONO (LEFT & RIGHT SIDES)

$

$

Currently unavailable

Troy-Bilt 1348

TINES-BOLO HORSE/PONY/ECONO

$

$

Currently unavailable

9

Troy-Bilt 2483-01

ASSM-WHEEL TIRE LT (15-20 LBS AIR REQ'D)

$

$

Currently unavailable

10

Troy-Bilt 2483-02

ASSM-WHEEL TIRE RT (15-20 LBS AIR REQ'D)

$

$

Currently unavailable

11

Troy-Bilt 9380

PIN-CLEVIS
(Superseded to 711-04126)

$3.99

$

In Stock, Qty 15

0

12

Troy-Bilt 9338

PIN-CLIP .08
(Superseded to 714-04048)

$7.49

$

In Stock, only 3 left!

0

13

Troy-Bilt 2484

WEIGHT-WHEEL

$

$

Currently unavailable

14

Troy-Bilt 9698

SCR-HH 3/8-16X3.5 G5 ZP

$

$

Currently unavailable

15

Troy-Bilt 9849

NUT-SQ 3/8-16

$

$

Currently unavailable

16

Troy-Bilt 9913

WASHER-LK .375 @ DEPL

$

$

Currently unavailable

Troy-Bilt 2482

TIRE-13X5.00X6 ECONO (TIRE ONLY)

$

$

Currently unavailable

Troy-Bilt 2705

RIM-WHEEL 6" GRAY (WHEEL RIM ONLY)

$

$

Currently unavailable
