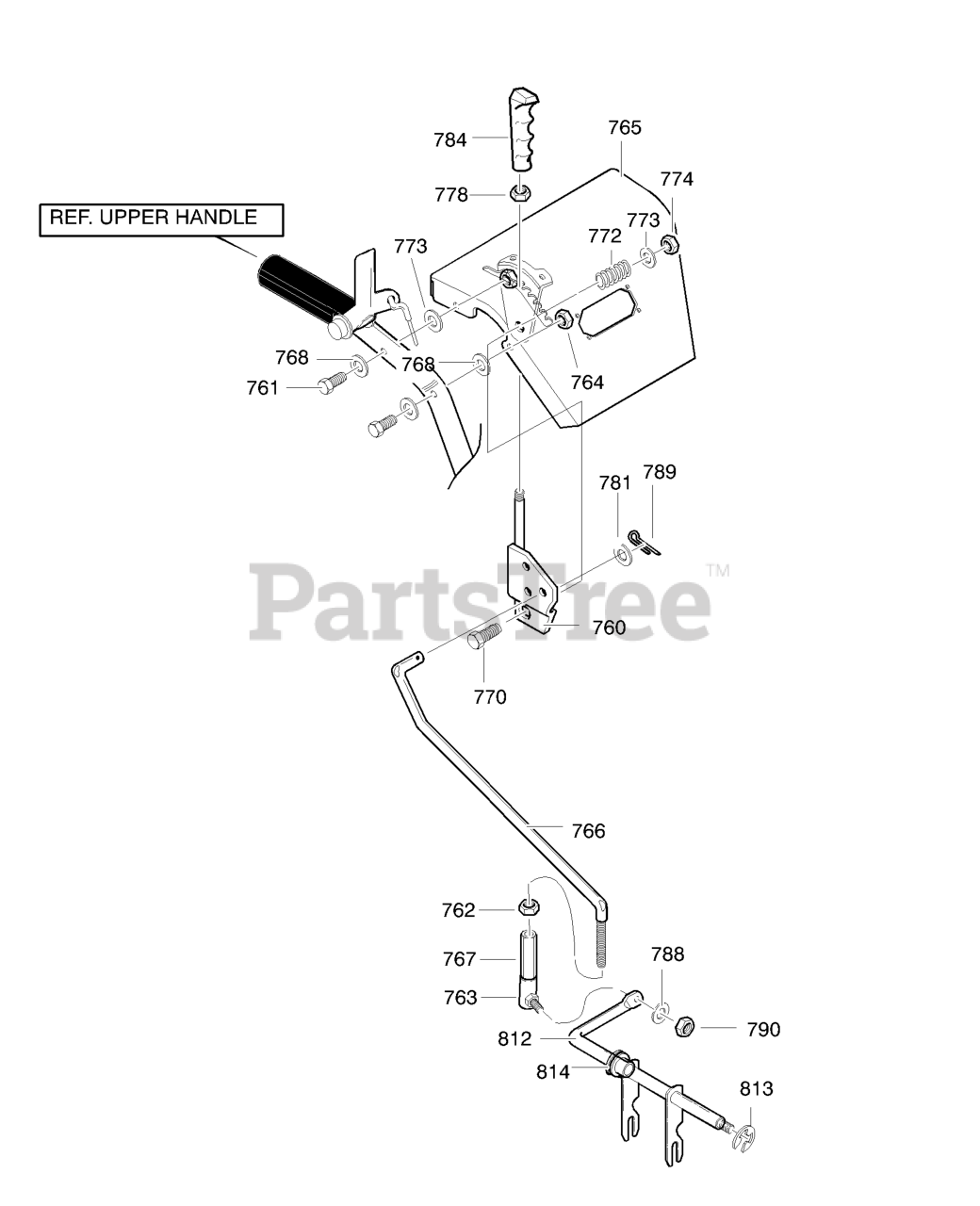

631128x31D - Scotts 31" Snow Thrower (2003) Control Panel Assembly Parts Diagram

31" Snow Thrower

Control Panel Assembly Parts Diagram

  • Title

760

Murray 1501632 YZ

HANDLE ASSY SPD CTRL

$12.99

$

Usually ships in 2-12 days

0

761

Murray 302900MA

SCREW, 5/16-18 x 1.75
(Superseded to 5025011X14)

$3.99

$

In Stock, Qty 17

0

762

Murray 71042MA

NUT, 5/16-24

$4.49

$

Usually ships in 2-12 days

0

763

Murray 50782MA

JOINT, BALL

$22.99

$

In Stock, only 4 left!

0

764

Murray 710026

NUT, 5/16-18

$

$

Not available

765

Murray 1501414E700

ASSY. BAY LT

$

$

Currently unavailable

766

Murray 1501581MA

ROD, SPEED CONTROL

$31.99

$

Usually ships in 2-12 days

0

767

Murray 6352MA

ADAPTER, ROD

$100.99

$

Usually ships in 2-12 days

0

768

Murray 71071

WASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

770

Murray 71007

SCREW 3/8-16X2.00

$

$

Not available

772

Murray 50786MA

SPRING

$5.49

$

Usually ships in 2-12 days

0

773

Murray 71072

FLATWASHER

$

$

Not available

774

Murray 71046

NUT, 3/8-16
(Superseded to 71046MA)

$4.49

$

Usually ships in 2-12 days

0

778

Murray 71045

NUT, JAM 3/8-16

$

$

Not available

781

Murray 71071

FLATWASHER
(Superseded to 703350)

$4.49

$

In Stock, Qty 10

0

784

Murray 304728MA

HANDLE, GRIP

$13.99

$

Usually ships in 2-12 days

0

788

Murray 71060

FLATWASHER
(Superseded to 1501670MA)

$

$

Not available

789

Murray 71081

PIN, COTTER

$

$

Not available

790

Murray 71042MA

NUT

$4.49

$

Usually ships in 2-12 days

0

812

Murray 1501110 YZ

ROD, ASSY YOKE
(Superseded to 1501110YZMA)

$53.99

$

In Stock, only 2 left!

0

813

Murray 11X30MA

RING, RETAINER

$4.99

$

In Stock, Qty 7

0

814

Murray 579944MA

BEARING, FLANGE

$16.99

$

In Stock, only 2 left!

0
