633129x54B - Murray 33" Snow Thrower (2001) Wheels Parts Diagram

33" Snow Thrower

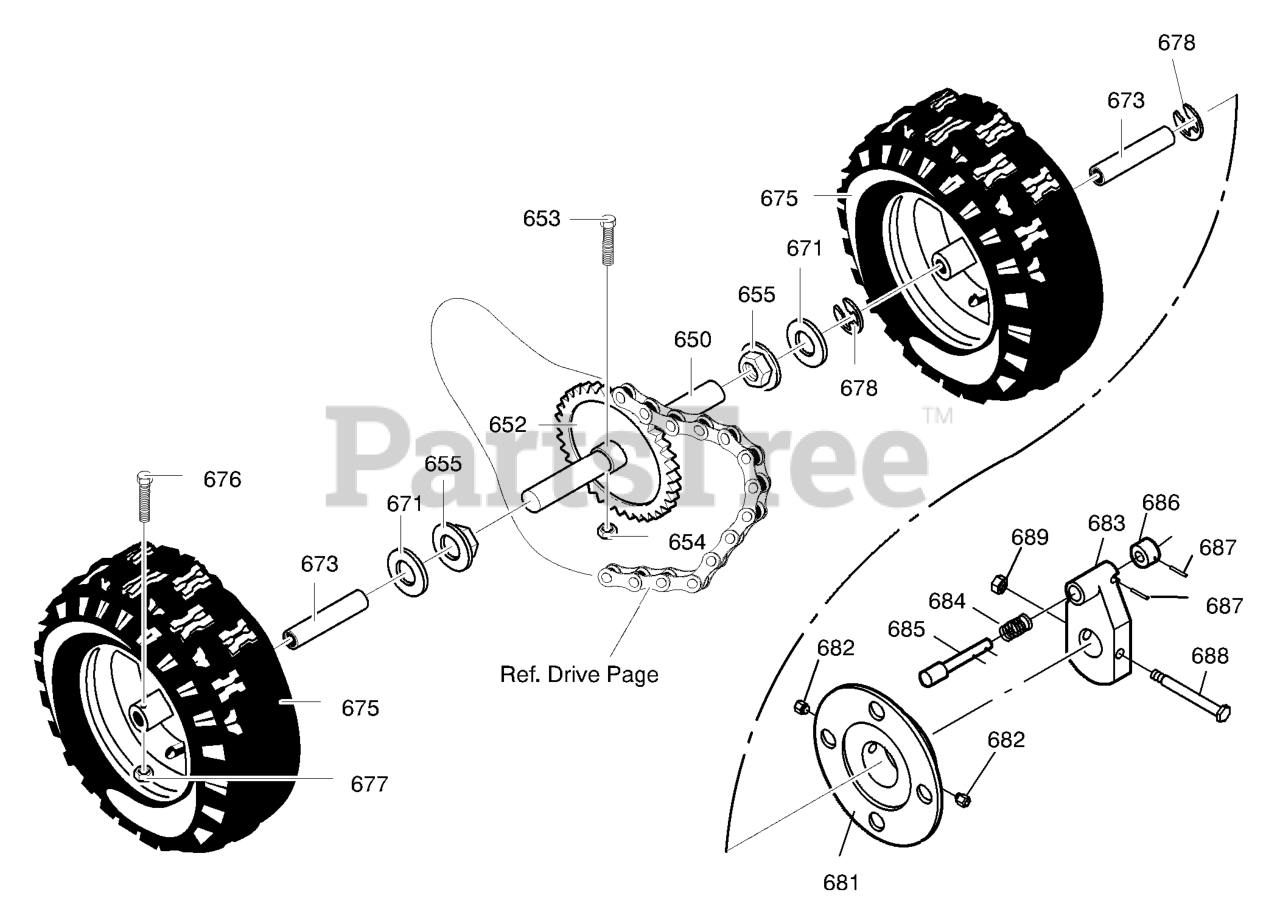

Wheels Parts Diagram

  • Title

650

Murray 1501104MA

SHAFT, AXLE

$

$

Not available

652

Murray 1501089

SPRKT & HUB
(Superseded to 1501089MA)

$42.99

$

In Stock, only 1 left!

0

653

Murray 01X186MA

BOLT

$4.49

$

Usually ships in 2-12 days

0

654

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

655

Murray 1501114MA

BEARING

$11.99

$

In Stock, only 2 left!

0

671

Murray 712120MA

WASHER, FLAT

$4.99

$

In Stock, only 2 left!

0

673

Murray 1501138MA

BUSHING, WHEEL

$

$

Not available

675

Murray 584535MA

TIRE & RIM

$133.99

$

Usually ships in 2-12 days

0

676

Murray 577015MA

SCREW, 1/4-20X1.75 HH

$4.99

$

In Stock, Qty 7

0

677

Murray 780029

NUT, 1/4-20 HEX NYLOCK

$

$

Not available

678

Murray 239MA

RING, RET
(Superseded to 1657528SM)

$4.49

$

In Stock, Qty 20+

0

681

Murray 1501032E701

DISC, WHEEL

$32.99

$

Usually ships in 2-12 days

0

682

Murray 2001086MA

SCREW

$4.49

$

Usually ships in 2-12 days

0

683

Murray 1501031E701

HUB, WHEEL LOCK

$

$

Currently unavailable

684

Murray 164X34MA

SPRING, COMPRESSION

$5.99

$

In Stock, only 2 left!

0

685

Murray 1501033

PIN, LOCK

$

$

Currently unavailable

686

Murray 1501034MA

KNOB

$23.99

$

In Stock, only 1 left!

0

687

Murray 032X78

PIN

$

$

Currently unavailable

688

Murray 73839MA

SCREW

$5.49

$

In Stock, Qty 9

0

689

Murray 780029

NUT

$

$

Not available
