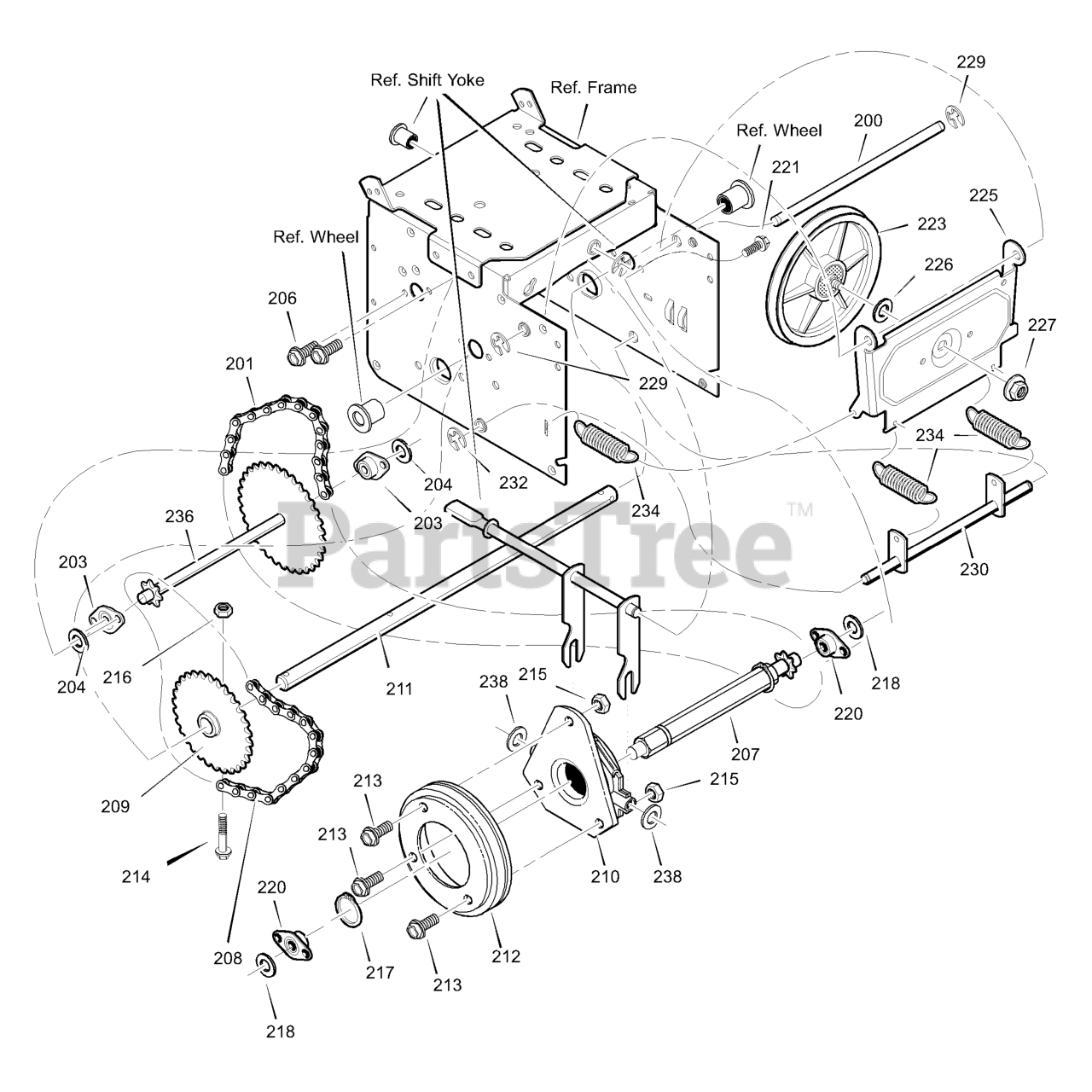

633136x85A - Murray 33" Snow Thrower (2002) Drive Parts Diagram

33" Snow Thrower

Drive Parts Diagram

  • Title

200

Murray 1501092 YZ

LF AXLE, SWING PLATE YZ
(Superseded to 703328)

$23.99

$

Usually ships in 2-12 days

0

201

Murray 579851MA

CHAIN, ROLLER #420 x 19.00 LG

$23.99

$

In Stock, Qty 8

0

203

Murray 579850MA

BEARING AND RETAINER, ASSY

$8.49

$

Usually ships in 2-12 days

0

204

Murray 579863MA

BEARING

$15.99

$

Usually ships in 2-12 days

0

206

Murray 780055MA

SCREW, TAP 5/16-18 x 0.5
(Superseded to 703985)

$4.49

$

In Stock, Qty 18

0

207

Murray 1501101

ASSY, HEX SHAFT

$33.99

$

Usually ships in 2-12 days

0

208

Murray 579868MA

CHAIN, ROLLER #420 x 18.00 LG

$21.99

$

In Stock, Qty 9

0

209

Murray 1501089

SPROCKET ASSEMBLY
(Superseded to 1501089MA)

$44.99

$

In Stock, Qty 7

0

210

Murray 337029MA

BEARING, TRUNION CLUTCH R
(Superseded to 1739282YP)

$41.99

$

In Stock, only 2 left!

0

211

Murray 1501285

AXLE - BEARING ASSEMBLY

$

$

Currently unavailable

212

Murray 1501435MA

WHEEL, FRICTION DISC

$28.99

$

In Stock, Qty 20+

0

213

Murray 001X38MA

SCREW, 1/4-20 x 0.63

$4.49

$

In Stock, Qty 12

0

214

Murray 01X193MA

BOLT, 1/4-20 x 1.75
(Superseded to 704212)

$5.99

$

In Stock, Qty 6

0

215

Murray 303008MA

NUT, KEPS HEX 1/4-20
(Superseded to 703914)

$3.49

$

In Stock, only 2 left!

0

216

Murray 15X145MA

NUT, 1/4-20 HEX NYLOCK
(Superseded to 703232)

$4.49

$

In Stock, Qty 20+

0

217

Murray 579859MA

RING, RETEXT

$4.99

$

Usually ships in 2-12 days

0

218

Murray 579863MA

BRARING

$15.99

$

Usually ships in 2-12 days

0

220

Murray 579850MA

BEARING AND RETAINER, ASSY

$8.49

$

Usually ships in 2-12 days

0

221

Murray 780055MA

SCREW, TAP 5/16-18 X .50
(Superseded to 703985)

$4.49

$

In Stock, Qty 18

0

223

Murray 1501115MA

ASSY, FRICTION PULLEY

$

$

Not available

225

Murray 1501057 YZ

LF PLATE, SWINGING YZ
(Superseded to 1501057YZMA)

$40.99

$

In Stock, only 1 left!

0

226

Murray 1501158MA

SPACER, FRICTION PULLEY

$4.99

$

In Stock, Qty 7

0

227

Murray 15X114

NUT, FLANGE LOCK 3/8-24
(Superseded to 15X114MA)

$4.49

$

Usually ships in 2-12 days

0

229

Murray 11X30MA

RETAINER, RING

$4.99

$

In Stock, Qty 7

0

230

Murray 1501107 YZ

LF ASSY, SPRING LINK YZ

$23.99

$

Usually ships in 2-12 days

0

232

Murray 11X30MA

RETAINER, RING

$4.99

$

In Stock, Qty 7

0

234

Murray 165X112MA

SPRING, EXTENSION
(Superseded to 1736469YP)

$7.49

$

In Stock, Qty 8

0

236

Murray 1501102

WLD, INTERMED SPROCKET 33T/7
(Superseded to 1501102MA)

$85.99

$

Usually ships in 2-12 days

0

238

Murray 71074

WASHER, FLAT
(Superseded to 71074MA)

$

$

Not available
