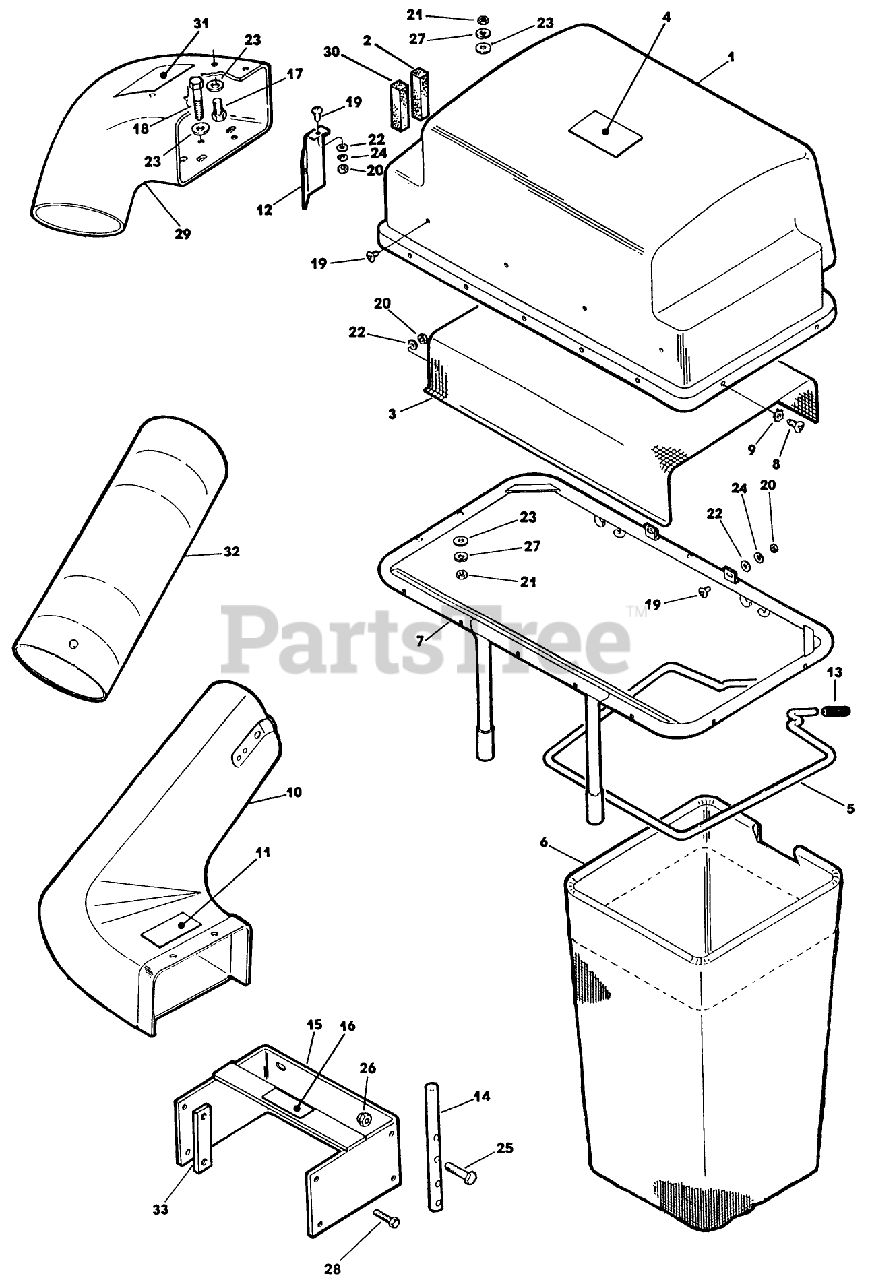

63572 A - Lawn-Boy Sleeve Hitch (SN: K00000001 - K99999999) (1991) 38" Grass Catcher Parts List Parts Diagram

Sleeve Hitch

38" Grass Catcher Parts List Parts Diagram

  • Title

1

Lawn-Boy 740877

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 702340

DISCONTINUED

Note: Parts shown with bullet i

$

$

Not available

2

Lawn-Boy 702340

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 702341

DISCONTINUED

Note: To replace screen, substi

$

$

Not available

3

Lawn-Boy 702341

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 702326

DISCONTINUED

Note: Parts shown with bullet i

$

$

Not available

4

Lawn-Boy 702326

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 702346

FRAME-GRASS BAG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$188.99

$

Usually ships in 3-6 days

0

6

Lawn-Boy 740800

GRASS BAG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$274.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 740797

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 702331

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 702332

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 740878

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 146468

DISCONTINUED

Note: Parts shown with bullet i

$

$

Not available

11

Lawn-Boy 146468

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 702477

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 702328

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 702479

BAR MOUNTING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 740888

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 700797

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 700797

DISCONTINUED

Note: Parts shown with bullet i

$

$

Not available

17

Lawn-Boy 146249

See Supercession: 321-4
(Superseded to 321-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

18

Lawn-Boy 146261

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 702330

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 146510

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 146254

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 146502

See Supercession: 607875
(Superseded to 607875)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 146251

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 146276

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 146504

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 700032

NUT-LOCKING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

28

Lawn-Boy 701243

SCREW-THD ROLL, HWH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 20+

0

29

Lawn-Boy 740882

CHUTE EXT&DECAL AY

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 702340

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 702340

DISCONTINUED

Note: Parts shown with bullet i

$

$

Not available

31

Lawn-Boy 146468

DISCONTINUED

Note: Parts shown with bullet i

$

$

Not available

31

Lawn-Boy 146468

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 702486

TUBE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 702481

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
