63572 A - Lawn-Boy Sleeve Hitch (SN: K00000001 - K99999999) (1991) Frame, Drive And Lift Parts List-36" Snowthower Parts Diagram

Sleeve Hitch

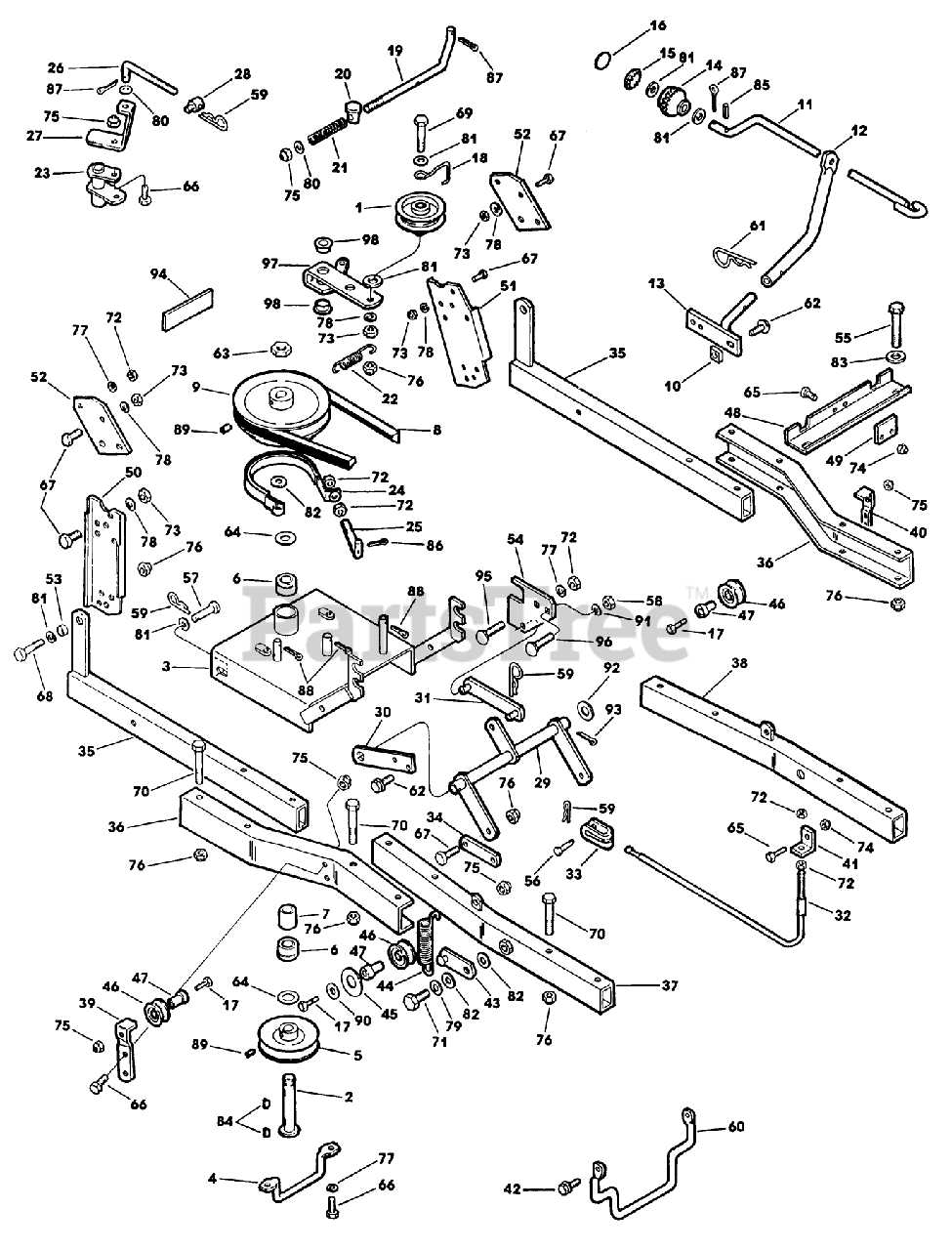

Frame, Drive And Lift Parts List-36" Snowthower Parts Diagram

  • Title

1

Lawn-Boy 701070

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 741012

SHAFT AY *NP

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$301.99

$

Usually ships in 3-6 days

0

3

Lawn-Boy 740108

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 702930

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 741015

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 741022

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 702937

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 702919

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 741010

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 702621

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 741002

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 702905

TUBE-CRANK

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$245.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 740940

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 700189

KNOB

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$35.99

$

Usually ships in 3-6 days

0

15

Lawn-Boy 740994

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 702757

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 146210

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 702167

RETAINER-BELT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 702911

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 702912

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 702934

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 702921

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 741017

CLUTCH ARM ASM MBL

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$75.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 741013

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 702910

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 702925

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 702620

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 701192

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 740942

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 740944

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 740944

DISCONTINUED

Note: Parts Not Shown

$

$

Not available

30

Lawn-Boy 702618

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 740935

LIFT LINK

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 740932

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 702608

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 702610

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 702611

DISCONTINUED

Note: Parts Not Shown

$

$

Not available

Lawn-Boy 702611

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 741016

REAR FRAME AY

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$557.99

$

Usually ships in 3-6 days

0

36

Lawn-Boy 702932

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 741031

FRONT FRAME AY RH

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$673.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 741032

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 702931

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 702945

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 702609

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 701660

SCREW-THREAD FRMG

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

43

Lawn-Boy 741029

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 702632

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

45

Lawn-Boy 702975

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 701444

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 701443

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 702933

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 702619

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 702363

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 702364

BRACKET MOUNTING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

52

Lawn-Boy 702634

HANGER PLATE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$378.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 702633

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 702615

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

55

Lawn-Boy 702914

See Supercession: 323-14
(Superseded to 323-14)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, Qty 16

0

56

Lawn-Boy 702607

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 702920

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 702613

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 146428

PIN - SPRING CLIP

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 702628

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 702629

DISCONTINUED

Note: Parts Not Shown

$

$

Not available

Lawn-Boy 702629

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

61

Lawn-Boy 700599

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

62

Lawn-Boy 702622

See Supercession: 701243
(Superseded to 701243)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 20+

0

63

Lawn-Boy 702939

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

64

Lawn-Boy 700162

WASHER-SHIM

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

65

Lawn-Boy 146249

See Supercession: 321-4
(Superseded to 321-4)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

66

Lawn-Boy 146209

SCREW - HEX

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

67

Lawn-Boy 700973

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

68

Lawn-Boy 146504

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

69

Lawn-Boy 700838

See Supercession: 323-11
(Superseded to 323-11)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

70

Lawn-Boy 146307

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

71

Lawn-Boy 702105

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

72

Lawn-Boy 146259

NUT SS

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

73

Lawn-Boy 146211

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

74

Lawn-Boy 146375

NUT-LOCK, CONE

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

75

Lawn-Boy 146501

NUT

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, only 3 left!

0

76

Lawn-Boy 700032

NUT-LOCKING

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

77

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

78

Lawn-Boy 146260

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

79

Lawn-Boy 701068

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

80

Lawn-Boy 146368

See Supercession: 3256-23
(Superseded to 3256-23)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

81

Lawn-Boy 146304

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

82

Lawn-Boy 146204

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

83

Lawn-Boy 700050

WASHER

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

84

Lawn-Boy 701077

See Supercession: 3257-32
(Superseded to 3257-32)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 20+

0

85

Lawn-Boy 700213

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

86

Lawn-Boy 700834

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

87

Lawn-Boy 146374

See Supercession: 3272-10
(Superseded to 3272-10)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

88

Lawn-Boy 146370

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

89

Lawn-Boy 700029

SET SCREW

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

90

Lawn-Boy 146205

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

91

Lawn-Boy 701141

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

92

Lawn-Boy 702614

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

93

Lawn-Boy 701294

See Supercession: 3272-17
(Superseded to 3272-17)

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$2.99

$

In Stock, Qty 5

0

94

Lawn-Boy 740324

REFLECTOR

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

95

Lawn-Boy 700684

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

96

Lawn-Boy 702612

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

97

Lawn-Boy 741019

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

98

Lawn-Boy 702110

DISCONTINUED

Note: Note: All assemblies that list decals have only operational, instructional or safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
