63572 A - Lawn-Boy Sleeve Hitch (SN: K00000001 - K99999999) (1991) Gear Box Parts And Parts List Parts Diagram

Sleeve Hitch

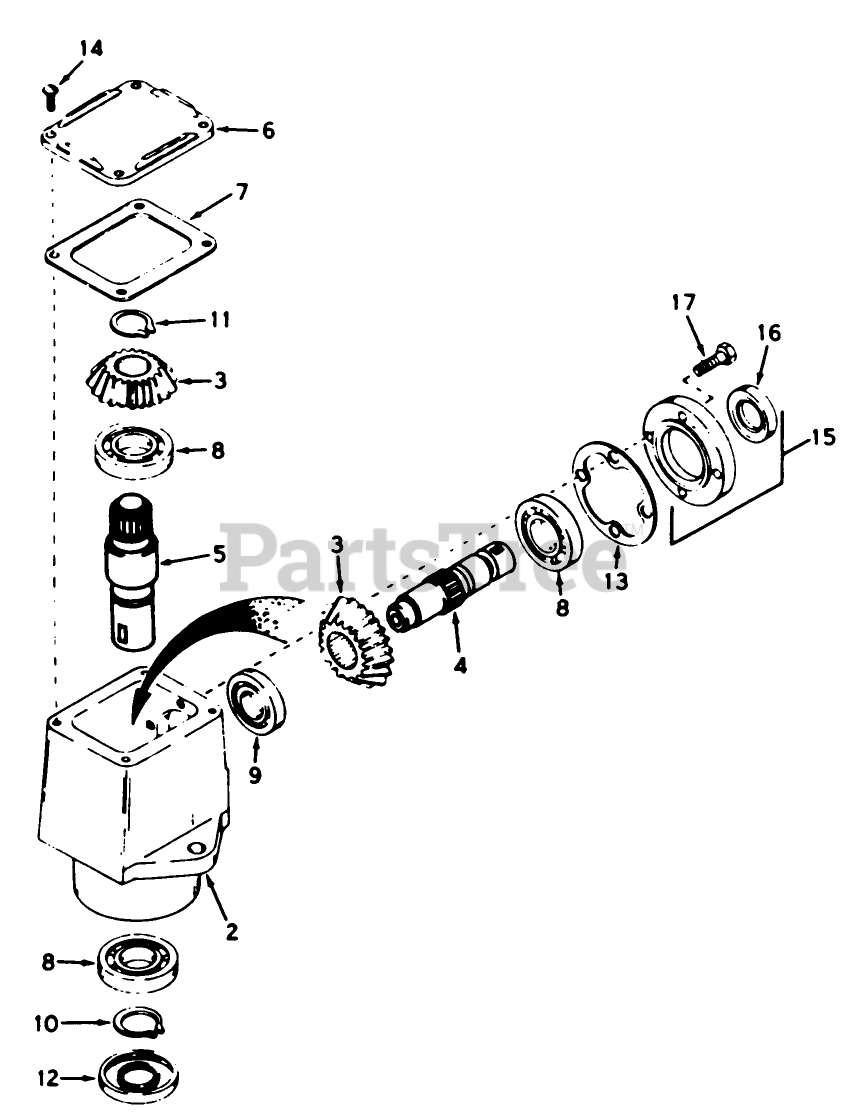

Gear Box Parts And Parts List Parts Diagram

  • Title

2

Lawn-Boy 770026

Housing, Right Angle Drive

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

3

Lawn-Boy 778046

Bevel Gear

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

4

Lawn-Boy 776062

Shaft, Input

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

5

Lawn-Boy 776061

Shaft, Output

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

6

Lawn-Boy 772035

Cover

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

7

Lawn-Boy 788028

Gasket

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

8

Lawn-Boy 780034

Bearing

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

9

Lawn-Boy 780024

Bearing

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

10

Lawn-Boy 788019

Ring-Snap

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

11

Lawn-Boy 788018

Ring-Snap

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

12

Lawn-Boy 788029

Seal

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

13

Lawn-Boy 788030

Gasket

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

14

Lawn-Boy 792025

Screw

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

15

Lawn-Boy 786029

Cap and Seal Assembly, Retainer (Includes Nos. 16 17)

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

16

Lawn-Boy 788031

Oil Seal

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

17

Lawn-Boy 792043

Screw, Hex Hd., 1/4-10 x 1

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

Lawn-Boy 794011

Complete Assembly

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable
