63572 A - Lawn-Boy Sleeve Hitch (SN: K00000001 - K99999999) (1991) Mower Deck Parts List Parts Diagram

Sleeve Hitch

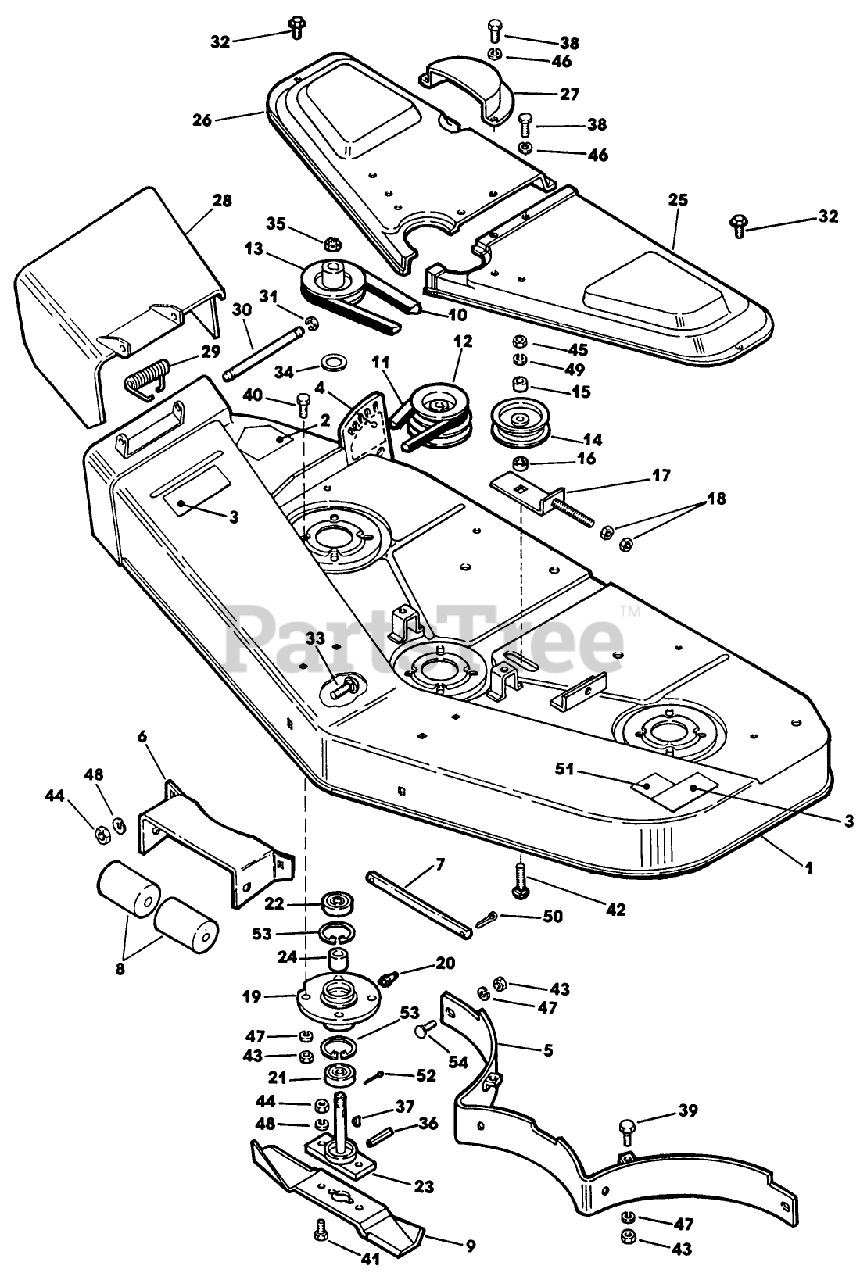

Mower Deck Parts List Parts Diagram

  • Title

1

Lawn-Boy 741449

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 741090

HSG & DECAL (TRK)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: Parts shown with bullet i

$7.49

$

In Stock, only 3 left!

0

2

Lawn-Boy 610640

See Supercession: 43-8480
(Superseded to 43-8480)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$7.49

$

In Stock, only 3 left!

0

3

Lawn-Boy 701204

DECAL

Note: Parts shown with bullet i

$

$

Not available

3

Lawn-Boy 701204

DECAL

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 701191

DISCONTINUED

Note: Parts shown with bullet i

$6.49

$

Usually ships in 3-6 days

0

4

Lawn-Boy 701191

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$6.49

$

Usually ships in 3-6 days

0

5

Lawn-Boy 740986

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 741084

See Supercession: 741066
(Superseded to 741066)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 702852

See Supercession: 702851
(Superseded to 702851)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 701212

SHAFT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 701203

ROLLER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$72.99

$

Usually ships in 3-6 days

0

9

Lawn-Boy 702855

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 703023

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 702814

V-BELT (DECK)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 703859

V-BELT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 703025

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 702816

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 703026

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 702818

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 702815

PULLEY - IDLER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 702108

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 703849

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 741511

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 700314

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 700491

HOUSING,SPINDLE S

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 700041

See Supercession: 302-5
(Superseded to 302-5)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

In Stock, Qty 20+

0

21

Lawn-Boy 700497

See Supercession: 93-2559
(Superseded to 93-2559)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$32.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 700496

See Supercession: 109842
(Superseded to 109842)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$29.99

$

In Stock, only 2 left!

0

23

Lawn-Boy 740082

SPINDLE ASSEMBLY *N/P

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$515.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 700498

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 740965

DISCONTINUED
(Superseded to 740964)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 741088

See Supercession: 741069
(Superseded to 741069)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$556.99

$

In Stock, only 1 left!

0

26

Lawn-Boy 740966

COVER AY - RH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$612.99

$

In Stock, only 1 left!

0

Lawn-Boy 741087

See Supercession: 741070
(Superseded to 741070)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 702835

See Supercession: 710276
(Superseded to 710276)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 740988

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 701199

See Supercession: 710273
(Superseded to 710273)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 701198

SHAFT - CHUTE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 701197

E-RING

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

32

Lawn-Boy 701660

SCREW-THREAD FRMG

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 701911

BOLT - CARRIAGE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 700809

SPACER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$4.99

$

In Stock, only 2 left!

0

35

Lawn-Boy 700499

NUT-BLADE SPINDLE

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 702808

See Supercession: 32121-35
(Superseded to 32121-35)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

Usually ships in 3-6 days

0

37

Lawn-Boy 700081

See Supercession: 3257-5
(Superseded to 3257-5)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$5.99

$

In Stock, Qty 15

0

38

Lawn-Boy 700822

SCREW-HH

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

In Stock, Qty 5

0

39

Lawn-Boy 146209

SCREW - HEX

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 700342

SCREW

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 700973

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 707690

BOLT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

43

Lawn-Boy 146259

NUT SS

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 146211

NUT

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

45

Lawn-Boy 702806

NUT - HEX JAM

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 146252

See Supercession: 3253-3
(Superseded to 3253-3)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

47

Lawn-Boy 146258

See Supercession: 3253-4
(Superseded to 3253-4)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 10

0

48

Lawn-Boy 146260

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 702103

WASHER

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 146374

See Supercession: 3272-10
(Superseded to 3272-10)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 14

0

51

Lawn-Boy 702800

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

Lawn-Boy 703034

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

52

Lawn-Boy 702807

See Supercession: 3272-13
(Superseded to 3272-13)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 7

0

43

Lawn-Boy 703279

See Supercession: 32120-62
(Superseded to 32120-62)

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$4.99

$

In Stock, only 4 left!

0

54

Lawn-Boy 709914

DISCONTINUED

Note: IMPORTANT NOTE: Replacement parts may not always be available in matching colors. NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
