63644 - Lawn-Boy 40" Snow Blade (SN: 800000001 - 899999999) (1988) BLADE PARTS LIST MODEL 63644 Parts Diagram

40" Snow Blade

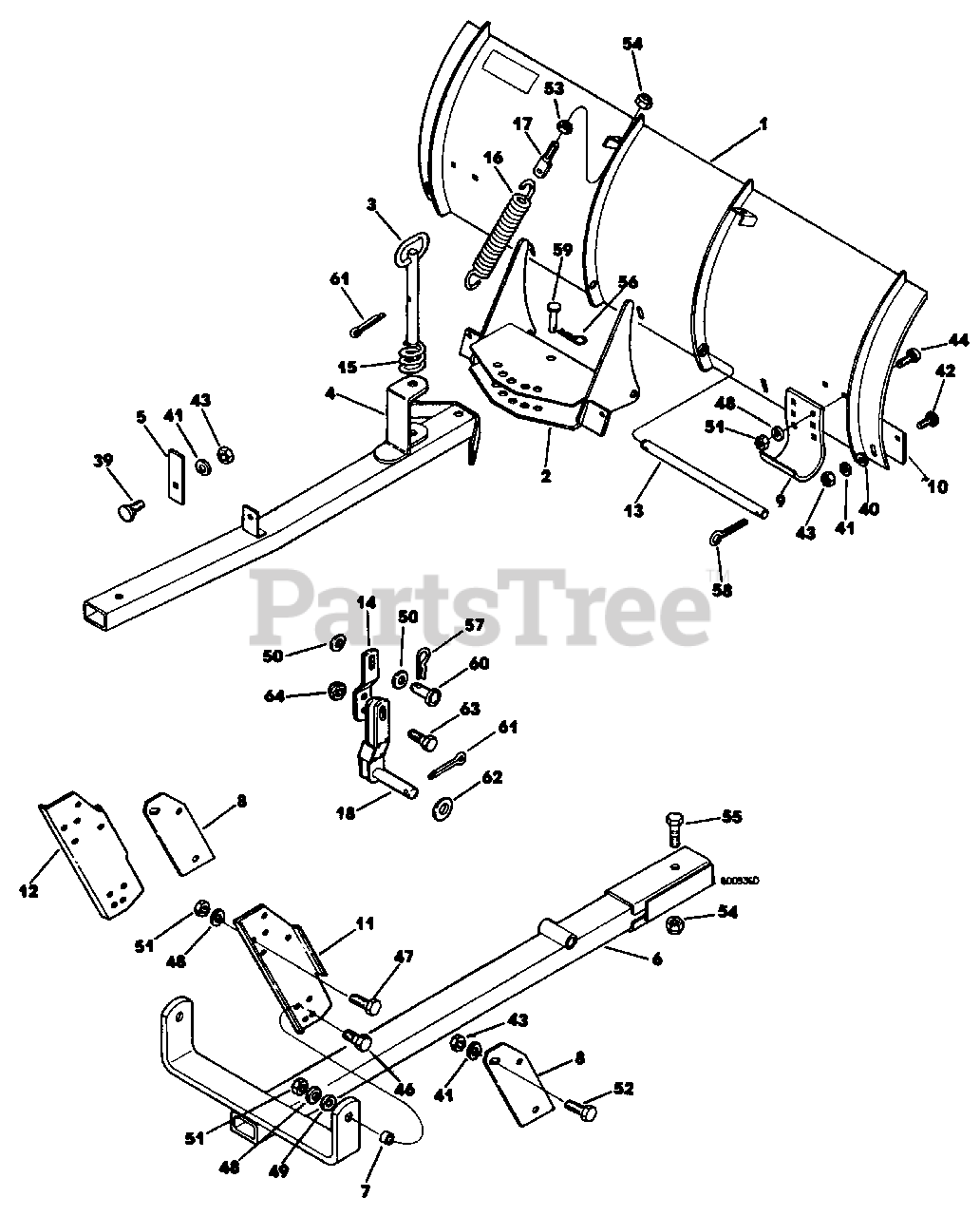

BLADE PARTS LIST MODEL 63644 Parts Diagram

  • Title

1

Lawn-Boy 234553

Snow Blade Assembly W/Decal
(Superseded to 740136)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 234317

Trip Plate Assembly
(Superseded to 740122)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 234323

Hitch Pin Assembly
(Superseded to 740110)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 234318

Front Frame Assembly
(Superseded to 740112)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 242532

Frame Stop
(Superseded to 700604)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 234324

Rear Frame Assembly
(Superseded to 740117)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$833.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 11555

Pivot Spacer
(Superseded to 700600)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 242534

Hanger Plate
(Superseded to 703963)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 37359

Shoe
(Superseded to 700669)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 12668

Scraper Blade
(Superseded to 700652)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 242570

Mounting Bracket-R.H. (Yard Tractor Only)
(Superseded to 702363)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 242571

Mounting Bracket-L.H. (Yard Tractor Only)
(Superseded to 702364)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 24871

Trip Pin
(Superseded to 700666)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 216842

Link-Reversing
(Superseded to 700622)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 12058

Spring
(Superseded to 700603)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 24873

Spring
(Superseded to 700667)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 24874

Spring Adjusting Bolt
(Superseded to 700665)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 216838

Lift Link Assembly
(Superseded to 740114)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 10888

Bolt, Wafer Hd. Short Square Neck Plated
(Superseded to 146511)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 70685

Washer, Flat SAE 5/16 Plated
(Superseded to 3256-23)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 19

0

41

Lawn-Boy 70646

Washer, Lock 5/16 Plated
(Superseded to 325-34)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, only 4 left!

0

42

Lawn-Boy 70443

Bolt, Carriage 5/16-18 x 1" Plated
(Superseded to 700684)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

43

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 70451

Bolt, Carriage 3/8-16 x 1" Plated
(Superseded to 700685)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 70242

Cap Screw, Hex Hd. 3/8-16 x 1-1/4 Plated, Grade 5
(Superseded to 146207)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 70235

Cap Screw, Hex Hd. 3/8-16 x 1" Plated, Grade 5
(Superseded to 700973)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

48

Lawn-Boy 70649

Washer, Lock 3/8 Plated
(Superseded to 146260)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

49

Lawn-Boy 70687

Washer, Flat SAE 3/8 Plated
(Superseded to 146304)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

50

Lawn-Boy 70689

Washer, Flat SAE 7/16 Plated
(Superseded to 700337)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

51

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

52

Lawn-Boy 70151

Cap Screw, Hex Hd. 5/16-18 x 1" Plated, Grade 5
(Superseded to 700342)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

53

Lawn-Boy 70581

Nut, Hex Jam 1/2-13 Plated
(Superseded to 146203)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 70633

Nut, Hex Cone Lock 1/2-13 Plated
(Superseded to 700687)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

55

Lawn-Boy 71204

Cap Screw, Hex Hd. 1/2-13 x 2-1/2 Plated, Grade 5
(Superseded to 700688)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

56

Lawn-Boy 2776

Spring Clip
(Superseded to 700599)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 70734

Pin, Cotter 3/16 x 1-1/2 Plated
(Superseded to 3272-23)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

Usually ships in 3-6 days

0

59

Lawn-Boy 31498

Clevis Pin
(Superseded to 700602)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$20.99

$

Usually ships in 3-6 days

0

60

Lawn-Boy 12084

Clevis Pin
(Superseded to 700601)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$4.49

$

Usually ships in 3-6 days

0

61

Lawn-Boy 70968

Pin, Cotter 1/8 x 1-1/4 Plated
(Superseded to 3272-12)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

62

Lawn-Boy 70696

Washer, Flat SAE 3/4 Plated
(Superseded to 700683)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

63

Lawn-Boy 71184

Cap Screw, Hex Hd. 7/16-14 x 1-1/2 Plated, Grade 5

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

64

Lawn-Boy 71100

Nut, Hex Cone Lock 7/16-14 Plated
(Superseded to 700680)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
