63664 - Lawn-Boy 40" Tiller Attachment (SN: 800000001 - 899999999) (1988) TILLER DRIVE PARTS MODEL 63664 Parts Diagram

40" Tiller Attachment

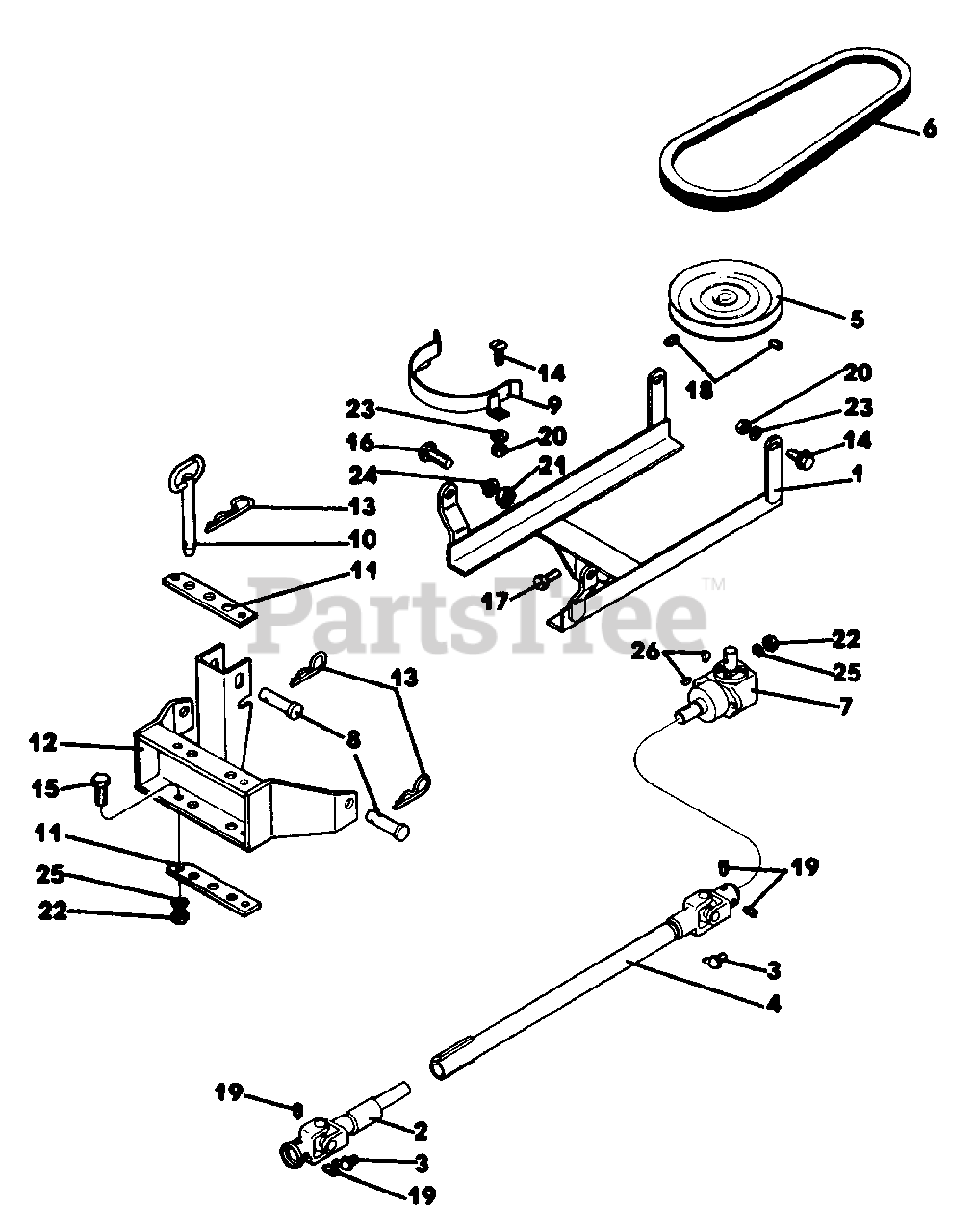

TILLER DRIVE PARTS MODEL 63664 Parts Diagram

  • Title

1

Lawn-Boy 234280

Support Assembly-P.T.O.
(Superseded to 741490)

$

$

Not available

2

Lawn-Boy 13627

Assembly-Universal Joint
(Superseded to 741488)

$

$

Not available

3

Lawn-Boy 13718

Grease Fitting
(Superseded to 703455)

$

$

Not available

4

Lawn-Boy 214167

Assembly-Drive Tube
(Superseded to 741489)

$

$

Not available

5

Lawn-Boy 207920

Pulley-7"
(Superseded to 741486)

$

$

Not available

6

Lawn-Boy 234360

V-Belt
(Superseded to 703454)

$62.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 11923

Gear Box
(Superseded to 741485)

$

$

Not available

8

Lawn-Boy 12643

Clevis Pin
(Superseded to 700598)

$

$

Not available

9

Lawn-Boy 234265

Guard Assembly-Belt
(Superseded to 741484)

$

$

Not available

10

Lawn-Boy 11852

Hitch Pin
(Superseded to 741173)

$140.99

$

Usually ships in 3-6 days

0

11

Lawn-Boy 12212

Wear Plate
(Superseded to 703438)

$91.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 214166

Assembly-Hitch Plate
(Superseded to 741494)

$

$

Not available

13

Lawn-Boy 2776

Spring Clip
(Superseded to 700599)

$

$

Not available

14

Lawn-Boy 70388

Machine Screw Round Hd. #10-24 x 1" Plated

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

15

Lawn-Boy 70242

Cap Screw, Hex Hd. 3/8-16 x 1-1/4 Plated, Grade 5
(Superseded to 146207)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

16

Lawn-Boy 71150

Cap Screw, Hex Hd. 5/8-11 x 1-1/4 Plated, Grade 5
(Superseded to 703443)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

17

Lawn-Boy 70238

Cap Screw, Hex Hd. 3/8-16 x 1-1/8 Plated, Grade 5
(Superseded to 701194)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

18

Lawn-Boy 70498

Set Screw, Hex Socket Hd. Cup Pt. 5/16-18 x 5/16
(Superseded to 700029)

Note: Common Hardware. May Be Purchased Locally.

$1.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 70504

Set Screw, Hex Socket Hd. Cup Pt. 3/8-16 x 3/8
(Superseded to 703447)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

20

Lawn-Boy 70539

Nut, Hex #10-24 Plated

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

21

Lawn-Boy 70567

Nut, Hex 5/8-11 Plated
(Superseded to 702101)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

22

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

Note: Common Hardware. May Be Purchased Locally.

$3.49

$

Usually ships in 3-6 days

0

23

Lawn-Boy 70640

Washer, Spring Lock #10 Plated

Note: Common Hardware. May Be Purchased Locally.

$

$

Currently unavailable

24

Lawn-Boy 70657

Washer, Spring Lock 5/8 Plated
(Superseded to 702103)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

25

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

Note: Common Hardware. May Be Purchased Locally.

$1.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 70812

Key, Woodruff 3/16 x 3/4
(Superseded to 3257-5)

Note: Common Hardware. May Be Purchased Locally.

$5.49

$

In Stock, Qty 20+

0
