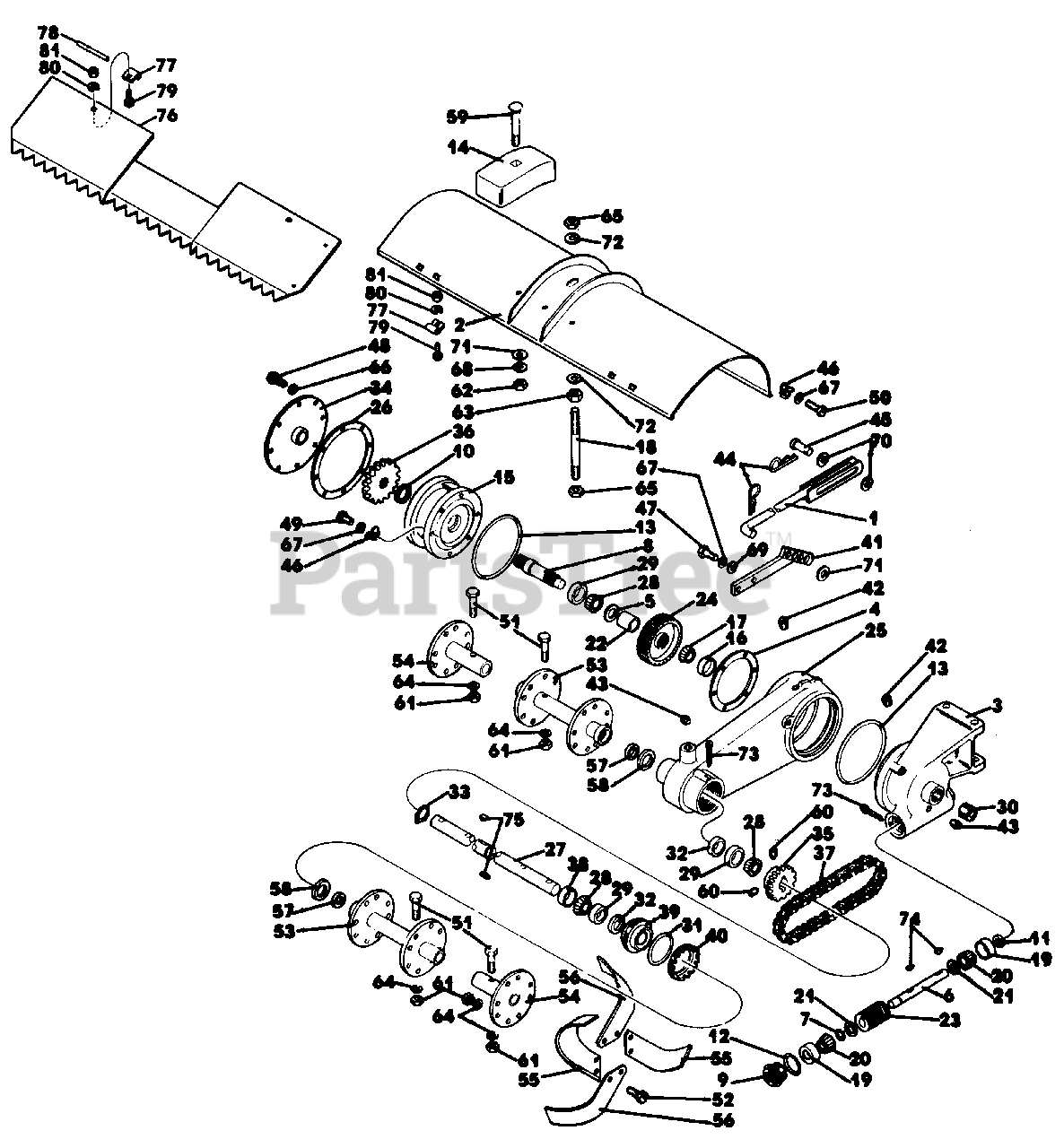

TILLER PARTS MODEL 63664 Parts Diagram

  • Title

1

Lawn-Boy 214162

Lift Rod Assembly
(Superseded to 741500)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 211222

Tine Shield & Decal Assembly
(Superseded to 741478)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 12553

Gear Case
(Superseded to 703828)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 14993

Gasket-Gear Case
(Superseded to 703826)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$38.99

$

Usually ships in 3-6 days

0

5

Lawn-Boy 27628

Shim-Bearing Adjustment
(Superseded to 703825)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$5.49

$

Usually ships in 3-6 days

0

6

Lawn-Boy 27623

Worm Shaft
(Superseded to 703824)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$93.99

$

Usually ships in 3-6 days

0

7

Lawn-Boy 4487

Snap Ring
(Superseded to 703276)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 27625

Shaft & Sleeve Assembly
(Superseded to 741498)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 3827

Plug-Bearing Adjustment
(Superseded to 703261)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

10

Lawn-Boy 27538

Seal
(Superseded to 703820)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 1117

Seal
(Superseded to 253-44)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$27.99

$

In Stock, only 3 left!

0

12

Lawn-Boy 3864

O-Ring
(Superseded to 703264)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 12560

O-Ring
(Superseded to 703819)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 34266

Tiller Weight
(Superseded to 702353)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 27353

Bearing Plate
(Superseded to 703818)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$867.99

$

Usually ships in 3-6 days

0

16

Lawn-Boy 1046

Bearing Cup
(Superseded to 254-72)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$9.99

$

In Stock, Qty 20+

0

17

Lawn-Boy 1045

Bearing Cone
(Superseded to 254-94)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$9.49

$

In Stock, Qty 14

0

18

Lawn-Boy 4278

Tine Shield Stud
(Superseded to 703271)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 3862

Bearing Cup
(Superseded to 703262)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 3863

Bearing Cone
(Superseded to 703263)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 27621

Worm Spacer
(Superseded to 703813)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$63.99

$

Usually ships in 3-6 days

0

22

Lawn-Boy 27620

Worms Wheel Spacer
(Superseded to 703814)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 3750

Worm
(Superseded to 703259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 27351

Worm Wheel
(Superseded to 703816)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1087.99

$

Usually ships in 3-6 days

0

25

Lawn-Boy 12563

Chain Case
(Superseded to 703812)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 12564

Gasket-Cover
(Superseded to 703807)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$21.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 12566

Tine Shaft
(Superseded to 703808)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$626.99

$

Usually ships in 3-6 days

0

28

Lawn-Boy 4298

Bearing Cone
(Superseded to 254-62)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$13.99

$

Usually ships in 3-6 days

0

29

Lawn-Boy 4299

Bearing Cup

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 12740

Pipe Plug-Socket
(Superseded to 703800)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 1792

O-Ring
(Superseded to 703231)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 4332

Oil Seal
(Superseded to 703274)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 1762

Snap Ring
(Superseded to 32120-33)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$7.49

$

In Stock, Qty 20+

0

34

Lawn-Boy 27619

Chain Case Cover Assembly
(Superseded to 741496)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

35

Lawn-Boy 12764

Sprocket-15T
(Superseded to 703805)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 27350

Sprocket-19T
(Superseded to 703426)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 12568

Chain, #60, includes #18381 Connector Link
(Superseded to 741497)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$474.99

$

Usually ships in 3-6 days

0

38

Lawn-Boy 12569

Spacer
(Superseded to 703806)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 12752

Plug-Bearing Adjustment
(Superseded to 703803)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 1189

Lock Ring
(Superseded to 703215)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 12558

Lift Arm Assembly
(Superseded to 741495)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 1034

Vent Plug Assembly
(Superseded to 3217-5)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 10

0

43

Lawn-Boy 1104

Pipe Plug
(Superseded to 700412)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

45

Lawn-Boy 1268

Clevis Pin
(Superseded to 700597)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 28855

Lug Washer
(Superseded to 703451)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 70235

Cap Screw, Hex 3/8-16 x 1" Plated, Grade 5
(Superseded to 700973)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

48

Lawn-Boy 70090

Cap Screw, Hex Hd. 1/4-20 x 1/2 Plated, Grade 5
(Superseded to 700822)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$1.99

$

In Stock, Qty 10

0

49

Lawn-Boy 70231

Cap Screw, Hex Hd. 3/8-16 x 7/8 Plated, Grade 5
(Superseded to 323-5)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$1.49

$

Usually ships in 3-6 days

0

50

Lawn-Boy 70242

Cap Screw, Hex Hd. 3/8-16 x 1-1/4 Plated, Grade 5
(Superseded to 146207)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

51

Lawn-Boy 71284

Cap Screw, Hex 7/16-20 x 2-1/4 Plated, Grade 5
(Superseded to 3212-9)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$12.99

$

In Stock, only 1 left!

0

52

Lawn-Boy 4384

Tine Bolt
(Superseded to 703449)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 12917

Inner Tine Hub Assembly
(Superseded to 741492)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 12919

Outer Tine Hube Assembly
(Superseded to 741491)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$344.99

$

Usually ships in 3-6 days

0

55

Lawn-Boy 3747

Tine-R.H.
(Superseded to 703257)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

56

Lawn-Boy 3748

Tine-L.H.
(Superseded to 703258)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 1085

Inner Felt Seal
(Superseded to 83-2770)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 1056

Intermediate Felt Seal
(Superseded to 701778)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$7.49

$

In Stock, only 2 left!

0

59

Lawn-Boy 70475

Bolt Carriage 1/2-13 x 5" Plated
(Superseded to 703442)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

60

Lawn-Boy 70498

Setscrew, Hex Socket Hd. Cup Pt. 5/16-18 X 5/16
(Superseded to 700029)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$1.99

$

Usually ships in 3-6 days

0

61

Lawn-Boy 70560

Nut, Hex 7/16-20 Plated
(Superseded to 700827)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

62

Lawn-Boy 70563

Nut, Hex 1/2-13 Plated
(Superseded to 701067)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

63

Lawn-Boy 70585

Nut, Hex Jam 5/8-11
(Superseded to 702806)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

64

Lawn-Boy 70652

Washer, Spring Lock 7/16 Plated
(Superseded to 701141)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

65

Lawn-Boy 70941

Nut, Hex Self Locking 5/8-11
(Superseded to 703452)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

66

Lawn-Boy 70643

Washer, Spring Lock 1/4 Plated
(Superseded to 3253-3)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$0.99

$

In Stock, Qty 20+

0

67

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$1.99

$

Usually ships in 3-6 days

0

68

Lawn-Boy 70655

Washer, Spring Lock 1/2 Plated
(Superseded to 701068)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

69

Lawn-Boy 70687

Washer, Flat SAE 3/8 Plated
(Superseded to 146304)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$1.99

$

Usually ships in 3-6 days

0

70

Lawn-Boy 70705

Washer, Flat 7/16 Plated
(Superseded to 703143)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

71

Lawn-Boy 70707

Washer, Flat 1/2 Plated
(Superseded to 700049)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

72

Lawn-Boy 70711

Washer, Flat 5/8 Plated
(Superseded to 702104)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available

73

Lawn-Boy 70721

Pin, Cotter 1/8 x 3/4 Plated
(Superseded to 3272-10)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$1.49

$

In Stock, Qty 20+

0

74

Lawn-Boy 70810

Key, Woodruff 3/16 x 5/8
(Superseded to 3257-32)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$2.99

$

In Stock, Qty 20+

0

75

Lawn-Boy 70828

Key, Hypro 1/4 x 7/8 Heat Treated
(Superseded to 701514)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$5.49

$

In Stock, only 4 left!

0

76

Lawn-Boy 229434

Guard Assembly
(Superseded to 741493)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

77

Lawn-Boy 200459

Hinge
(Superseded to 701682)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

78

Lawn-Boy 229433

Hinge Pin
(Superseded to 703437)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

79

Lawn-Boy 70441

Bolt, Carriage 5/16-18 x 3/4 Plated.
(Superseded to 700030)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$1.99

$

In Stock, only 1 left!

0

80

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$3.99

$

In Stock, Qty 6

0

81

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately. Common Hardware. May Be Purchased Locally.

$

$

Not available
