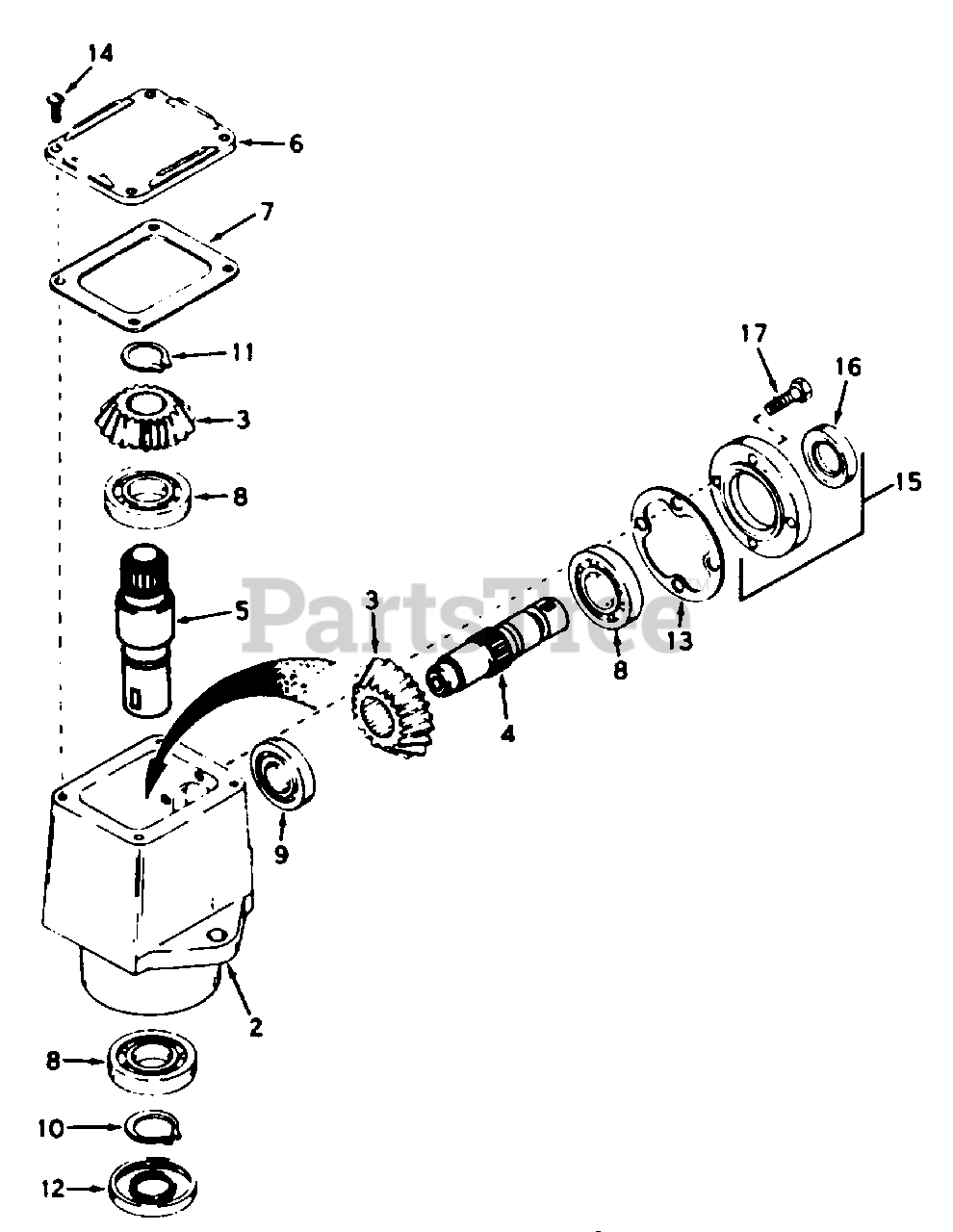

63664 - Lawn-Boy 40" Tiller Attachment (SN: J00000001 - J99999999) (1990) GEAR BOX PARTS AND PARTS LIST Parts Diagram

40" Tiller Attachment

GEAR BOX PARTS AND PARTS LIST Parts Diagram

  • Title

2

Lawn-Boy 770026

Housing, Right Angle Drive

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

3

Lawn-Boy 778046

Gear, Miter

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

4

Lawn-Boy 776062

Shaft, Input

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

5

Lawn-Boy 776061

Shaft, Output

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

6

Lawn-Boy 772035

Cover, Left-Hand

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

7

Lawn-Boy 788028

Gasket, Cover

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

8

Lawn-Boy 780034

Bearing, Ball

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

9

Lawn-Boy 780024

Bearing, Ball

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

10

Lawn-Boy 788019

Ring, Snap

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

11

Lawn-Boy 788018

Ring, Snap

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

12

Lawn-Boy 788029

Seal, Oil

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

13

Lawn-Boy 788030

Gasket, Cap

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

14

Lawn-Boy 792025

Screw, Rd. Hd., Self Tap,10-24 x 1/2

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

15

Lawn-Boy 786029

Cap and Seal Assembly, Retainer (lncludes Nos.16 & 17)

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

16

Lawn-Boy 788031

Seal, Oil

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

17

Lawn-Boy 792043

Screw, Hex Hd., 1/4-10 x 1

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable

Lawn-Boy 794011

Complete Assembly-Tecumseh Model 1488-P91

Note: NOTE: Order replacement parts from the Tecumseh Products Service Center.

$

$

Currently unavailable
