63676 C - Lawn-Boy Electric Lift (SN: J00000001 - J99999999) (1990) ELECTRIC LIFT KIT PARTS AND PARTS LIST Parts Diagram

Electric Lift

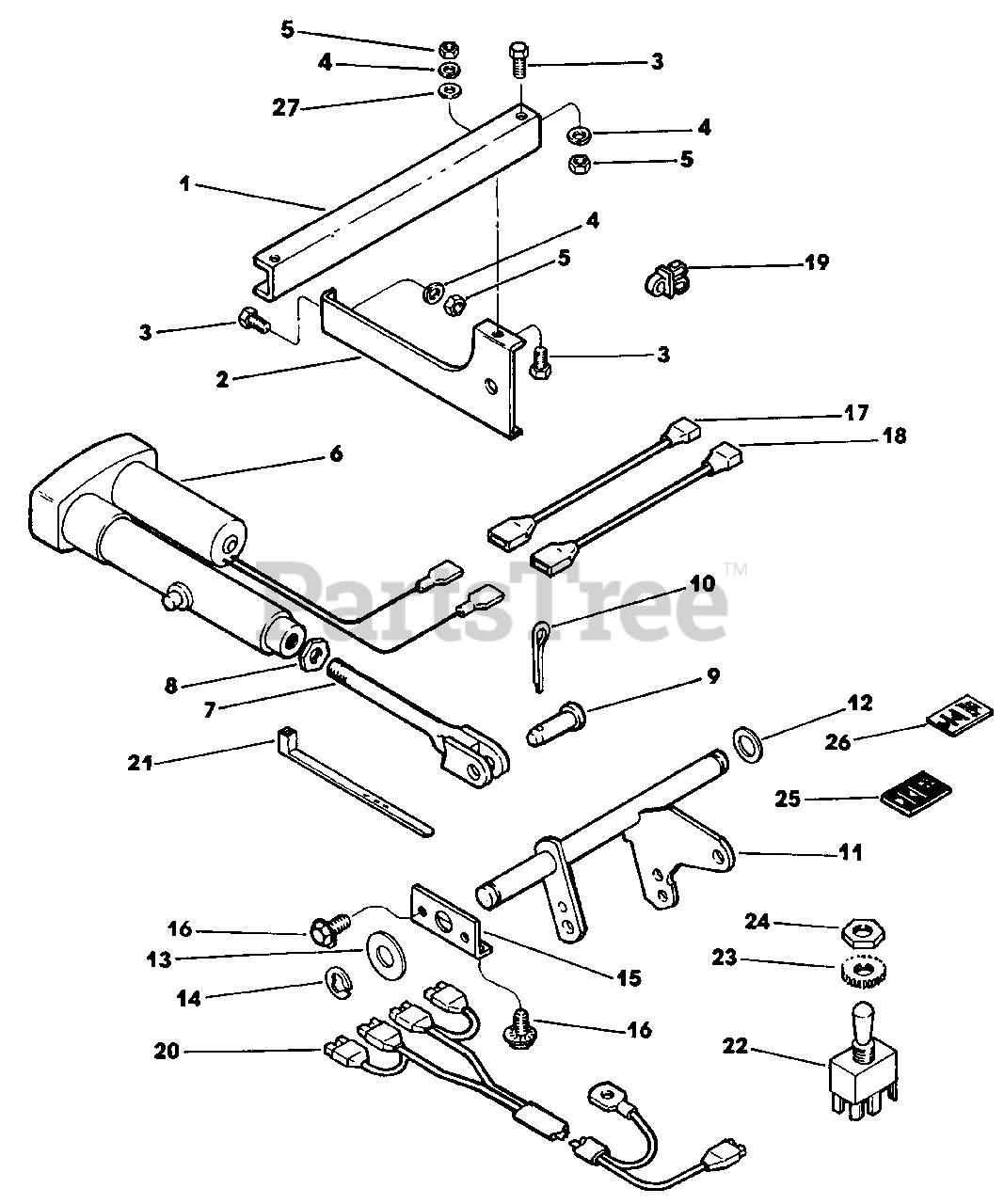

ELECTRIC LIFT KIT PARTS AND PARTS LIST Parts Diagram

  • Title

1

Lawn-Boy 703191

Hanger

$

$

Not available

2

Lawn-Boy 703192

Support

$

$

Not available

3

Lawn-Boy 146209

Cap Screw, Hex Hd

$1.99

$

Usually ships in 3-6 days

0

4

Lawn-Boy 146258

Washer, Spring Lock
(Superseded to 3253-4)

$0.99

$

In Stock, Qty 20+

0

5

Lawn-Boy 142259

Nut, Hex

$

$

Currently unavailable

6

Lawn-Boy 741194

Power Lift Assembly

$

$

Not available

7

Lawn-Boy 741430

Rod Assembly

$

$

Not available

8

Lawn-Boy 703183

Nut, Hex

$

$

Not available

9

Lawn-Boy 703182

Clevis Pin

$

$

Not available

10

Lawn-Boy 146374

Pin, Cotter
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0

11

Lawn-Boy 741195

Lift Shaft Assembly

$242.99

$

Usually ships in 3-6 days

0

12

Lawn-Boy 700165

Washer

$3.49

$

Usually ships in 3-6 days

0

13

Lawn-Boy 700120

Washer

$2.99

$

Usually ships in 3-6 days

0

14

Lawn-Boy 703185

"E" Ring

$

$

Not available

15

Lawn-Boy 700955

Lift Bracket

$

$

Not available

16

Lawn-Boy 700057

Thread Forming Screw, Hex Hd

$2.49

$

In Stock, Qty 20+

0

17

Lawn-Boy 741424

Wire, Yellow-37"

$

$

Not available

18

Lawn-Boy 741425

Wire, Red-37"

$

$

Not available

19

Lawn-Boy 703188

Wire Clip

$

$

Not available

20

Lawn-Boy 741426

Wiring Harness

$

$

Not available

21

Lawn-Boy 147198

Cable Tie

$

$

Not available

22

Lawn-Boy 741421

DPDT Switch

$

$

Not available

23

Lawn-Boy 703184

Knurled Nut

$

$

Not available

24

Lawn-Boy 701929

Hex Nut

$

$

Not available

25

Lawn-Boy 703186

Decal-Electric Lift (White On Black)

$

$

Not available

26

Lawn-Boy 707687

Electric Lift (Black On Silver)
(Superseded to 703186)

$

$

Not available

27

Lawn-Boy 147368

Washer, Flat

$

$

Currently unavailable
