63676 - Lawn-Boy Electric Lift (SN: 800000001 - 899999999) (1988) ELECTRIC LIFT KIT PARTS MODEL 63676 Parts Diagram

Electric Lift

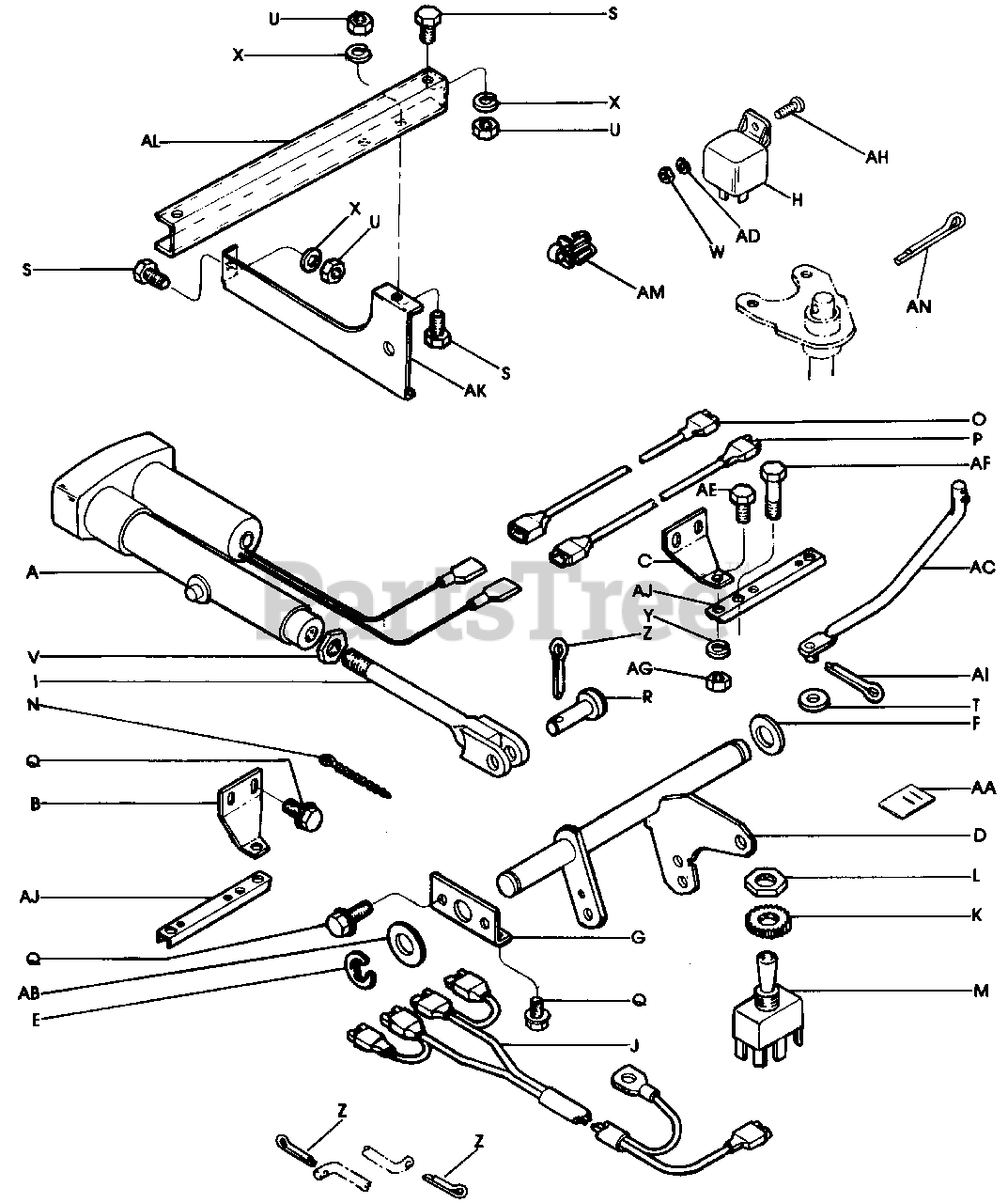

ELECTRIC LIFT KIT PARTS MODEL 63676 Parts Diagram

  • Title

A

Lawn-Boy 200083

Power Lift Assembly
(Superseded to 741194)

$

$

Not available

B

Lawn-Boy 229388

Brace-R.H.

$

$

Currently unavailable

C

Lawn-Boy 229389

Brace-L.H.

$

$

Currently unavailable

D

Lawn-Boy 229393

Lift Shaft Assembly
(Superseded to 741195)

$242.99

$

Usually ships in 3-6 days

0

E

Lawn-Boy 214114

"E" Ring
(Superseded to 703185)

$

$

Not available

F

Lawn-Boy 33590

Washer
(Superseded to 700165)

$3.49

$

Usually ships in 3-6 days

0

G

Lawn-Boy 212679

Bracket-Lift
(Superseded to 700955)

$

$

Not available

H

Lawn-Boy 238421

Relay
(Superseded to 741423)

$

$

Not available

I

Lawn-Boy 229394

Rod Assembly
(Superseded to 741430)

$

$

Not available

J

Lawn-Boy 200081

Wiring Harness
(Superseded to 741426)

$

$

Not available

K

Lawn-Boy 200106

Knurled Nut

$

$

Not available

L

Lawn-Boy 200107

Hex Nut

$

$

Not available

M

Lawn-Boy 200084

DPDT Switch
(Superseded to 742790)

$316.99

$

Usually ships in 3-6 days

0

N

Lawn-Boy 32268

Nylon Beaded Tie

$

$

Not available

O

Lawn-Boy 200367

Wire-Yellow-37"
(Superseded to 741424)

$

$

Not available

P

Lawn-Boy 200368

Wire-Red-37"
(Superseded to 741425)

$

$

Not available

Q

Lawn-Boy 213297

Hex Hd. Thread Forming Screw 5/16-18 x 1/2
(Superseded to 700057)

$2.49

$

In Stock, Qty 20+

0

R

Lawn-Boy 11857

Clevis Pin
(Superseded to 703182)

$

$

Not available

S

Lawn-Boy 70143

Cap Screw, Hex Hd. 5/16-18 x 3/4 Plated, Grade 5
(Superseded to 146209)

Note: Common Hardware. May Be Purchased Locally.

$1.99

$

Usually ships in 3-6 days

0

T

Lawn-Boy 70685

Washer, Flat SAE 5/16 Plated
(Superseded to 3256-23)

Note: Common Hardware. May Be Purchased Locally.

$2.49

$

In Stock, Qty 20+

0

U

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

V

Lawn-Boy 70107

Nut, Hex 5/8-18 Plated
(Superseded to 703183)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

W

Lawn-Boy 70540

Nut, Hex #10-24 Plated
(Superseded to 146510)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

X

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

Note: Common Hardware. May Be Purchased Locally.

$3.99

$

In Stock, Qty 6

0

Y

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

Note: Common Hardware. May Be Purchased Locally.

$1.99

$

Usually ships in 3-6 days

0

Z

Lawn-Boy 70721

Pin, Cotter 1/8 x 3/4 Plated
(Superseded to 3272-10)

Note: Common Hardware. May Be Purchased Locally.

$1.49

$

In Stock, Qty 20+

0

AA

Lawn-Boy 233128

Sticker-Electric Lift
(Superseded to 703186)

$

$

Not available

AB

Lawn-Boy 10515

Washer

$

$

Currently unavailable

AC

Lawn-Boy 229385

Speed Control
(Superseded to 741590)

$202.99

$

Usually ships in 3-6 days

0

AD

Lawn-Boy 70672

Washer. External Tooth Lock #10 Plated
(Superseded to 147119)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available

AE

Lawn-Boy 70226

Cap Screw, Hex Hd. 3/8-16 x 3/4 Plated, Grade 5
(Superseded to 323-4)

Note: Common Hardware. May Be Purchased Locally.

$3.99

$

In Stock, Qty 19

0

AF

Lawn-Boy 70258

Cap Screw, Hex Hd. 3/8-16 x 2 Plated, Grade 5
(Superseded to 323-10)

Note: Common Hardware. May Be Purchased Locally.

$0.99

$

In Stock, Qty 20+

0

AG

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

Note: Common Hardware. May Be Purchased Locally.

$3.49

$

Usually ships in 3-6 days

0

AH

Lawn-Boy 70032

Machine Screw, Phillips Pan Hd. #10-24 x 1/2 Plated
(Superseded to 146509)

Note: Common Hardware. May Be Purchased Locally.

$1.99

$

Usually ships in 3-6 days

0

AI

Lawn-Boy 70741

Pin, Cotter 3/32 x 3/4 Plated
(Superseded to 3272-6)

Note: Common Hardware. May Be Purchased Locally.

$0.99

$

In Stock, Qty 20+

0

AJ

Lawn-Boy 238272

Support-Footrest
(Superseded to 700950)

$

$

Not available

AK

Lawn-Boy 238607

Support
(Superseded to 703192)

$

$

Not available

AL

Lawn-Boy 238608

Hanger
(Superseded to 703191)

$

$

Not available

AM

Lawn-Boy 35588

Wire Clip
(Superseded to 703188)

$

$

Not available

AN

Lawn-Boy 70724

Pin, Cotter 1/8 x 1-1/8 Plated
(Superseded to 701582)

Note: Common Hardware. May Be Purchased Locally.

$

$

Not available
