63680 - Lawn-Boy 42" Snow Thrower Attachment (SN: 800000001 - 899999999) (1988) COLLECTOR HOUSING PARTS LIST-42" SNOWTHROWER MODEL 63680 Parts Diagram

42" Snow Thrower Attachment

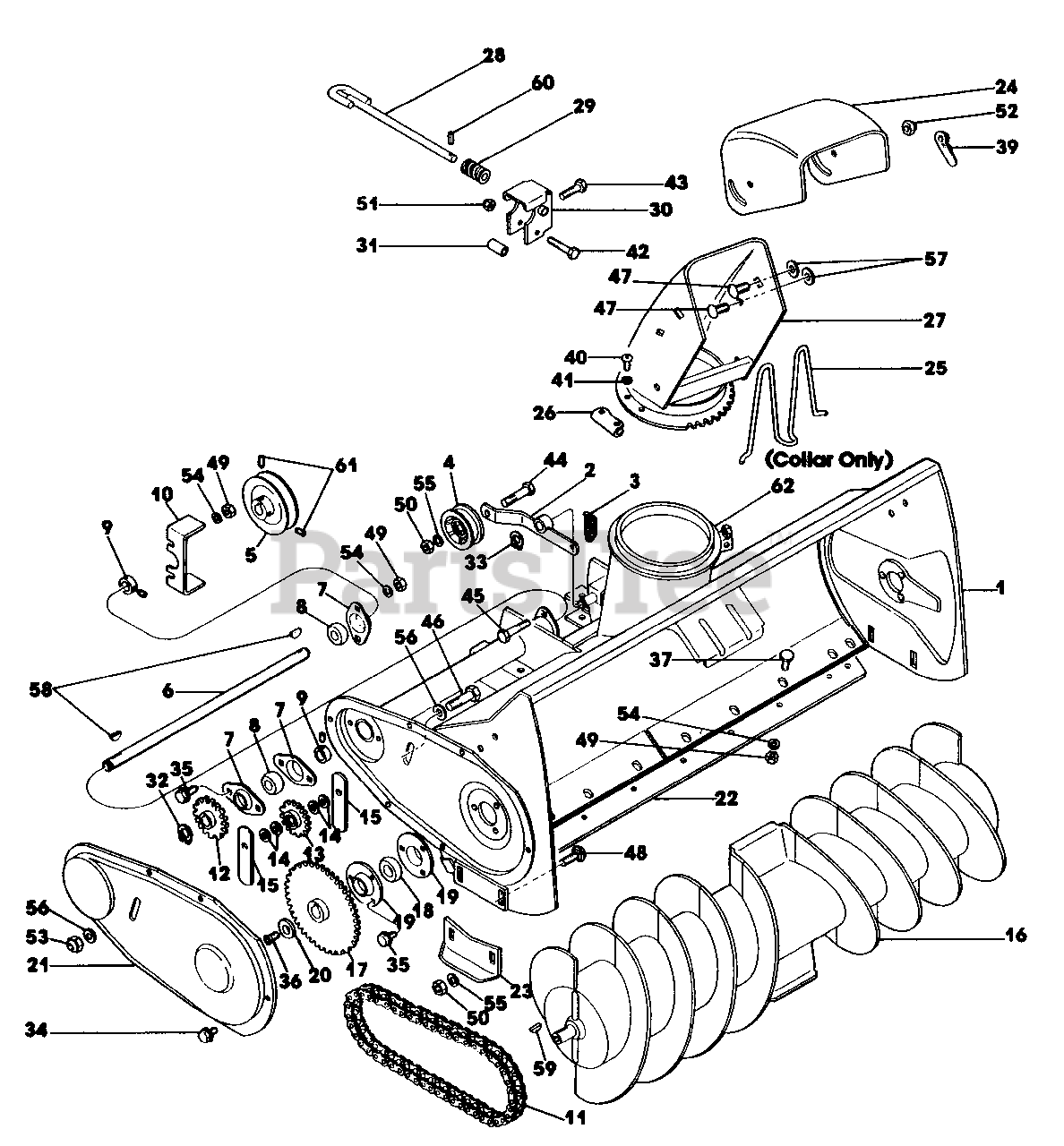

COLLECTOR HOUSING PARTS LIST-42" SNOWTHROWER MODEL 63680 Parts Diagram

  • Title

1

Lawn-Boy 237413

Collector Housing Assembly w/Decals
(Superseded to 741116)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 37704

Idler Arm Assembly
(Superseded to 741136)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 26372

Spring Idler
(Superseded to 703101)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 237253

Idler Pulley
(Superseded to 702977)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 37711

Pulley
(Superseded to 702959)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 236917

Output Shaft
(Superseded to 703100)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 12538

Flangette Stamping
(Superseded to 700083)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$5.49

$

Usually ships in 3-6 days

0

8

Lawn-Boy 12539

Bearing
(Superseded to 700542)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 1426

Collar w/Setscrew
(Superseded to 701658)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$37.99

$

In Stock, only 1 left!

0

10

Lawn-Boy 37713

Belt Retainer
(Superseded to 703099)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 235782

Chain
(Superseded to 741028)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 37714

Sprocket Assembly
(Superseded to 741027)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 32739

Idler Sprocket
(Superseded to 702949)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 31434

Spacer
(Superseded to 702813)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

15

Lawn-Boy 32732

Strip
(Superseded to 702963)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

16

Lawn-Boy 32748

Collector Assembly
(Superseded to 741132)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 32647

Sprocket Assembly
(Superseded to 741024)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 14824

Bearing
(Superseded to 702940)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

19

Lawn-Boy 14826

Flangette
(Superseded to 702941)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

20

Lawn-Boy 32737

Washer
(Superseded to 702948)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 32675

Drive Cover
(Superseded to 702946)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 32730

Scraper Blade
(Superseded to 703097)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 32727

Skid
(Superseded to 702947)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$51.99

$

Usually ships in 3-6 days

0

24

Lawn-Boy 239532

Deflector & Decal Assembly
(Superseded to 740995)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 13008

Discharge Guard
(Superseded to 702894)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

26

Lawn-Boy 32707

Retainer
(Superseded to 702896)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$21.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 246010

Discharge Guide Assembly
(Superseded to 741000)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 32637

Worm Shaft Assembly
(Superseded to 741036)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 24280

Worm Gear
(Superseded to 700058)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

30

Lawn-Boy 32729

Worm Support
(Superseded to 700086)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

31

Lawn-Boy 27001

Spacer-Worm Support
(Superseded to 700052)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

32

Lawn-Boy 1042

Snap Ring
(Superseded to 700097)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, only 1 left!

0

33

Lawn-Boy 3917

Snap Ring
(Superseded to 700091)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 18073

Lock Screw 5/16-18 x 1/2
(Superseded to 112-0167)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$6.49

$

In Stock, Qty 6

0

35

Lawn-Boy 13700

Lock Screw 5/16-18 x 1/2
(Superseded to 702938)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 17133

Machine Screw, Hex Socket Flat Hd. 5/16-18 x 3/4
(Superseded to 702942)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 10888

Wafer Hd. Bolt 5/16-18 x 3/4
(Superseded to 146511)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 27888

Wing Nut
(Superseded to 702895)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

40

Lawn-Boy 32740

Self Tapping Screw #6-32 x 3/8
(Superseded to 702897)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

41

Lawn-Boy 34091

Lock Washer #6
(Superseded to 702898)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

42

Lawn-Boy 70115

Cap Screw, Hex Hd. 5/16-20 x 2 Plated, Grade 5
(Superseded to 321-4)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

43

Lawn-Boy 70164

Cap Screw, Hex Hd. 5/16-18 x 1-1/2 Plated, Grade 5
(Superseded to 146210)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

44

Lawn-Boy 70258

Cap Screw, Hex Hd. 3/8-16 x 2 Plated, Grade 5
(Superseded to 323-10)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

45

Lawn-Boy 70154

Cap Screw, Hex Hd. 5/16-18 x 1-1/8 Plated, Grade 5
(Superseded to 146505)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

46

Lawn-Boy 71194

Cap Screw, Hex Hd. 1/2-13 x 2 Plated, Grade 5
(Superseded to 702966)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

47

Lawn-Boy 70449

Bolt Carriage 3/8-16 x 3/4 Plated
(Superseded to 3231-1)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.49

$

In Stock, Qty 20+

0

48

Lawn-Boy 70451

Bolt, Carriage 3/8-16 x 1 Plated
(Superseded to 700685)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

49

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

50

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

51

Lawn-Boy 70628

Nut, Hex Cone Lock 1/4-20 Plated
(Superseded to 146375)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

52

Lawn-Boy 70631

Nut, Hex Cone Lock 3/8-16 Plated
(Superseded to 700032)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

53

Lawn-Boy 70633

Nut, Hex Cone Lock 1/2-13 Plated
(Superseded to 700687)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

54

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, Qty 6

0

55

Lawn-Boy 70649

Washer, Spring Lock 3/8 Plated
(Superseded to 146260)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

56

Lawn-Boy 70691

Washer, Flat SAE 1/2 Plated
(Superseded to 146204)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

57

Lawn-Boy 70707

Washer, Flat 1/2 Plated
(Superseded to 700049)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

58

Lawn-Boy 70812

Key, Woodruff 3/16 x 3/4
(Superseded to 3257-5)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$5.49

$

In Stock, Qty 20+

0

59

Lawn-Boy 70814

Key, Woodruff 1/4 x 3/4
(Superseded to 702965)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

60

Lawn-Boy 70750

Pin, Roll 1/8 x 3/4 Plated
(Superseded to 700213)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

61

Lawn-Boy 70498

Set Screw, Hex Socket Hd. Cup Pt. 5/16-18 x 5/16 Plated
(Superseded to 700029)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

62

Lawn-Boy 32682

Chute Collar
(Superseded to 702871)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available
