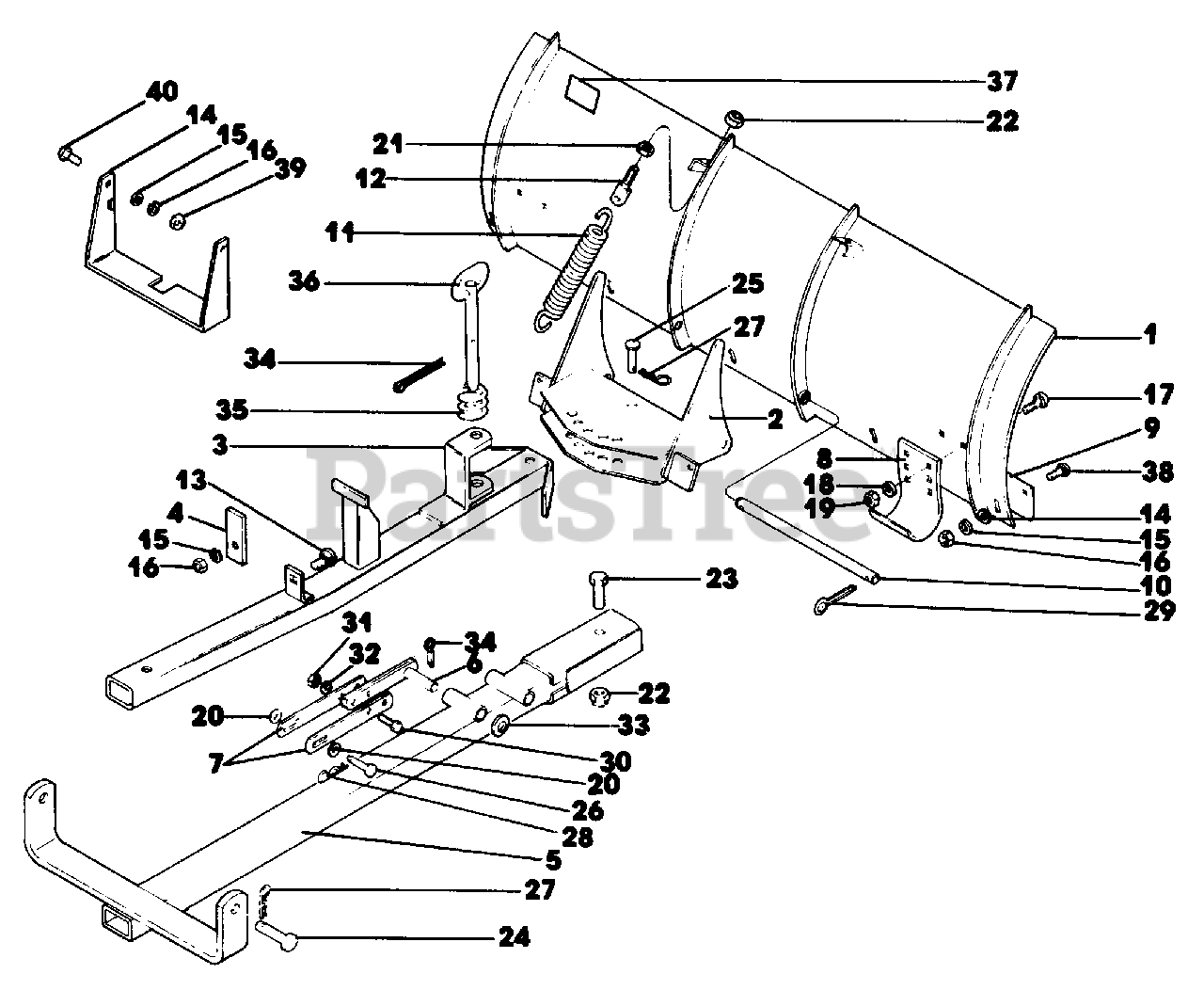

63694 - Lawn-Boy 48" Blade (SN: 800000001 - 899999999) (1988) BLADE PARTS AND PARTS LIST-48" DOZER BLADE MODEL 63694 Parts Diagram

48" Blade

BLADE PARTS AND PARTS LIST-48" DOZER BLADE MODEL 63694 Parts Diagram

  • Title

1

Lawn-Boy 234551

Dozer Blade Assembly w/Decal
(Superseded to 740137)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

2

Lawn-Boy 234317

Trip Plate Assembly
(Superseded to 740122)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

3

Lawn-Boy 240726

Front Frame Assembly
(Superseded to 740113)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

4

Lawn-Boy 37369

Frame Stop
(Superseded to 700605)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

5

Lawn-Boy 234321

Rear Frame Assembly
(Superseded to 740118)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

6

Lawn-Boy 37992

Lift Link Assembly
(Superseded to 740119)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

7

Lawn-Boy 37996

Reversing Link
(Superseded to 700654)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

8

Lawn-Boy 37359

Shoe
(Superseded to 700669)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

9

Lawn-Boy 24872

Scraper Blade
(Superseded to 700668)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$526.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 24871

Trip Pin
(Superseded to 700666)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

11

Lawn-Boy 24873

Spring
(Superseded to 700667)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

12

Lawn-Boy 24874

Spring Adjuster Bolt
(Superseded to 700665)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

13

Lawn-Boy 10888

Bolt, Wafer Hd. Short Neck
(Superseded to 146511)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

14

Lawn-Boy 70685

Washer, Flat SAE 5/16 Plated
(Superseded to 3256-23)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$2.49

$

In Stock, Qty 20+

0

15

Lawn-Boy 70646

Washer, Spring Lock 5/16 Plated
(Superseded to 325-34)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.99

$

In Stock, Qty 6

0

16

Lawn-Boy 70549

Nut, Hex 5/16-18 Plated
(Superseded to 146259)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

17

Lawn-Boy 70451

Bolt, Carriage 3/8-16 x 1" Plated
(Superseded to 700685)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

18

Lawn-Boy 70649

Washer, Lock Plated
(Superseded to 146260)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

19

Lawn-Boy 70553

Nut, Hex 3/8-16 Plated
(Superseded to 146211)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$3.49

$

Usually ships in 3-6 days

0

20

Lawn-Boy 70689

Washer, Flat SAE 7/16 Plated
(Superseded to 700337)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

21

Lawn-Boy 70581

Nut, Hex Jam 1/2-13 Plated
(Superseded to 146203)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

22

Lawn-Boy 70633

Nut, Hex Cone Lock 1/2-13 Plated
(Superseded to 700687)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

23

Lawn-Boy 71204

Cap Screw, Hex Hd. 1/2-13 x 2-1/2" Plated, Grade 5
(Superseded to 700688)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

24

Lawn-Boy 12643

Clevis Pin
(Superseded to 700598)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

25

Lawn-Boy 31498

Clevis Pin
(Superseded to 700602)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$20.99

$

Usually ships in 3-6 days

0

26

Lawn-Boy 1268

Clevis Pin
(Superseded to 700597)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

27

Lawn-Boy 2776

Spring Clip
(Superseded to 700599)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

28

Lawn-Boy 1063

Spring Clip
(Superseded to 146428)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

29

Lawn-Boy 70734

Pin, Cotter 3/16 x 1-1/2 Plated
(Superseded to 3272-23)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

Usually ships in 3-6 days

0

30

Lawn-Boy 71184

Cap Screw, Hex Hd. 7/16-14 x 1-1/2" Plated, Grade 5

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Currently unavailable

31

Lawn-Boy 70558

Nut, Hex 7/16-14 Plated
(Superseded to 702613)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0

32

Lawn-Boy 70652

Washer, Lock 7/16 Plated
(Superseded to 701141)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

33

Lawn-Boy 70696

Washer, Flat SAE 3/4 Plated
(Superseded to 700683)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

34

Lawn-Boy 70968

Pin, Cotter 1-1/4" Plated
(Superseded to 3272-12)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$0.99

$

In Stock, Qty 20+

0

35

Lawn-Boy 12058

Spring
(Superseded to 700603)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

36

Lawn-Boy 234323

Hitch Pin Assembly
(Superseded to 740110)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

37

Lawn-Boy 234512

Safety Decal
(Superseded to 700664)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

38

Lawn-Boy 70443

Bolt Carriage 5/16-18 x 1" Plated
(Superseded to 700684)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$

$

Not available

39

Lawn-Boy 241501

Stabilizer Saddle Assembly
(Superseded to 740111)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$372.99

$

Usually ships in 3-6 days

0

40

Lawn-Boy 70151

Cap Screw, Hex Hd. 5/16-18 x 1" Plated, Grade 5
(Superseded to 700342)

Note: NOTE: All assemblies that list decals have only operational, instructional and safety decals. Other kinds of decals must be ordered separately.

$1.99

$

Usually ships in 3-6 days

0
