63695 - Lawn-Boy 26" Tiller Attachment (SN: 800000001 - 899999999) (1988) CHAIN CASE PARTS AND PARTS LIST-26" TILLER MODEL 63695 Parts Diagram

26" Tiller Attachment

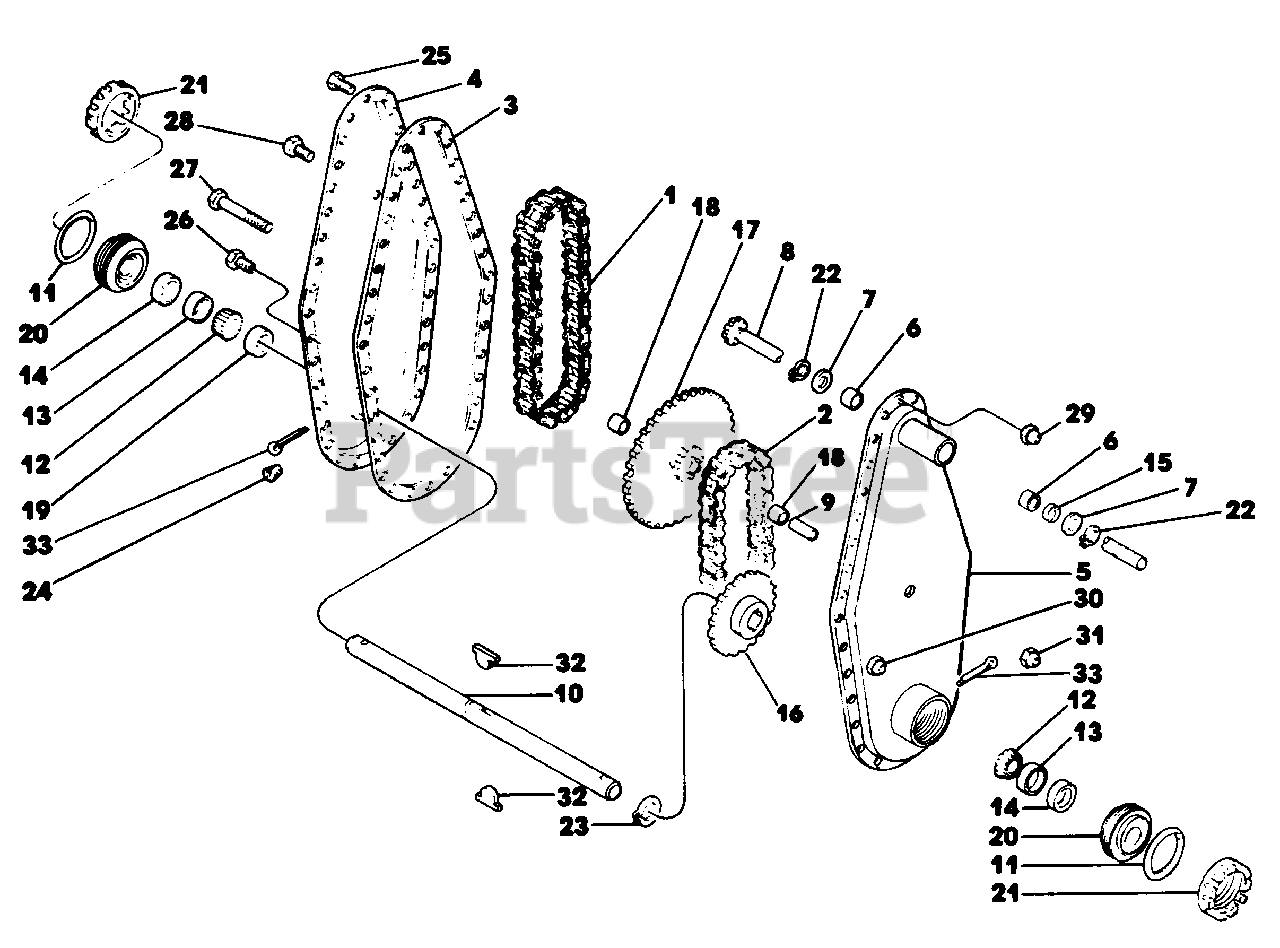

CHAIN CASE PARTS AND PARTS LIST-26" TILLER MODEL 63695 Parts Diagram

  • Title

1

Lawn-Boy 217550

Chain-Uppers
(Superseded to 706166)

$

$

Not available

2

Lawn-Boy 4065

Chain-Lower
(Superseded to 703277)

$

$

Not available

3

Lawn-Boy 4028

Gasket
(Superseded to 703268)

$

$

Not available

4

Lawn-Boy 34370

Chain Case Assembly

$

$

Not available

5

Lawn-Boy 34372

Chain Case Assembly L.H. w/Bearings
(Superseded to 742425)

$

$

Not available

6

Lawn-Boy 27084

Bearing
(Superseded to 704545)

$

$

Not available

7

Lawn-Boy 1230

Washer

$

$

Not available

8

Lawn-Boy 27608

Input Shaft

$

$

Not available

9

Lawn-Boy 4020

Idler Sleeve
(Superseded to 701837)

$102.99

$

Usually ships in 3-6 days

0

10

Lawn-Boy 34601

Tine Shaft

$

$

Not available

11

Lawn-Boy 1792

O-Rings
(Superseded to 703231)

$

$

Not available

12

Lawn-Boy 4298

Bearing Cone
(Superseded to 254-62)

$14.99

$

Usually ships in 3-6 days

0

13

Lawn-Boy 4299

Bearing Cone

$

$

Not available

14

Lawn-Boy 4332

Oil Seal
(Superseded to 703274)

$

$

Not available

15

Lawn-Boy 27085

Seal Power Shaft
(Superseded to 704546)

$

$

Not available

16

Lawn-Boy 34369

Sprocket

$

$

Not available

17

Lawn-Boy 217552

Idler Sprocket Assembly w/Bearing
(Superseded to 743279)

$

$

Not available

18

Lawn-Boy 209007

Bearing
(Superseded to 701466)

$

$

Not available

19

Lawn-Boy 12569

Spacer
(Superseded to 703806)

$

$

Not available

20

Lawn-Boy 12752

Bearing Adjustment
(Superseded to 703803)

$

$

Not available

21

Lawn-Boy 1189

Adjustment Plug Lock Ring
(Superseded to 703215)

$

$

Not available

22

Lawn-Boy 1042

Snap Ring
(Superseded to 700097)

$1.49

$

In Stock, only 1 left!

0

23

Lawn-Boy 1762

Snap Ring
(Superseded to 32120-33)

$7.99

$

In Stock, Qty 20+

0

24

Lawn-Boy 27489

Pipe Plug

$

$

Not available

25

Lawn-Boy 70097

Cap Screw Hex Hd. 1/4-20 x 3/4 Plated, Grade 5
(Superseded to 321-4)

$1.49

$

In Stock, Qty 20+

0

26

Lawn-Boy 70143

Cap Screw Hex Hd. 5/16-18 x 3/4 Plated, Grade 5
(Superseded to 146209)

$1.99

$

Usually ships in 3-6 days

0

27

Lawn-Boy 70266

Cap Screw, Hex Hd. 3/8-16 x 2-1/2" Plated, Grade 5
(Superseded to 700141)

$

$

Not available

28

Lawn-Boy 71261

Cap Screw, Hex Hd. 1/2-20 x 3/4 Plated, Grade 5
(Superseded to 700846)

$

$

Not available

29

Lawn-Boy 70628

Nut, Hex Cone Lock 1/4-20 Plated
(Superseded to 146375)

$2.49

$

Usually ships in 3-6 days

0

30

Lawn-Boy 70629

Nut, Hex Cone Lock 5/16-18 Plated
(Superseded to 146501)

$1.99

$

In Stock, only 3 left!

0

31

Lawn-Boy 70631

Nut, Hex Cone Lock 3/8-16 Plated
(Superseded to 700032)

$

$

Not available

32

Lawn-Boy 70828

Key, Hypro 1/4 x 7/8 Grade 5
(Superseded to 701514)

$6.49

$

In Stock, only 3 left!

0

33

Lawn-Boy 70721

Pin, Cotter 1/8 x 3/4 Plated
(Superseded to 3272-10)

$1.49

$

In Stock, Qty 20+

0
